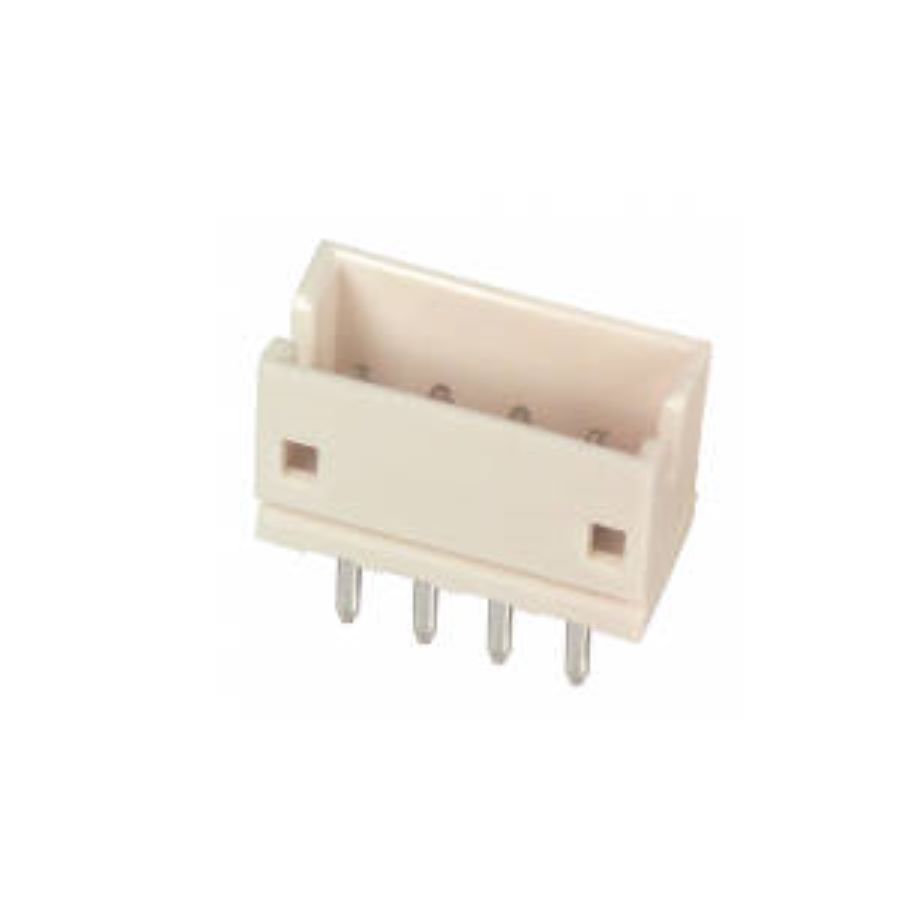

B4B-ZR(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B4B-ZR(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:1.5 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.5 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Number of Contacts | 4 |
| Mounting Style | Through Hole, Vertical |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| size width | 3.50 mm |
| size length | 7.50 mm |
| size height | 4.50 mm |
| voltage rating ac | 50 V |
| Housing Color | Natural |
| pin pitch | 1.50 mm |
| Mating Post Length | 2.4 mm |
| Termination Post Length | 2.69 mm |
Stock: 45868
Distributors
pcbx
pcbxUnit Price$0.09130
Ext.Price$0.09130
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09130 | $0.09130 |
| 10 | $0.08353 | $0.83530 |
| 50 | $0.07642 | $3.82100 |
| 100 | $0.07000 | $7.00000 |
| 500 | $0.06412 | $32.06000 |
| 1000 | $0.06094 | $60.94000 |
| 3000 | $0.05792 | $173.76000 |
