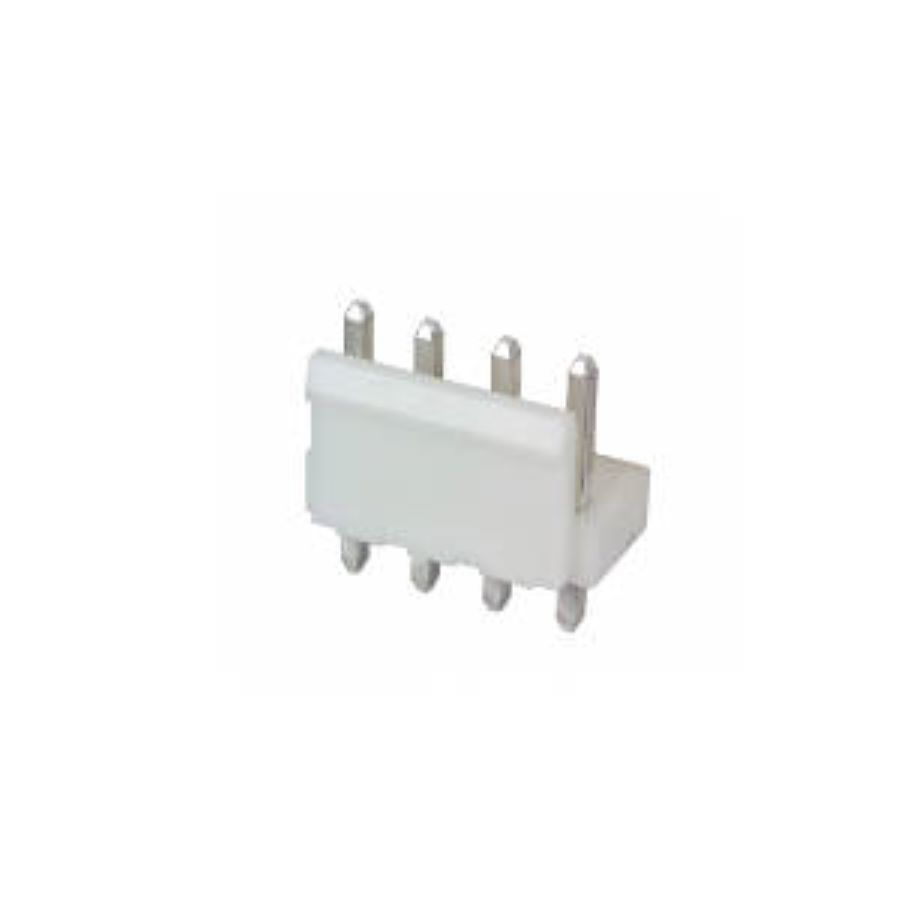

B4P-VH(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B4P-VH(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 7 A |
| Gender | Male |
| Number of Contacts | 4 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 8.50 mm |
| size length | 15.8 mm |
| size height | 9.40 mm |
| voltage rating ac | 250 V |
| Housing Color | Natural |
| pin pitch | 3.96 mm |
| Mating Post Length | 7.7 mm |
| Termination Post Length | 3.7 mm |
Stock: 144270
Distributors
pcbx
pcbxUnit Price$0.13166
Ext.Price$0.13166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13166 | $0.13166 |
| 10 | $0.11114 | $1.11140 |
| 50 | $0.10270 | $5.13500 |
| 100 | $0.09490 | $9.49000 |
| 500 | $0.08719 | $43.59500 |
| 1000 | $0.08011 | $80.11000 |
| 3000 | $0.07593 | $227.79000 |
| 5000 | $0.07197 | $359.85000 |
| 10000 | $0.06822 | $682.20000 |
