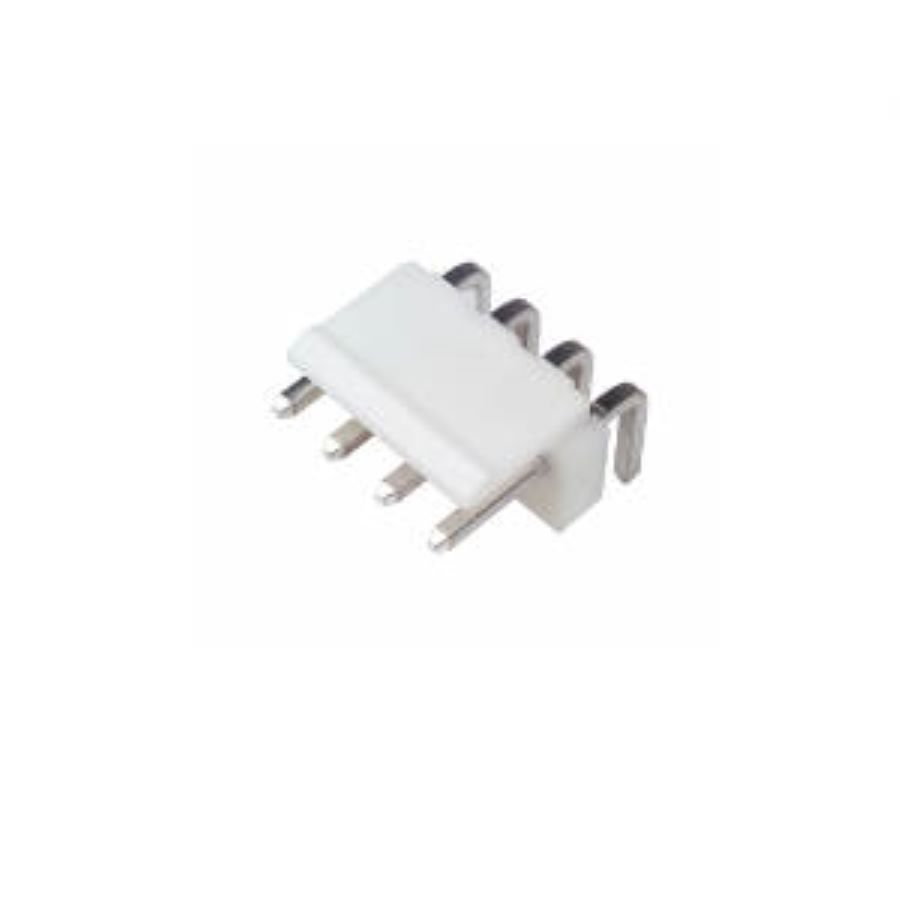

B4PS-VH(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B4PS-VH(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 15.78 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 14.9 mm |
| RoHS | Compliant |
| Lead Pitch | 3.96 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Working Voltage | 250 V |
| Orientation | Right Angle |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Ramp |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | White |
| Contact Mating Length | 7.6962 mm |
| Mating Post Length | 7.7 mm |
| Termination Post Length | 3.6 mm |
Stock: 1248
Distributors
pcbx
pcbxUnit Price$0.22042
Ext.Price$0.22042
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22042 | $0.22042 |
| 10 | $0.19855 | $1.98550 |
| 50 | $0.17885 | $8.94250 |
| 100 | $0.15838 | $15.83800 |
| 500 | $0.14026 | $70.13000 |
| 1000 | $0.13517 | $135.17000 |
| 3000 | $0.13027 | $390.81000 |
| 5000 | $0.12554 | $627.70000 |
