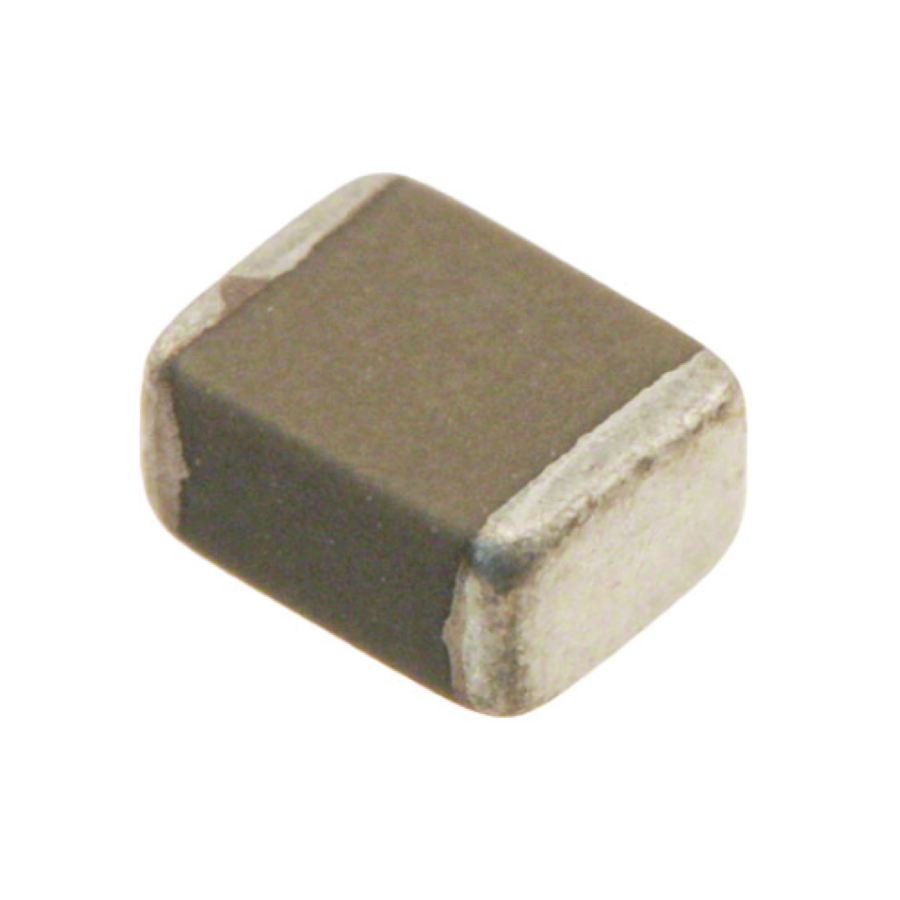

B59907A0120A062
Manufacturer:
EPCOS
Mfr.Part #:
B59907A0120A062
Datasheet:
Description:
PTC Resettable Fuses 1210(3225 Metric) SMD/SMT Hold Current:12 mA Voltage Rating:400 V Trip Current:22 mA
| Parameter | Value |
|---|---|
| Tolerance | 35 % |
| Length | 3.2 mm |
| Width | 2.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 1.5 kΩ |
| Height | 750 µm |
| Packaging | Reel |
| Voltage Rating | 400 V |
| Depth | 2.5 mm |
| Thickness | 1.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 400 V |
| Contact Plating | Tin |
| Current Rating | 12 mA |
| Max Current Rating | 12 mA |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Hold Current | 12 mA |
| Trip Current | 22 mA |
| Maximum Resistance 1 Hour (R1max) | 1.5 kΩ |
| Minimum Resistance Initial (Rmin) | 640 Ω |
Stock: 1857
Distributors
pcbx
pcbxUnit Price$0.70740
Ext.Price$0.70740
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70740 | $0.70740 |
| 10 | $0.54246 | $5.42460 |
| 25 | $0.49414 | $12.35350 |
| 50 | $0.45013 | $22.50650 |
| 100 | $0.41528 | $41.52800 |
| 300 | $0.37808 | $113.42400 |
| 500 | $0.34422 | $172.11000 |
| 1000 | $0.31731 | $317.31000 |
