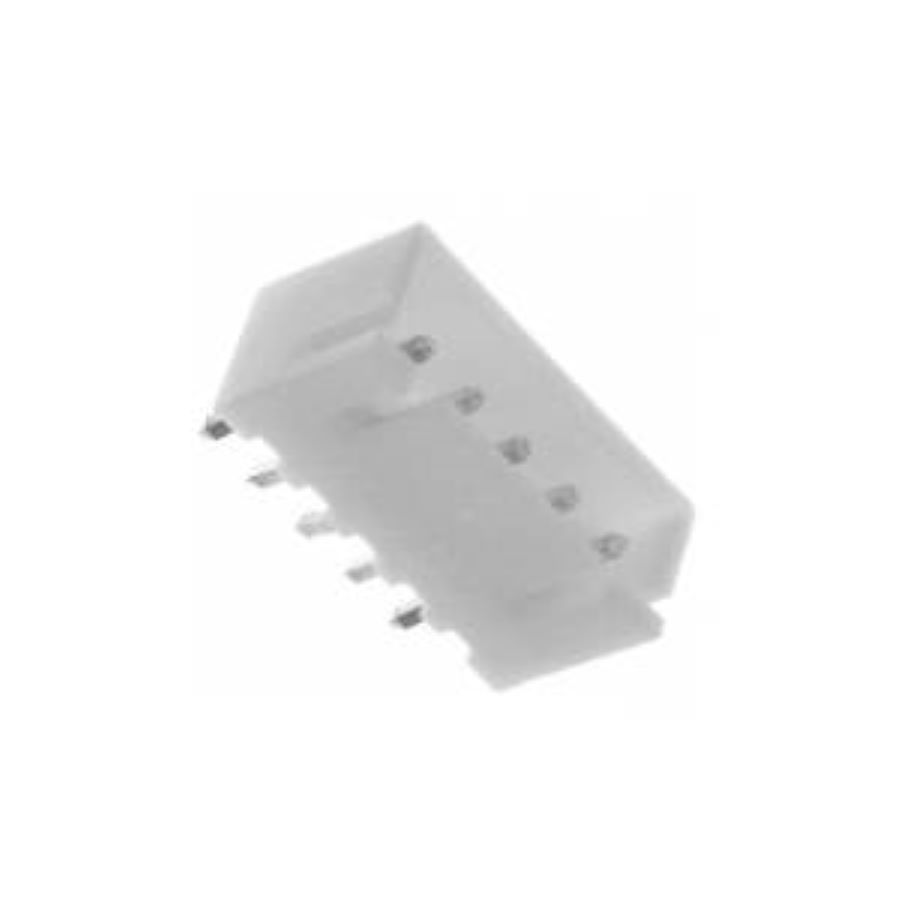

B5B-XH-AM(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B5B-XH-AM(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:5 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 14.9 mm |
| Termination | Press-Fit |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 5.75 mm |
| RoHS | Compliant |
| Contact Plating | Copper, Lead, Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Green |
| Gender | Male |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Detent |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | White |
Stock: 12984
Distributors
pcbx
pcbxUnit Price$0.10598
Ext.Price$0.10598
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10598 | $0.10598 |
| 10 | $0.09559 | $0.95590 |
| 50 | $0.08621 | $4.31050 |
| 100 | $0.07281 | $7.28100 |
| 500 | $0.06150 | $30.75000 |
| 1000 | $0.05853 | $58.53000 |
| 3000 | $0.05571 | $167.13000 |
| 5000 | $0.05302 | $265.10000 |
