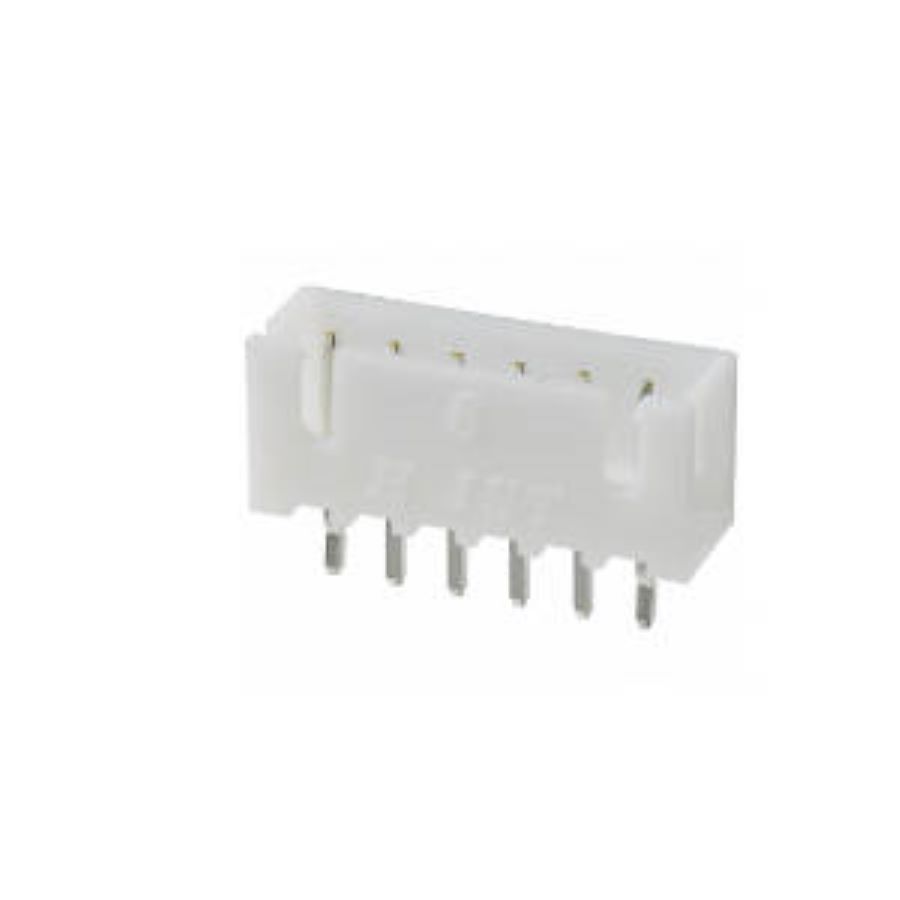

B6B-XH-A(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B6B-XH-A(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Gender | Male |
| Number of Contacts | 6 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| size width | 5.75 mm |
| size length | 17.4 mm |
| size height | 7.00 mm |
| voltage rating ac | 250 V |
| Housing Color | Natural |
| pin pitch | 2.50 mm |
| Termination Post Length | 3.4 mm |
Stock: 68756
Distributors
pcbx
pcbxUnit Price$0.07046
Ext.Price$0.07046
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07046 | $0.07046 |
| 10 | $0.06323 | $0.63230 |
| 50 | $0.05674 | $2.83700 |
| 100 | $0.05015 | $5.01500 |
| 500 | $0.04433 | $22.16500 |
| 1000 | $0.04328 | $43.28000 |
| 3000 | $0.04226 | $126.78000 |
| 5000 | $0.04126 | $206.30000 |
