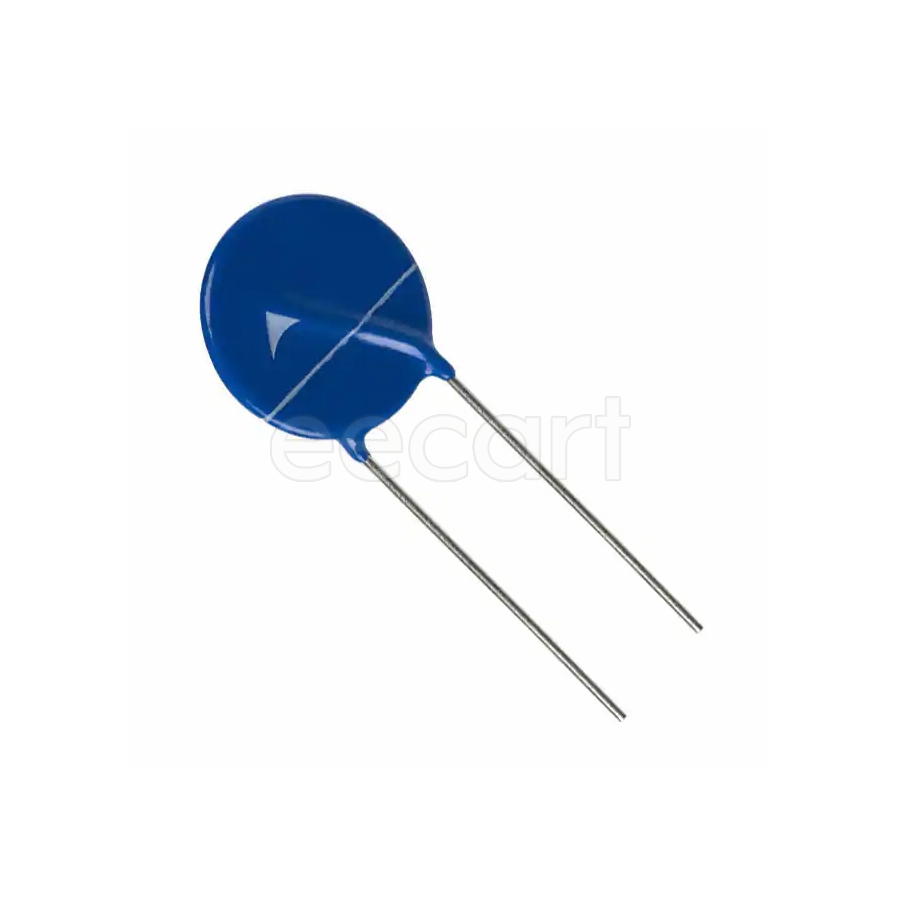

B72210S0300K551
Manufacturer:
EPCOS
Mfr.Part #:
B72210S0300K551
Datasheet:
Description:
Varistors Disc 10mm Through Hole 2.75 nF 4.4 J Voltage Rating (AC):30 V Voltage Rating (DC):38 V
| Parameter | Value |
|---|---|
| Capacitance | 2.75 nF |
| Voltage Rating (DC) | 38 V |
| Tolerance | 10 % |
| Termination | Radial |
| Diameter | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 30 V |
| Packaging | Reel |
| Depth | 4.4 mm |
| Lead Pitch | 7.5 mm |
| Weight | 2 g |
| Lead/Base Style | Radial |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 38 V |
| Clamping Voltage | 93 V |
| Varistor Voltage | 47 V |
| Max Voltage Rating (AC) | 30 V |
| Max Surge Current | 500 A |
| Clamping Current | 5 A |
| Voltage Tolerance | 10 % |
| Surge Energy Rating | 4.4 J |
| Peak Surge Current | 500 A |
| RoHS | Compliant |
Stock: 1619
Distributors
pcbx
pcbxUnit Price$0.23151
Ext.Price$0.23151
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23151 | $0.23151 |
| 10 | $0.16146 | $1.61460 |
| 50 | $0.14158 | $7.07900 |
| 100 | $0.12414 | $12.41400 |
| 500 | $0.10913 | $54.56500 |
| 1000 | $0.09706 | $97.06000 |
