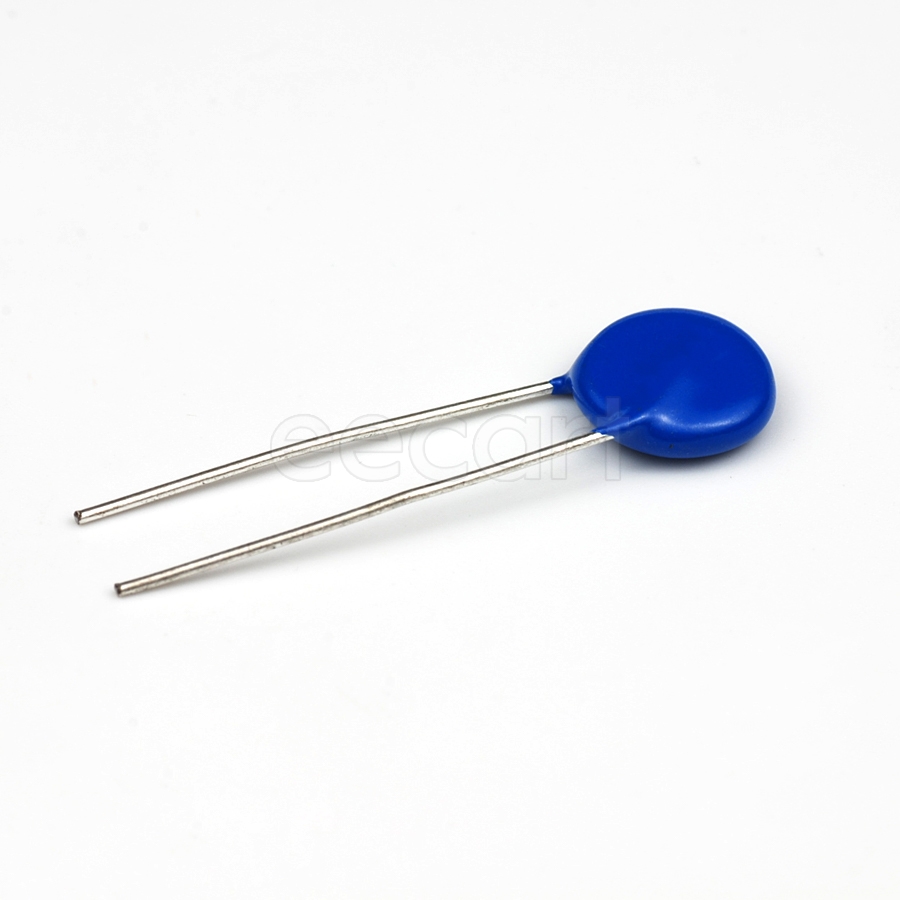

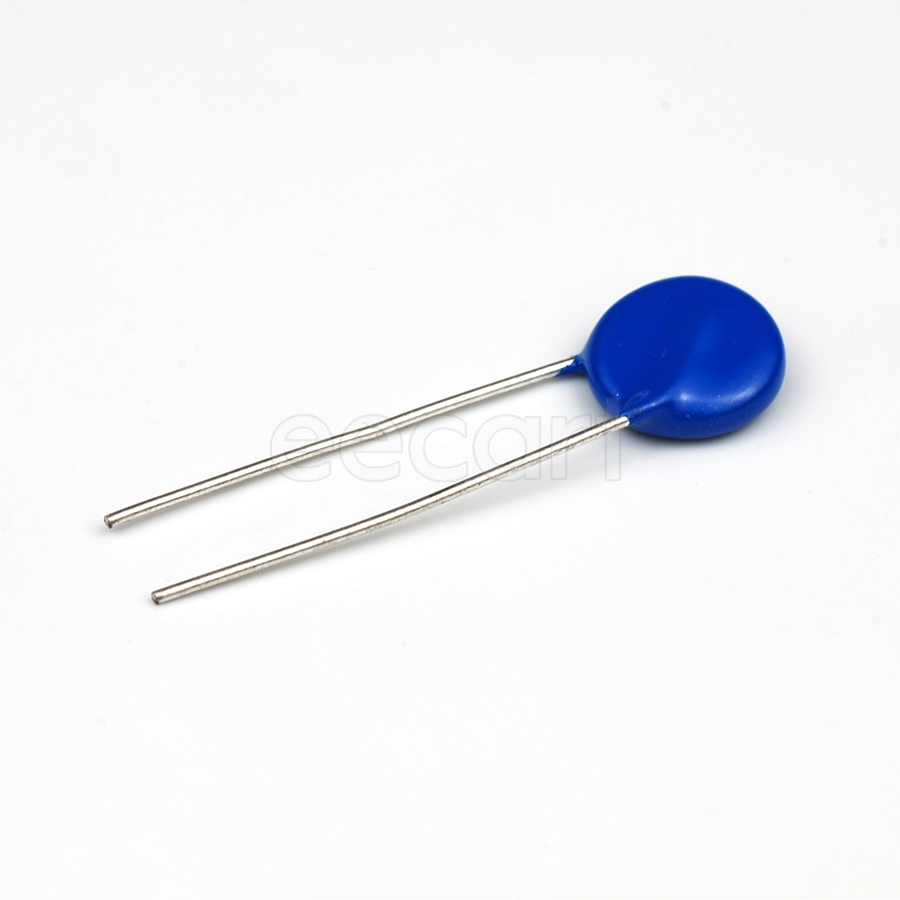

B72210S0400K101
Manufacturer:
EPCOS
Mfr.Part #:
B72210S0400K101
Datasheet:
Description:
Varistors 12.00mmL×4.80mmW×14.50mmH Through Hole 2.1 nF 6.4 J Voltage Rating (AC):40 V Voltage Rating (DC):56 V
| Parameter | Value |
|---|---|
| Capacitance | 2.1 nF |
| Voltage Rating (DC) | 56 V |
| Tolerance | 10 % |
| Length | 14.5 mm |
| Termination | Radial |
| Diameter | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 40 V |
| Packaging | Bulk |
| Depth | 4.8 mm |
| RoHS | Compliant |
| Lead Pitch | 7.5 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 30 mm |
| Lead/Base Style | Radial |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 56 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Clamping Voltage | 135 V |
| Varistor Voltage | 68 V |
| Max Voltage Rating (AC) | 40 V |
| Max Surge Current | 500 A |
| Clamping Current | 5 A |
| Voltage Tolerance | 10 % |
| Surge Energy Rating | 6.4 J |
| Peak Surge Current | 500 A |
Stock: 3162
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.10857 | $1.08570 |
| 50 | $0.10059 | $5.02950 |
| 100 | $0.09319 | $9.31900 |
| 500 | $0.08071 | $40.35500 |
| 1000 | $0.07883 | $78.83000 |
| 3000 | $0.07631 | $228.93000 |
| 5000 | $0.07387 | $369.35000 |
