B72210S2301K101
Manufacturer:
EPCOS
Mfr.Part #:
B72210S2301K101
Datasheet:
Description:

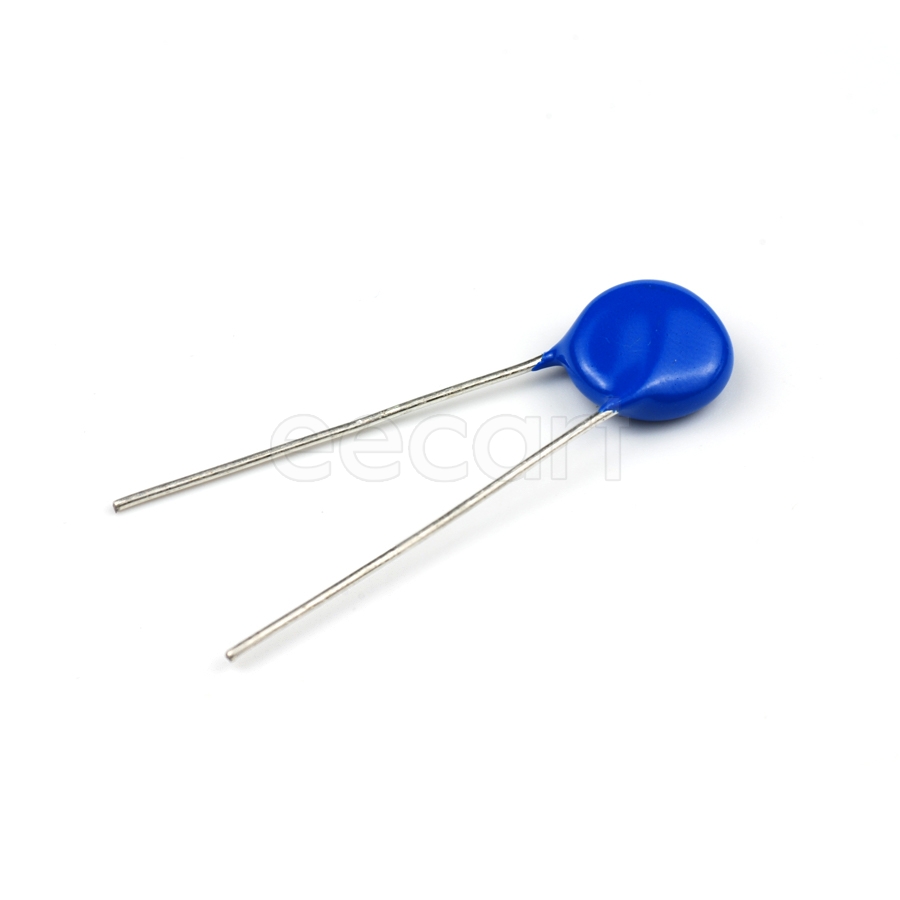

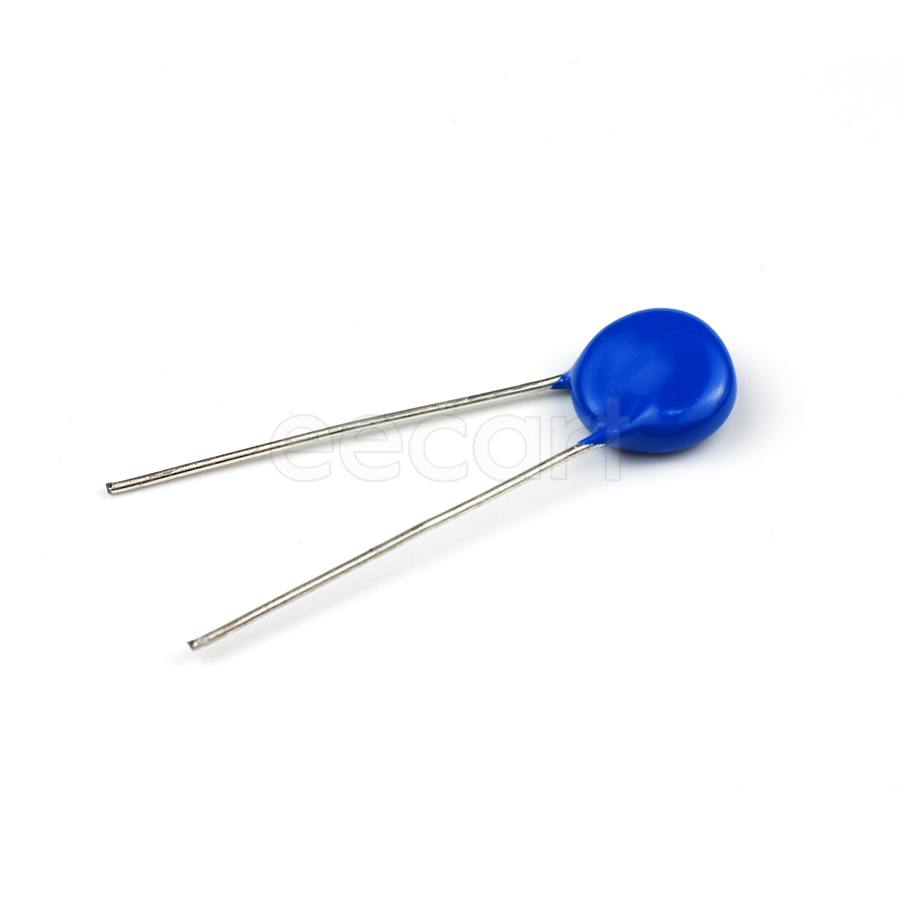

Varistors Disc 12mm Through Hole 180 pF 60 J Voltage Rating (AC):300 V Voltage Rating (DC):385 V
| Parameter | Value |
|---|---|
| Capacitance | 180 pF |
| Voltage Rating (DC) | 385 V |
| Length | 25 mm |
| Diameter | 12 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 300 V |
| Power Rating | 400 mW |
| Material | Metal |
| Packaging | Bulk |
| Depth | 5.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 7.5 mm |
| REACH SVHC | Unknown |
| Weight | 2 g |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Max Voltage Rating (DC) | 385 V |
| Flammability Rating | UL94 V-0 |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Output Current | 3.5 kA |
| Clamping Voltage | 775 V |
| Varistor Voltage | 470 V |
| Max Voltage Rating (AC) | 300 V |
| Max Surge Current | 3.5 kA |
| Energy | 60 J |
| ESD Protection | No |
| Clamping Current | 25 A |
| Voltage Tolerance | 10 % |
| Schedule B | 8533400080 |
| Surge Energy Rating | 60 J |
| Peak Surge Current | 3.5 kA |
Stock: 16654
Distributors
pcbx
pcbxUnit Price$0.18809
Ext.Price$0.18809
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18809 | $0.18809 |
| 10 | $0.11969 | $1.19690 |
| 50 | $0.11219 | $5.60950 |
| 100 | $0.10516 | $10.51600 |
| 500 | $0.09319 | $46.59500 |
| 1000 | $0.08977 | $89.77000 |
| 3000 | $0.08646 | $259.38000 |
| 5000 | $0.08327 | $416.35000 |
