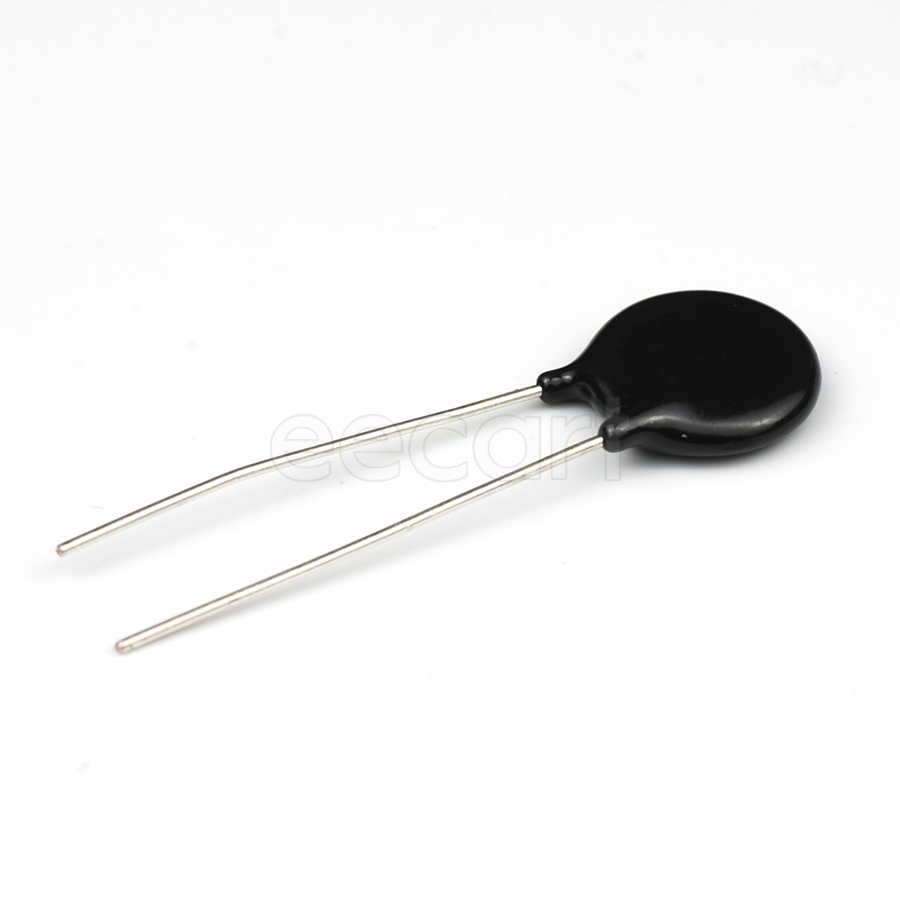

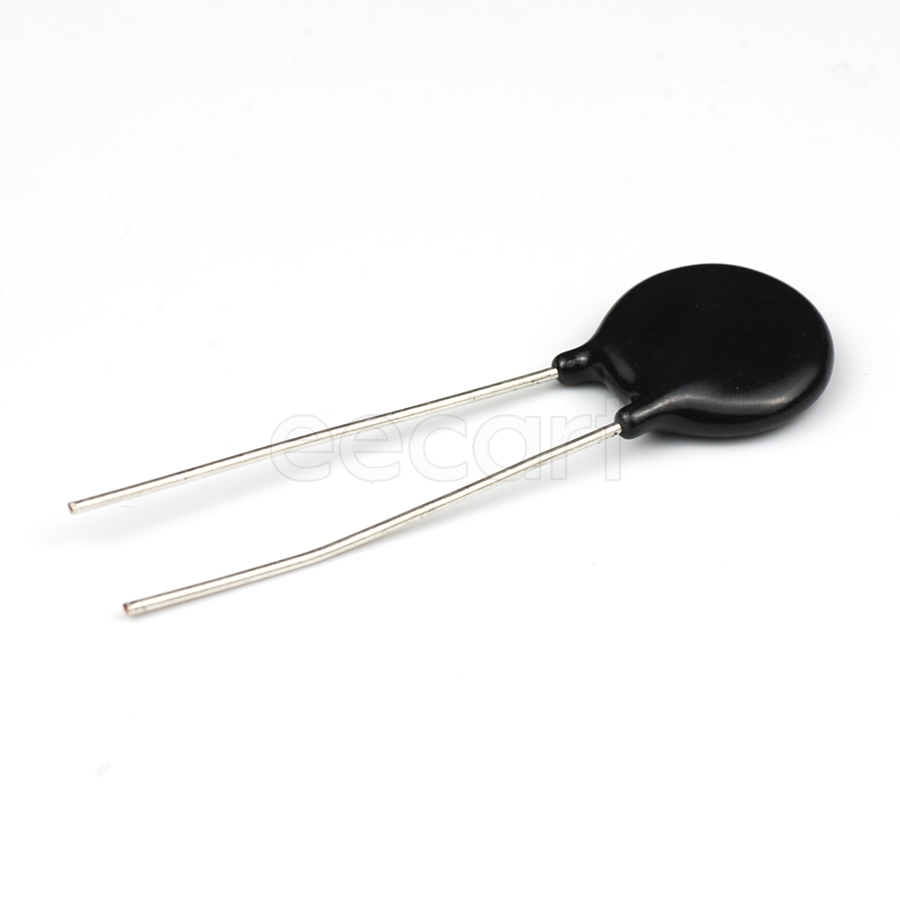

B72214S0231K101
Manufacturer:
EPCOS
Mfr.Part #:
B72214S0231K101
Datasheet:
Description:
Varistors 15.50mmL×4.70mmW×18.50mmH Through Hole 380 pF 60 J Voltage Rating (AC):230 V Voltage Rating (DC):300 V
| Parameter | Value |
|---|---|
| Capacitance | 380 pF |
| Voltage Rating (DC) | 300 V |
| Tolerance | 10 % |
| Length | 18.5 mm |
| Diameter | 14 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 230 V |
| Packaging | Bulk |
| Depth | 4.7 mm |
| RoHS | Compliant |
| Lead Pitch | 7.5 mm |
| REACH SVHC | No SVHC |
| Weight | 4 g |
| Contact Plating | Tin |
| Lead Length | 30 mm |
| Lead/Base Style | Radial |
| Max Voltage Rating (DC) | 300 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Clamping Voltage | 595 V |
| Varistor Voltage | 360 V |
| Max Voltage Rating (AC) | 230 V |
| Max Surge Current | 4.5 kA |
| Energy | 60 J |
| Clamping Current | 50 A |
| Voltage Tolerance | 10 % |
| Schedule B | 8533400080 |
| Surge Energy Rating | 60 J |
| Peak Surge Current | 4.5 kA |
Stock: 127
Distributors
pcbx
pcbxUnit Price$0.13210
Ext.Price$0.13210
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13210 | $0.13210 |
| 10 | $0.11848 | $1.18480 |
| 50 | $0.10627 | $5.31350 |
| 100 | $0.09481 | $9.48100 |
| 500 | $0.08458 | $42.29000 |
| 1000 | $0.08075 | $80.75000 |
| 3000 | $0.07709 | $231.27000 |
| 5000 | $0.07360 | $368.00000 |
