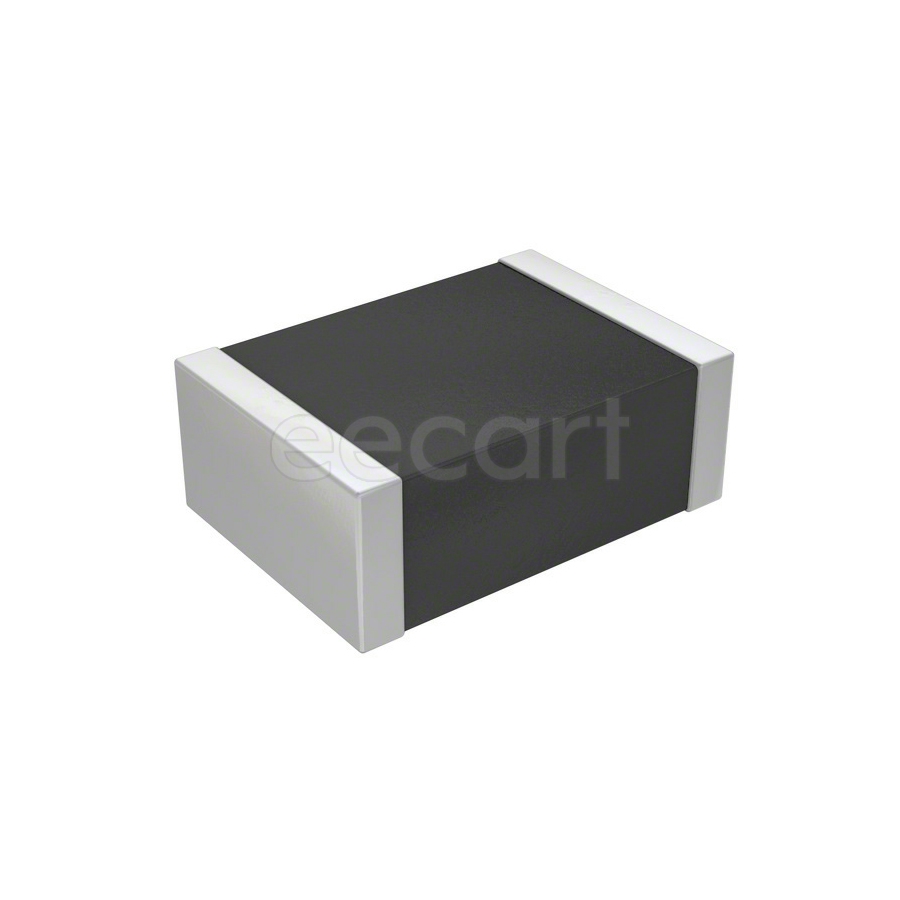

B72580T0350K062
Manufacturer:
EPCOS
Mfr.Part #:
B72580T0350K062
Datasheet:
Description:
Varistors 1812(4532 Metric) SMD/SMT 1.2 nF 4 J Voltage Rating (AC):35 V Voltage Rating (DC):45 V
| Parameter | Value |
|---|---|
| Capacitance | 1.2 nF |
| Length | 4.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Depth | 3.2 mm |
| RoHS | Non-Compliant |
| Max Voltage Rating (DC) | 45 V |
| Clamping Voltage | 90 V |
| Varistor Voltage | 56 V |
| Max Voltage Rating (AC) | 35 V |
| Max Surge Current | 500 A |
| Clamping Current | 5 A |
| Voltage Tolerance | 10 % |
| Schedule B | 8533400080 |
| Voltage Rating (DC) | 45 V |
| Surge Energy Rating | 4 J |
| Voltage Rating (AC) | 35 V |
| Peak Surge Current | 500 A |
Stock: 3689
Distributors
pcbx
pcbxUnit Price$0.34454
Ext.Price$0.34454
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34454 | $0.34454 |
| 10 | $0.21630 | $2.16300 |
| 25 | $0.20646 | $5.16150 |
| 50 | $0.19706 | $9.85300 |
| 100 | $0.18809 | $18.80900 |
| 300 | $0.18578 | $55.73400 |
| 500 | $0.18350 | $91.75000 |
| 1000 | $0.18124 | $181.24000 |
