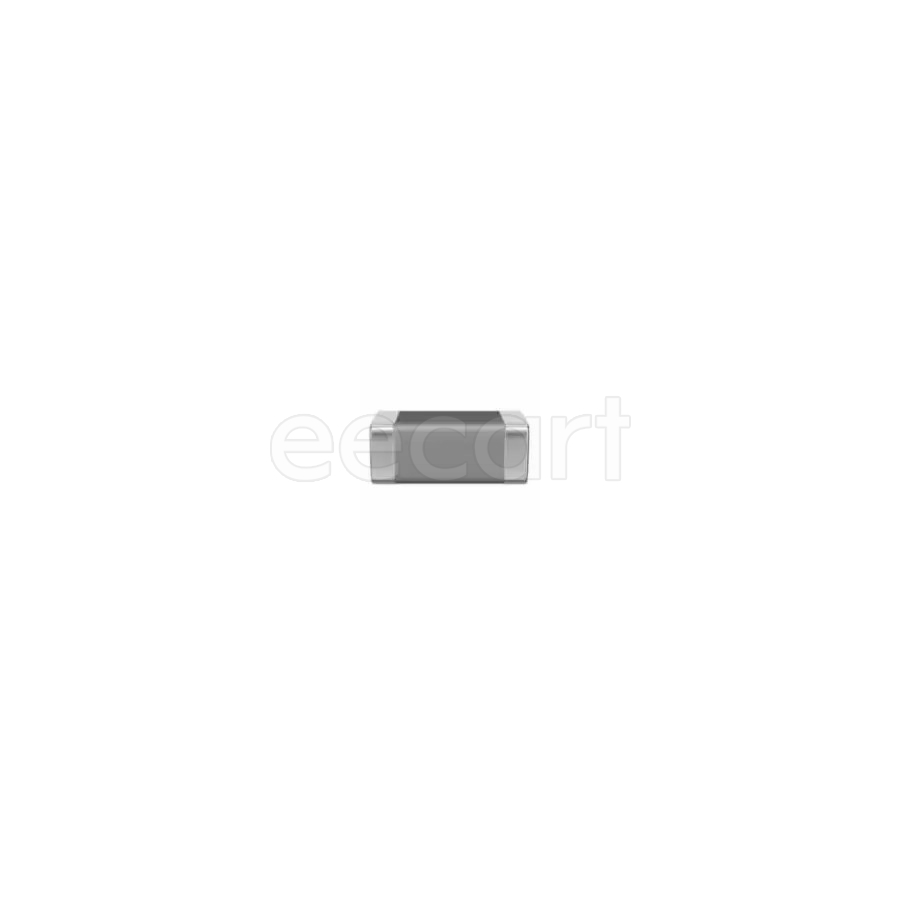

B72650M600K72
Manufacturer:
EPCOS
Mfr.Part #:
B72650M600K72
Datasheet:
Description:
Varistors 1210(3225 Metric) SMD/SMT 250 pF 2.2 J Voltage Rating (AC):60 V Voltage Rating (DC):85 V
| Parameter | Value |
|---|---|
| Capacitance | 250 pF |
| Voltage Rating (DC) | 85 V |
| Tolerance | 10 % |
| Length | 8 mm |
| Width | 6.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 3225 |
| Case Code (Metric) | 8063 |
| Voltage Rating (AC) | 60 V |
| Power Rating | 100 mW |
| Height | 4.5 mm |
| Material | Metal |
| Packaging | Reel |
| Voltage Rating | 85 V |
| Depth | 6.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Max Voltage Rating (DC) | 85 V |
| Flammability Rating | UL94 V-0 |
| Max Output Current | 400 A |
| Clamping Voltage | 165 V |
| Varistor Voltage | 100 V |
| Max Voltage Rating (AC) | 60 V |
| Max Surge Current | 400 A |
| Energy | 2.2 J |
| Clamping Current | 5 A |
| Voltage Tolerance | 10 % |
| Schedule B | 8533400080 |
| Surge Energy Rating | 2.2 J |
| Peak Surge Current | 400 A |
Stock: 6021
Distributors
pcbx
pcbxUnit Price$0.47534
Ext.Price$0.47534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47534 | $0.47534 |
| 10 | $0.30264 | $3.02640 |
| 25 | $0.28985 | $7.24625 |
| 50 | $0.27760 | $13.88000 |
| 100 | $0.26588 | $26.58800 |
| 300 | $0.25092 | $75.27600 |
| 500 | $0.23681 | $118.40500 |
| 1000 | $0.21630 | $216.30000 |
| 3000 | $0.20802 | $624.06000 |
| 5000 | $0.20006 | $1000.30000 |
| 10000 | $0.19749 | $1974.90000 |
