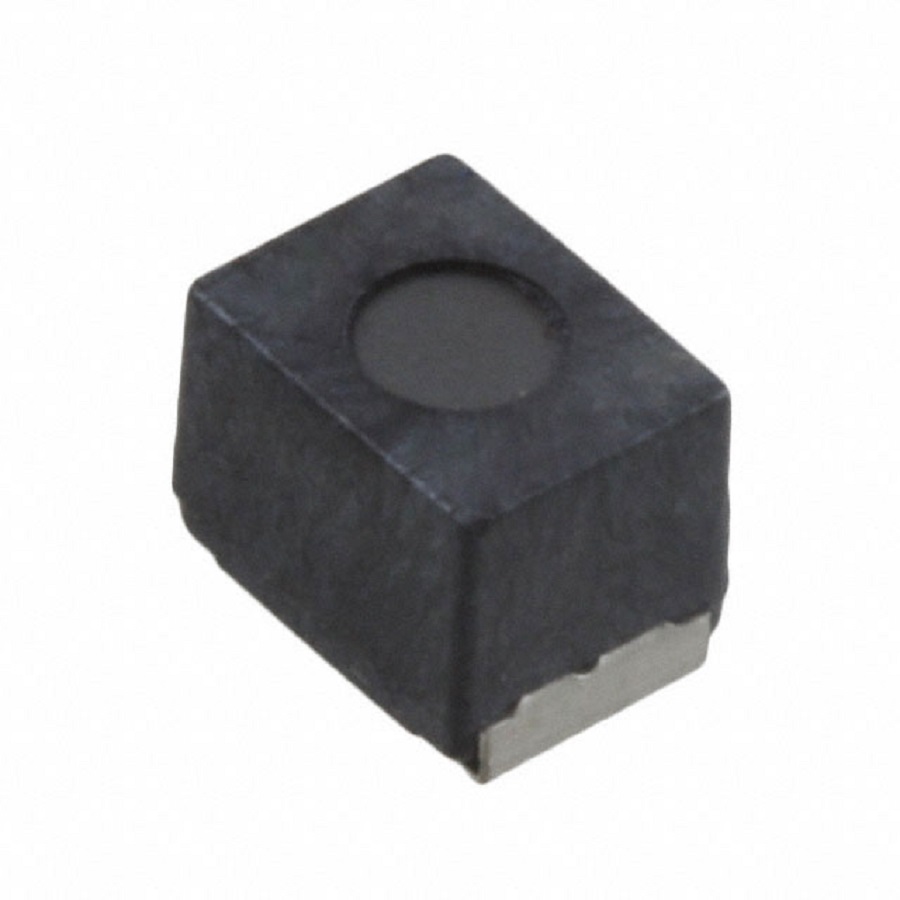

B82432T1105K000
Manufacturer:
EPCOS
Mfr.Part #:
B82432T1105K000
Datasheet:
Description:
Fixed Inductors 1812(4532 Metric) PCB 1 mH 10 % 70 mA 30 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 3.4 mm |
| Length | 4.5 mm |
| Width | 3.2 mm |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Number of Pins | 2 |
| Resistance | 30 Ω |
| Height | 3.2 mm |
| Packaging | Reel |
| Depth | 3.4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Contact Plating | Tin |
| Self Resonant Frequency | 2.3 MHz |
| Type | Wirewound |
| Q Factor | 20 |
| Current Rating | 70 mA |
| DC Resistance (DCR) | 30 Ω |
| Test Frequency | 252 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Shielding | Unshielded |
| Inductance | 1 mH |
| Core Material | Ferrite |
| inductance tolerance | 10 % |
| Max DC Current | 70 mA |
| DC Current | 70 mA |
| Schedule B | 8504500000 |
Stock: 2597
Distributors
pcbx
pcbxUnit Price$0.41309
Ext.Price$0.41309
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41309 | $0.41309 |
| 10 | $0.33849 | $3.38490 |
| 25 | $0.31335 | $7.83375 |
| 50 | $0.29532 | $14.76600 |
| 100 | $0.27844 | $27.84400 |
| 300 | $0.26006 | $78.01800 |
| 500 | $0.24290 | $121.45000 |
| 1000 | $0.22902 | $229.02000 |
