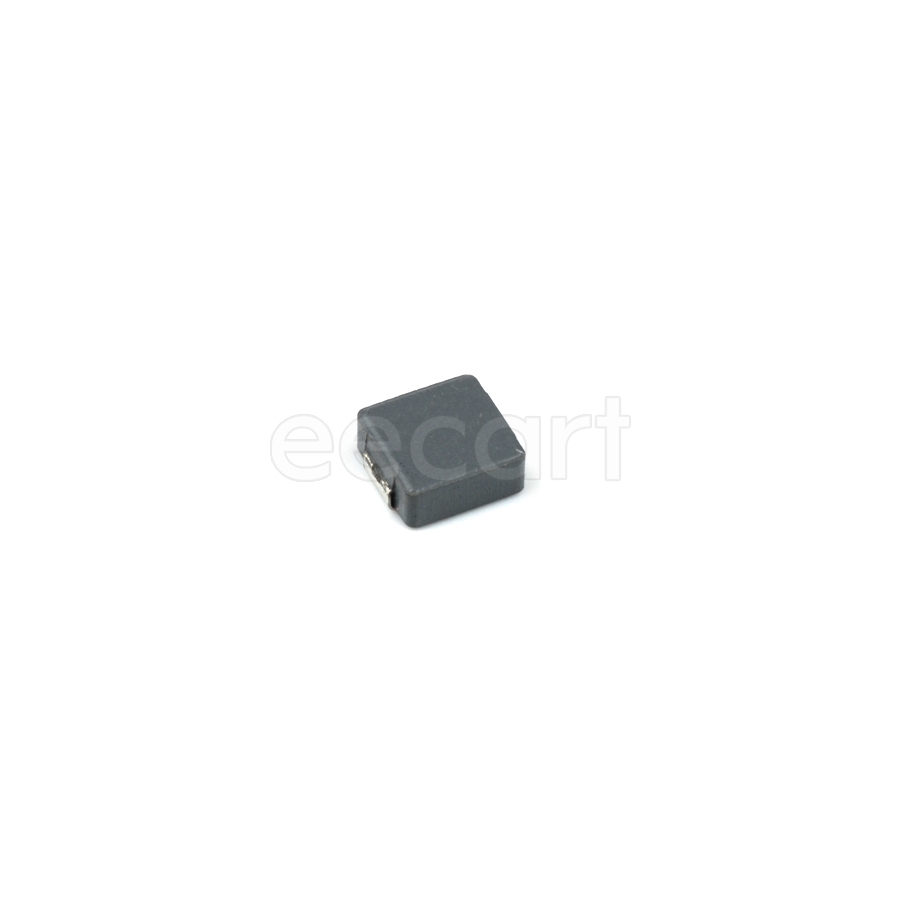

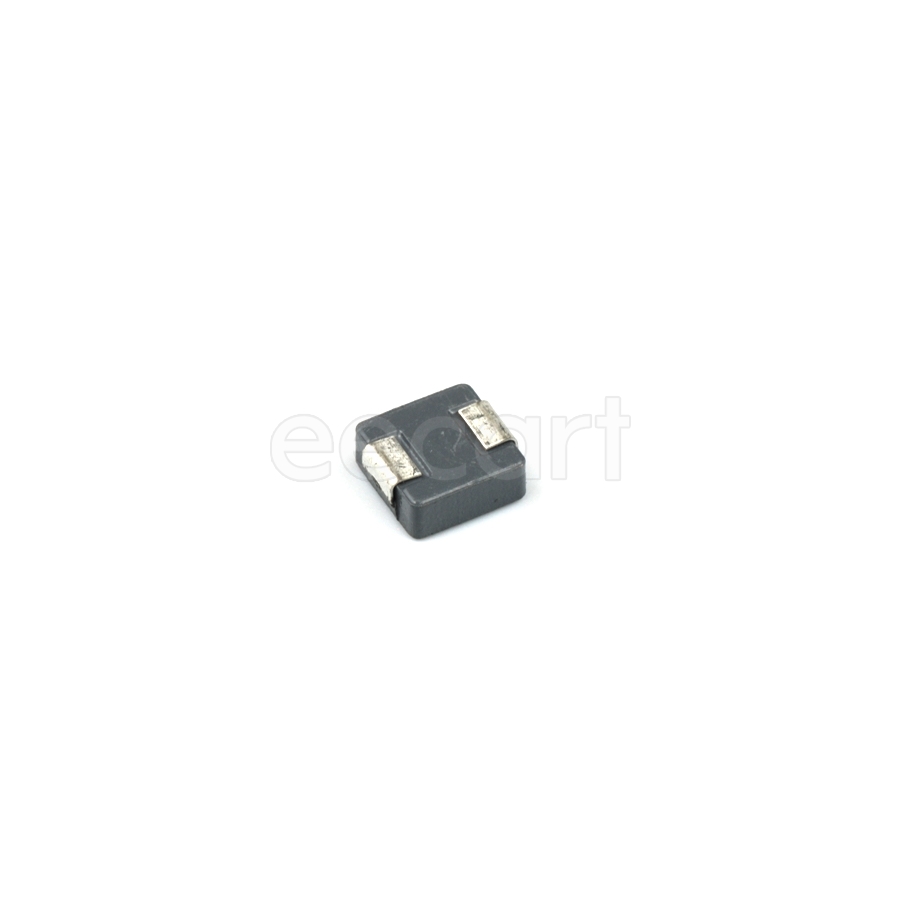

B82442T1104K050
Manufacturer:
EPCOS
Mfr.Part #:
B82442T1104K050
Datasheet:
Description:
Fixed Inductors 5.60mmL×5.00mmW×5.30mmH PCB 100 µH 10 % 510 mA 990 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Length | 5.6 mm |
| Width | 5 mm |
| Termination | SMD/SMT |
| Case Code (Imperial) | 2220 |
| Case Code (Metric) | 5650 |
| Number of Pins | 2 |
| Resistance | 990 mΩ |
| Height | 5 mm |
| Packaging | Reel |
| Depth | 5.3 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 480.014126 mg |
| Self Resonant Frequency | 6.1 MHz |
| Q Factor | 20 |
| Current Rating | 510 mA |
| DC Resistance (DCR) | 990 mΩ |
| Test Frequency | 796 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Inductance | 100 µH |
| Core Material | Ferrite |
| inductance tolerance | 10 % |
| Max DC Current | 760 mA |
| DC Current | 510 mA |
| Schedule B | 8504500000 |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Saturation Current | 760 mA |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Type | Wirewound |
| Height - Seated (Max) | 5.3 mm |
Stock: 31673
Distributors
pcbx
pcbxUnit Price$0.56340
Ext.Price$0.56340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56340 | $0.56340 |
| 10 | $0.50526 | $5.05260 |
| 25 | $0.46764 | $11.69100 |
| 50 | $0.46205 | $23.10250 |
| 100 | $0.45653 | $45.65300 |
| 300 | $0.42876 | $128.62800 |
| 500 | $0.40267 | $201.33500 |
| 1000 | $0.36078 | $360.78000 |
