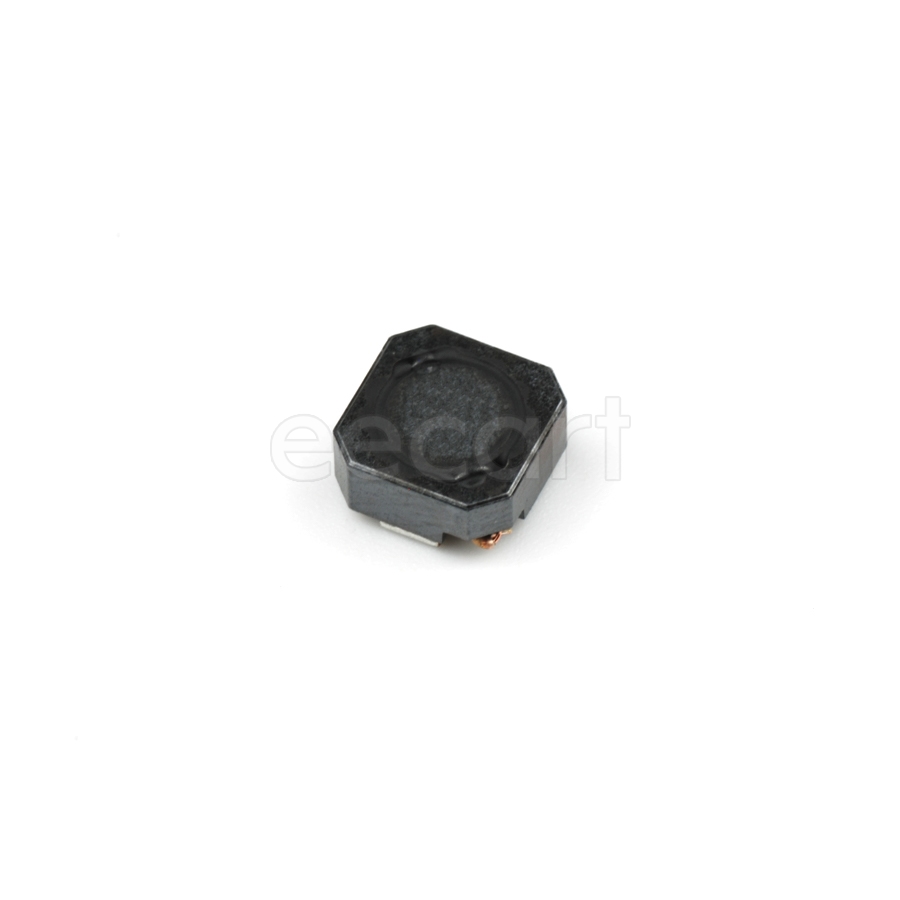

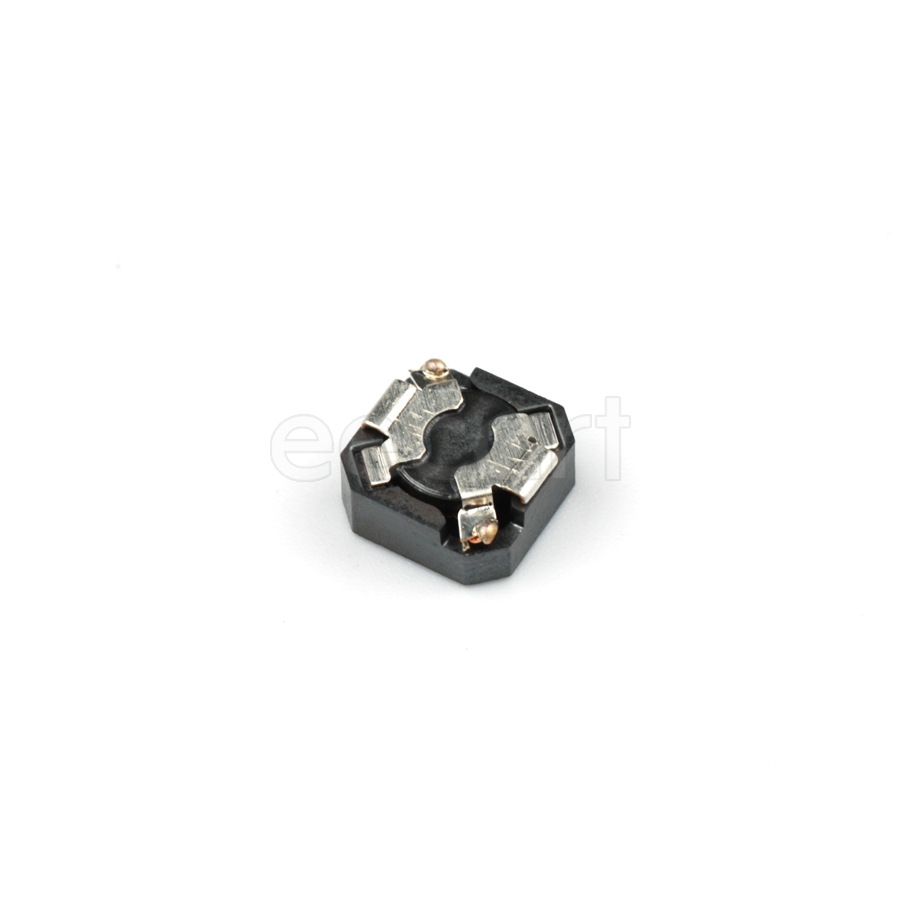

B82462G4473M
Manufacturer:
EPCOS
Mfr.Part #:
B82462G4473M
Datasheet:
Description:
Fixed Inductors 6.30mmL×6.30mmW×3.00mmH SMD/SMT 47 µH 20 % 1.8 A 310 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 6.3 mm |
| Width | 6.3 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 340 mΩ |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 6.3 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Features | |
| Self Resonant Frequency | 13 MHz |
| Type | Wirewound |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 310 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Shielding | Shielded |
| Inductance | 47 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 750 mA |
| inductance tolerance | 20 % |
| DC Current | 750 mA |
| Saturation Current | 600 mA |
| Schedule B | 8504500000 |
Stock: 1371
Distributors
pcbx
pcbxUnit Price$0.78226
Ext.Price$0.78226
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78226 | $0.78226 |
| 10 | $0.65060 | $6.50600 |
| 25 | $0.56340 | $14.08500 |
| 50 | $0.54691 | $27.34550 |
| 100 | $0.53091 | $53.09100 |
| 300 | $0.49599 | $148.79700 |
| 500 | $0.46337 | $231.68500 |
| 1000 | $0.46252 | $462.52000 |
| 3000 | $0.41806 | $1254.18000 |
| 5000 | $0.37788 | $1889.40000 |
