B82464G4333M000
Manufacturer:
EPCOS
Mfr.Part #:
B82464G4333M000
Datasheet:
Description:

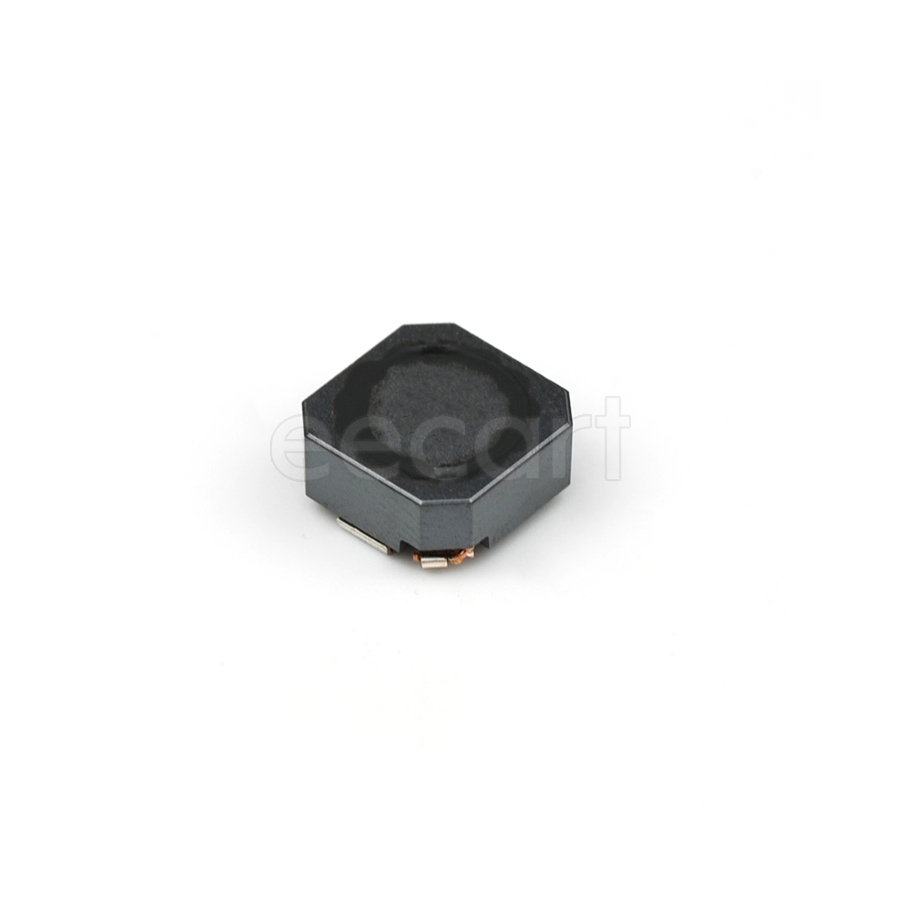

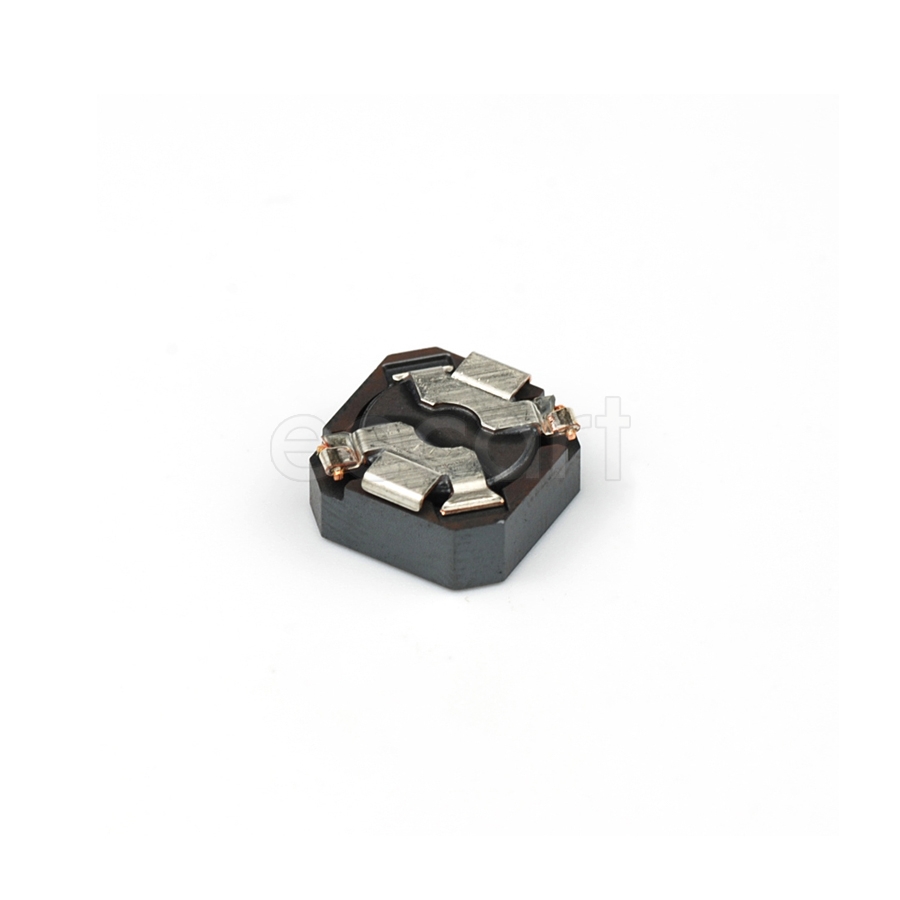

Fixed Inductors 10.40mmL×10.40mmW×4.80mmH SMD/SMT 33 µH 20 % 1.85 A 75 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 10.4 mm |
| Width | 10.4 mm |
| Number of Pins | 2 |
| Resistance | 75 mΩ |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 10.4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 10 MHz |
| Current Rating | 1.85 A |
| DC Resistance (DCR) | 75 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Shielding | Shielded |
| Inductance | 33 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.85 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.85 A |
| DC Current | 1.85 A |
| Saturation Current | 2.34 A |
| Schedule B | 8504500000 |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Ratings | AEC-Q200 |
| Height - Seated (Max) | 4.8 mm |
| Type | Wirewound |
Stock: 1749
Distributors
pcbx
pcbxUnit Price$0.86325
Ext.Price$0.86325
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.86325 | $0.86325 |
| 10 | $0.70762 | $7.07620 |
| 25 | $0.65447 | $16.36175 |
| 50 | $0.61706 | $30.85300 |
| 100 | $0.58183 | $58.18300 |
| 300 | $0.52065 | $156.19500 |
| 500 | $0.46590 | $232.95000 |
