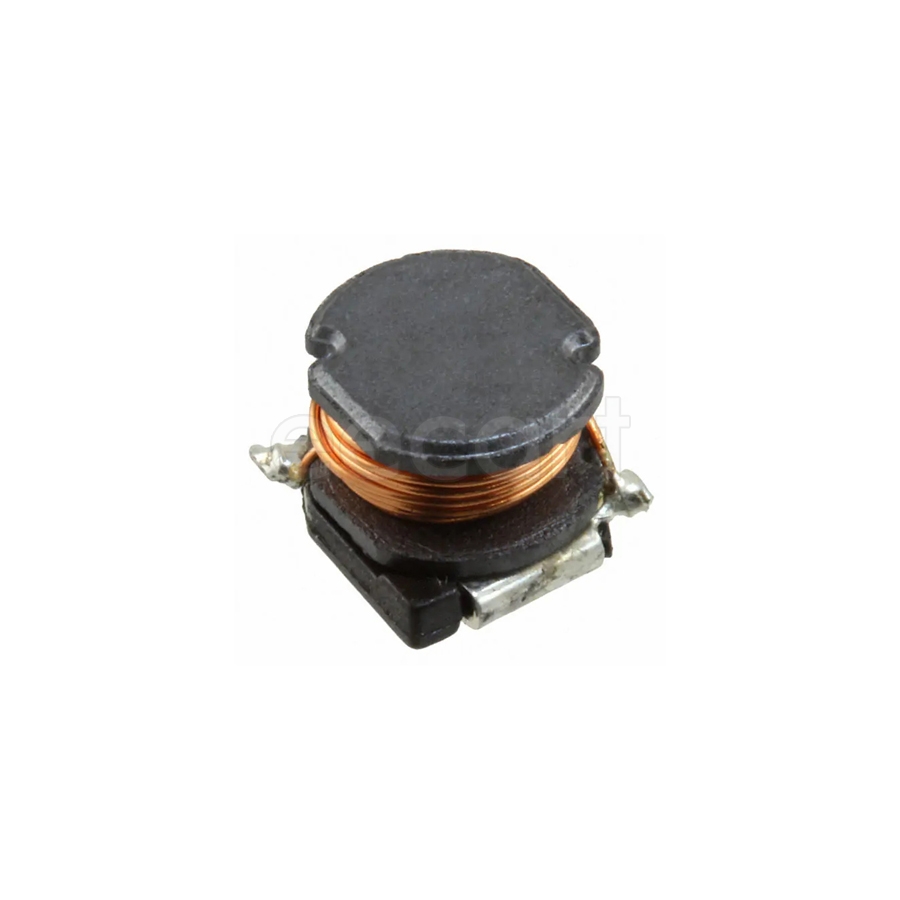

B82476A1104M000
Manufacturer:
EPCOS
Mfr.Part #:
B82476A1104M000
Datasheet:
Description:
Fixed Inductors 12.95mmL×9.40mmW×5.08mmH SMD/SMT 100 µH 20 % 1.3 A 230 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.08 mm |
| Length | 12.95 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 230 mΩ |
| Height | 5.08 mm |
| Packaging | Reel |
| Depth | 9.4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 20 MHz |
| Type | Wirewound |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 230 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Shielding | Unshielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.3 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.3 A |
| DC Current | 1.3 A |
| Saturation Current | 1.2 A |
| Schedule B | 8504500000 |
Stock: 69
Distributors
pcbx
pcbxUnit Price$0.70703
Ext.Price$0.70703
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70703 | $0.70703 |
| 10 | $0.58050 | $5.80500 |
| 25 | $0.54406 | $13.60150 |
| 50 | $0.50991 | $25.49550 |
| 100 | $0.47790 | $47.79000 |
| 300 | $0.47318 | $141.95400 |
| 500 | $0.46850 | $234.25000 |
| 1000 | $0.33513 | $335.13000 |
