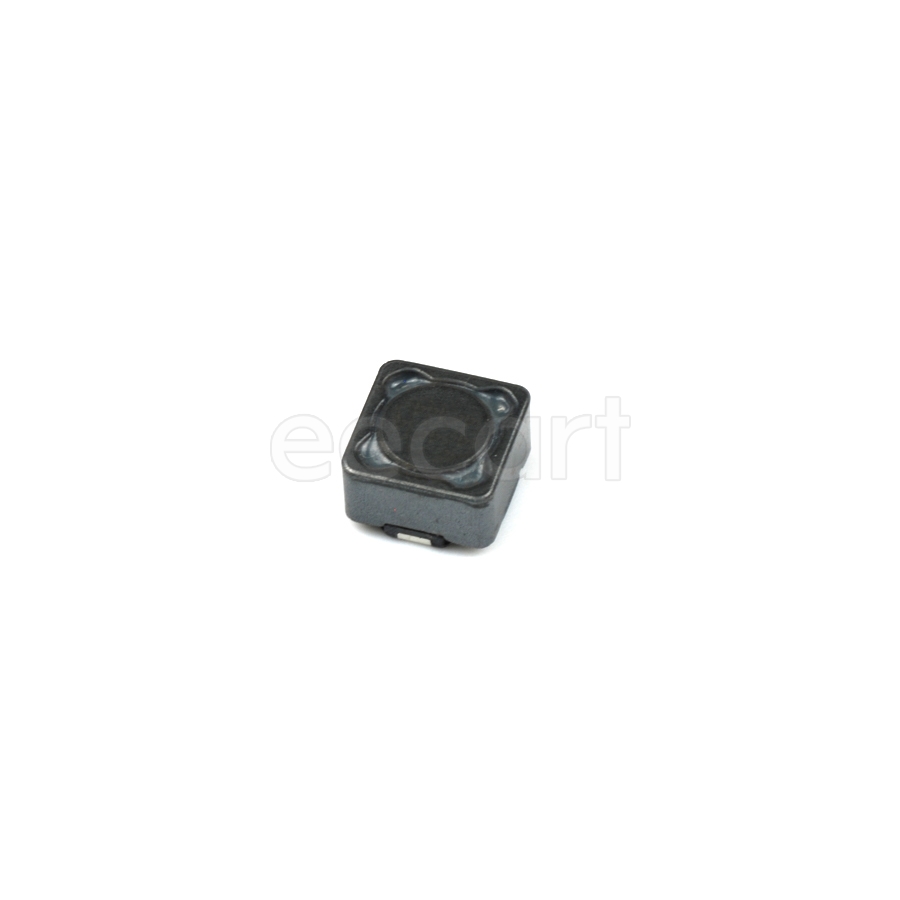

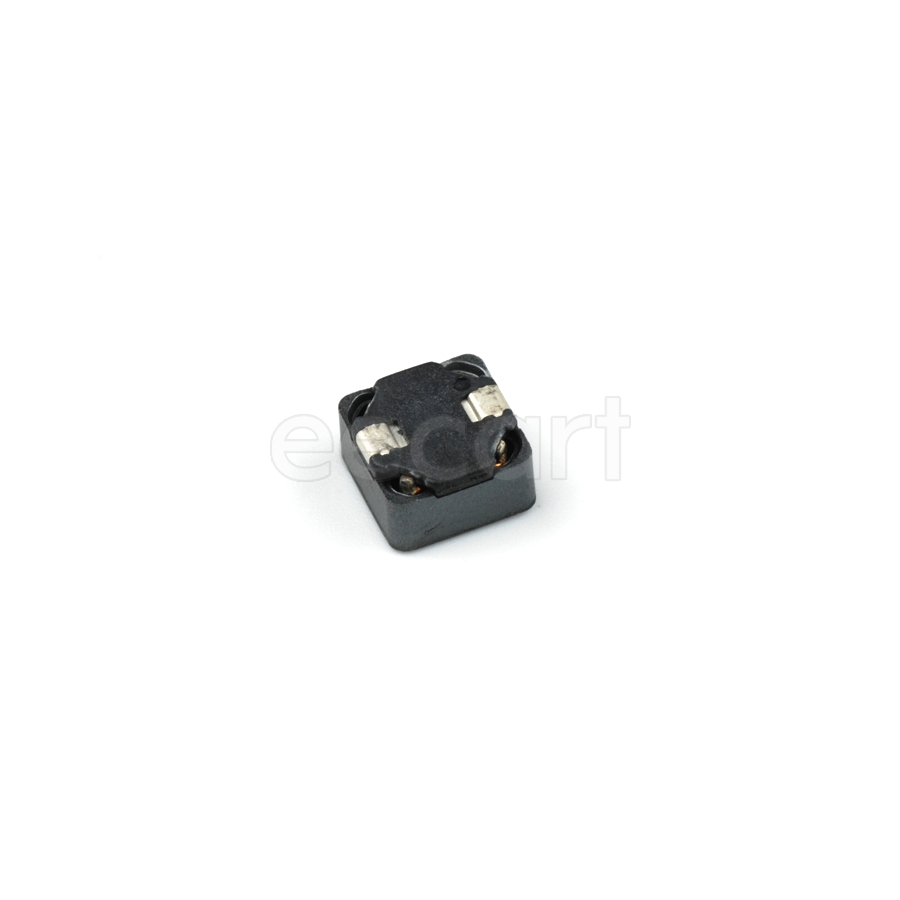

B82477G4104M
Manufacturer:
EPCOS
Mfr.Part #:
B82477G4104M
Datasheet:
Description:
Fixed Inductors 12.80mmL×12.80mmW×8.00mmH SMD/SMT 100 µH 20 % 1.7 A 165 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 8 mm |
| Length | 12.8 mm |
| Width | 12.8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 165 mΩ |
| Height | 8 mm |
| Packaging | Reel |
| Depth | 12.8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | |
| Features | |
| Self Resonant Frequency | 100 kHz |
| Type | Wirewound |
| Current Rating | 1.7 A |
| DC Resistance (DCR) | 165 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Shielding | Shielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.7 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.7 A |
| DC Current | 1.7 A |
| Saturation Current | 1.95 A |
| Schedule B | 8504500000 |
Stock: 329
Distributors
pcbx
pcbxUnit Price$0.65744
Ext.Price$0.65744
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.65744 | $0.65744 |
| 10 | $0.54288 | $5.42880 |
| 25 | $0.50888 | $12.72200 |
| 50 | $0.47701 | $23.85050 |
| 100 | $0.44713 | $44.71300 |
| 300 | $0.39552 | $118.65600 |
| 500 | $0.34987 | $174.93500 |
| 1000 | $0.30949 | $309.49000 |
