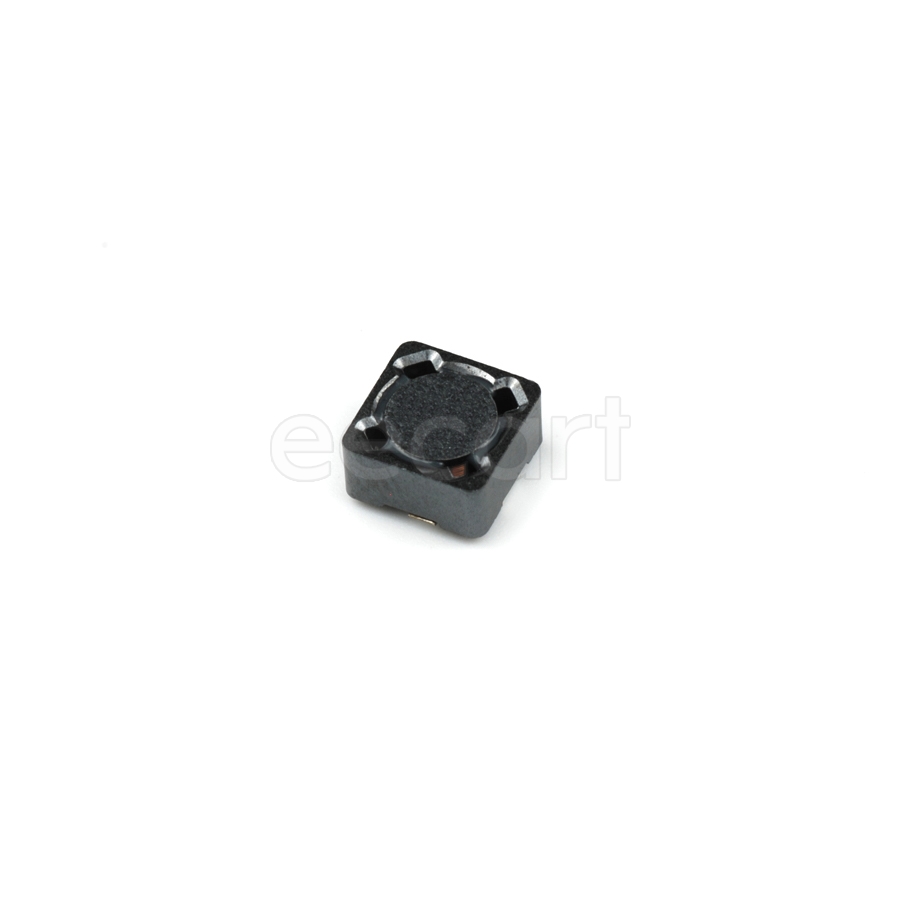

B82477G4223M
Manufacturer:
EPCOS
Mfr.Part #:
B82477G4223M
Datasheet:
Description:
Fixed Inductors 12.30mmL×12.30mmW×6.00mmH SMD/SMT 22 µH 20 % 3.6 A 38 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6 mm |
| Length | 12.8 mm |
| Width | 12.8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 2 |
| Resistance | 38 mΩ |
| Height | 6 mm |
| Packaging | Reel |
| Depth | 12.8 mm |
| Lead Free | |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | |
| Features | |
| Type | Wirewound |
| Current Rating | 3.6 A |
| DC Resistance (DCR) | 38 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Shielding | Shielded |
| Inductance | 22 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.6 A |
| inductance tolerance | 20 % |
| DC Current | 3.6 A |
| Saturation Current | 4.25 A |
| Schedule B | 8504500000 |
