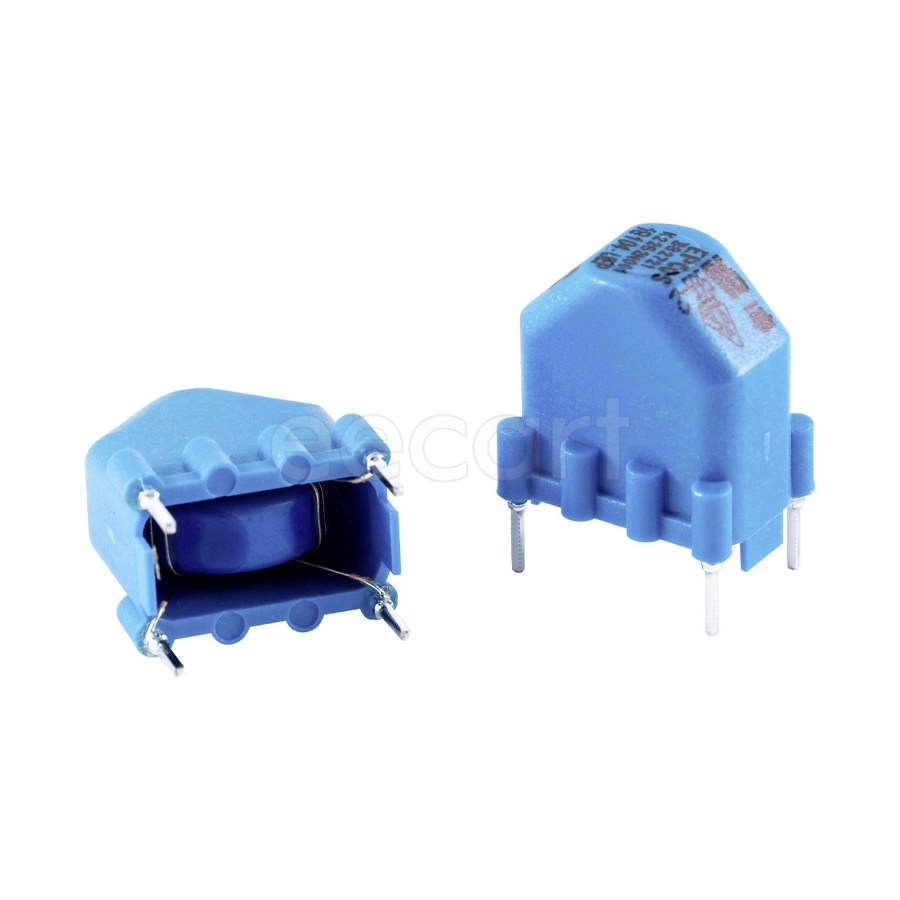

B82721K2202N001
Manufacturer:
EPCOS
Mfr.Part #:
B82721K2202N001
Datasheet:
Description:
Common Mode Chokes Through Hole Max Current Rating:2 A Number of Lines:2 80 mΩ 1 mH
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Length | 18.2 mm |
| Width | 13.2 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Resistance | 80 mΩ |
| Height | 20.3 mm |
| Packaging | Tray |
| Depth | 13.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 700 µm |
| Lead Pitch | 15 mm |
| REACH SVHC | No SVHC |
| Weight | 5 g |
| Lead/Base Style | Pin |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 2 A |
| DC Resistance (DCR) | 80 mΩ |
| Max Current Rating | 2 A |
| Test Frequency | 100 kHz |
| Orientation | Vertical |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Number of Lines | 2 |
| Inductance | 1 mH |
| Core Material | Ferrite |
| inductance tolerance | 30 % |
| Max DC Current | 2 A |
| DC Current | 2 A |
| Type | Power Line |
Stock: 1640
Distributors
pcbx
pcbxUnit Price$1.39890
Ext.Price$1.39890
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.39890 | $1.39890 |
| 10 | $1.14878 | $11.48780 |
| 25 | $1.06269 | $26.56725 |
| 50 | $1.00199 | $50.09950 |
| 100 | $0.94467 | $94.46700 |
| 300 | $0.87729 | $263.18700 |
| 500 | $0.81471 | $407.35500 |
| 1000 | $0.75659 | $756.59000 |
