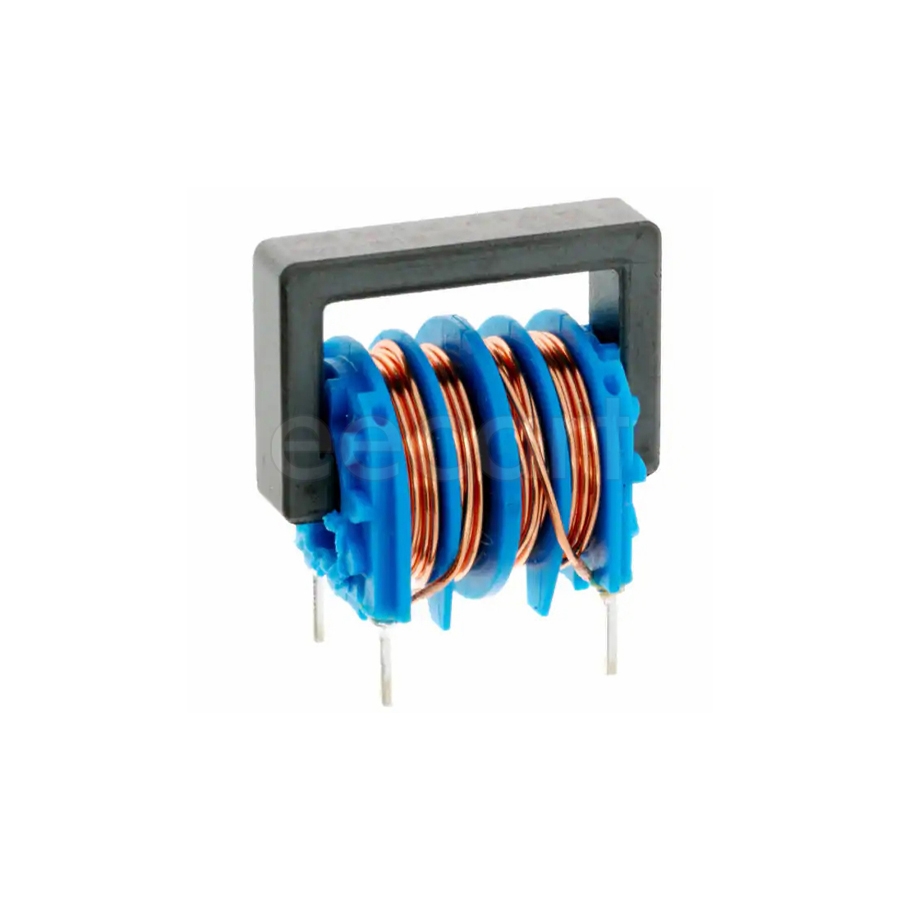

B82731M2701A030
Manufacturer:
EPCOS
Mfr.Part #:
B82731M2701A030
Datasheet:
Description:
Common Mode Chokes Through Hole Max Current Rating:700 mA Number of Lines:2 1 Ω 27 mH
| Parameter | Value |
|---|---|
| Tolerance | 50 % |
| Length | 21 mm |
| Width | 10 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Resistance | 1 Ω |
| Height | 20 mm |
| Packaging | Tray |
| Depth | 15 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 12.5 mm |
| REACH SVHC | No SVHC |
| Weight | 8 g |
| Lead/Base Style | Pin |
| Self Resonant Frequency | 10 kHz |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 1 Ω |
| Max Current Rating | 700 mA |
| Test Frequency | 10 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Number of Lines | 2 |
| Inductance | 27 mH |
| Core Material | Ferrite |
| inductance tolerance | -30 % |
| Max DC Current | 700 mA |
| DC Current | 700 mA |
| Type | Power Line |
Stock: 499
Distributors
pcbx
pcbxUnit Price$1.09690
Ext.Price$1.09690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.09690 | $1.09690 |
| 10 | $0.91152 | $9.11520 |
| 25 | $0.84557 | $21.13925 |
| 50 | $0.78439 | $39.21950 |
| 100 | $0.72763 | $72.76300 |
| 300 | $0.67498 | $202.49400 |
| 500 | $0.62614 | $313.07000 |
