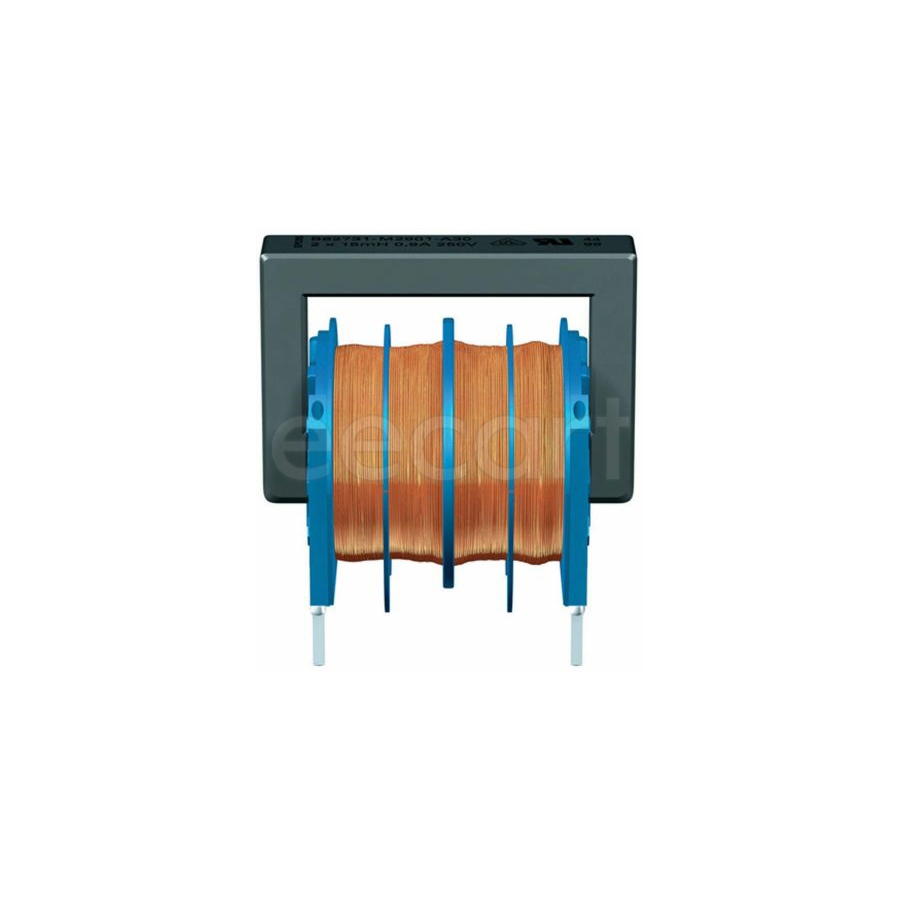

B82732R2102B030
Manufacturer:
EPCOS
Mfr.Part #:
B82732R2102B030
Datasheet:
Description:
Common Mode Chokes Through Hole Max Current Rating:1 A Number of Lines:2 580 mΩ 22 mH
| Parameter | Value |
|---|---|
| Tolerance | 50 % |
| Length | 24 mm |
| Width | 16.5 mm |
| Termination | Radial |
| Height | 23.5 mm |
| Packaging | Box |
| Depth | 16.5 mm |
| RoHS | Compliant |
| Weight | 10 g |
| Current Rating | 1 A |
| DC Resistance (DCR) | 580 mΩ |
| Test Frequency | 10 kHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Shielding | Unshielded |
| Inductance | 22 mH |
| Core Material | Ferrite |
| Max DC Current | 1 A |
| DC Current | 1 A |
| Number of Lines | 2 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 125 °C |
| Type | D Core Double Choke |
| Voltage Rating (AC) | 250 V |
| Max Current Rating | 1 A |
Stock: 406
Distributors
pcbx
pcbxUnit Price$1.42090
Ext.Price$1.42090
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.42090 | $1.42090 |
| 10 | $1.17040 | $11.70400 |
| 25 | $1.01993 | $25.49825 |
| 50 | $0.99131 | $49.56550 |
| 100 | $0.96350 | $96.35000 |
| 300 | $0.91886 | $275.65800 |
| 500 | $0.87630 | $438.15000 |
| 1000 | $0.86348 | $863.48000 |
| 3000 | $0.83480 | $2504.40000 |
| 5000 | $0.80706 | $4035.30000 |
