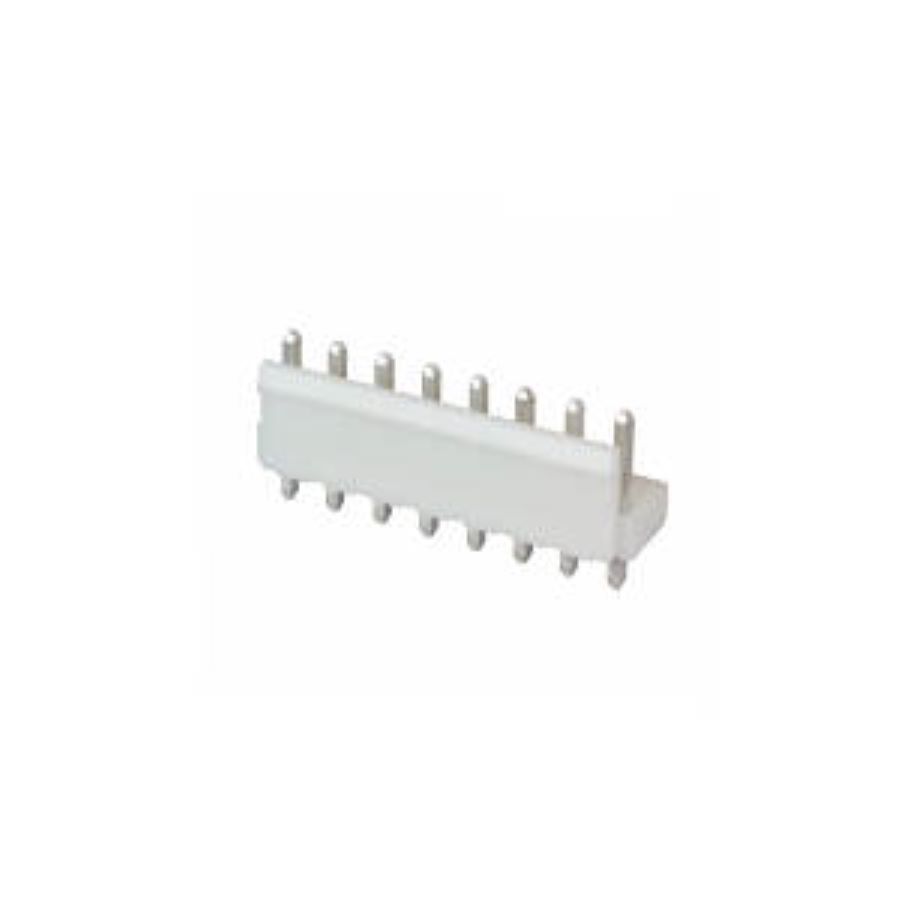

B8P-VH(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B8P-VH(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.96 mm |
| Gender | Male |
| Number of Contacts | 8 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 85.0 °C |
| rohs status | Compliant |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| size width | 8.50 mm |
| size length | 31.6 mm |
| size height | 9.40 mm |
| Housing Color | Natural |
| pin pitch | 3.96 mm |
| Mating Post Length | 7.7 mm |
| Termination Post Length | 3.7 mm |
Stock: 2642
Distributors
pcbx
pcbxUnit Price$0.20208
Ext.Price$0.20208
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20208 | $0.20208 |
| 10 | $0.18219 | $1.82190 |
| 50 | $0.16426 | $8.21300 |
| 100 | $0.13868 | $13.86800 |
| 500 | $0.11708 | $58.54000 |
| 1000 | $0.11240 | $112.40000 |
| 3000 | $0.10791 | $323.73000 |
| 5000 | $0.10359 | $517.95000 |
