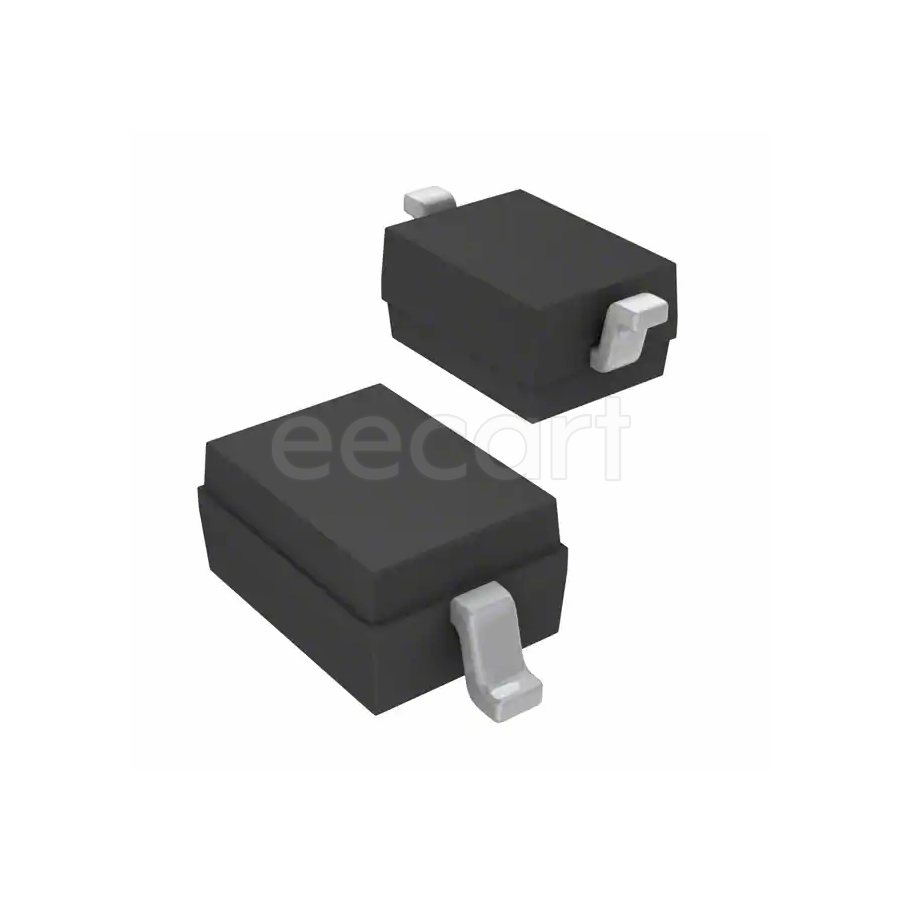

BAS3010B03WE6327HTSA1
Manufacturer:
Infineon
Mfr.Part #:
BAS3010B03WE6327HTSA1
Datasheet:
Description:
Schottky Diodes SOD-323-2 SMD/SMT Single Forward Current:1 A Forward Voltage:550 mV Max Repetitive Reverse Voltage (Vrrm):30 V Max Forward Surge Current (Ifsm):10 A
| Parameter | Value |
|---|---|
| Capacitance | 40 pF |
| Voltage Rating (DC) | 30 V |
| Length | 1.25 mm |
| Width | 1.7 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 900 µm |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 1 A |
| Output Current | 1 A |
| Forward Current | 1 A |
| Forward Voltage | 550 mV |
| Average Rectified Current | 1 A |
| Max Reverse Voltage (DC) | 30 V |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 10 A |
| Reverse Voltage | 30 V |
| Peak Non-Repetitive Surge Current | 10 A |
| Reverse Current | 20 µA |
| Schedule B | 8541100080 |
| Package Quantity | 3000 |
Stock: 85641
Distributors
pcbx
pcbxUnit Price$0.18809
Ext.Price$0.18809
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18809 | $0.18809 |
| 10 | $0.11627 | $1.16270 |
| 50 | $0.10504 | $5.25200 |
| 100 | $0.09490 | $9.49000 |
| 500 | $0.07259 | $36.29500 |
| 1000 | $0.06694 | $66.94000 |
| 3000 | $0.05634 | $169.02000 |
| 5000 | $0.05244 | $262.20000 |
| 10000 | $0.04881 | $488.10000 |
