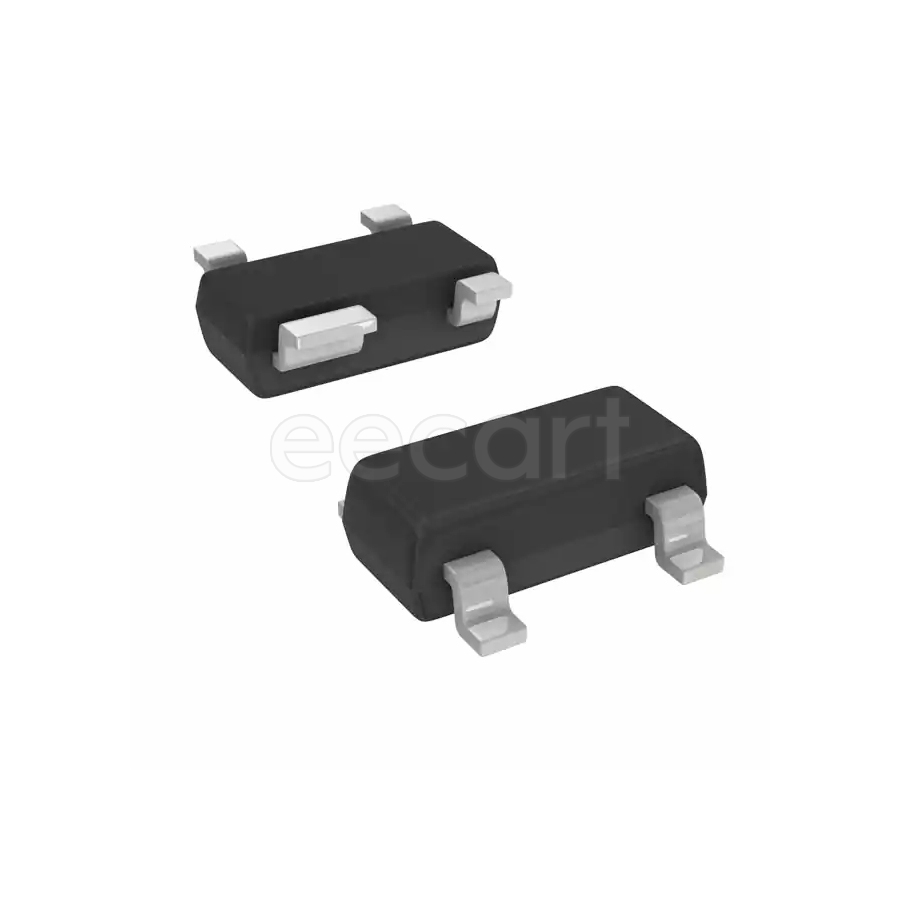

BAS4002ARPPE6327HTSA1
Manufacturer:
Infineon
Mfr.Part #:
BAS4002ARPPE6327HTSA1
Datasheet:
Description:
Bridge Rectifiers SOT-143 SMD/SMT Schottky Diodes & Rectifiers 40 V Forward Current:200 mA Forward Voltage:790 mV
| Parameter | Value |
|---|---|
| Length | 2.9 mm |
| Width | 1.3 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 4 |
| Height | 900 µm |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Type | Schottky Diodes & Rectifiers |
| Number of Elements | 1 |
| Forward Current | 200 mA |
| Forward Voltage | 790 mV |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Reverse Leakage Current | 10 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 28 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 2 A |
| Reverse Voltage | 40 V |
| Peak Non-Repetitive Surge Current | 2 A |
| Reverse Current | 10 µA |
| Schedule B | 8541100070 |
| Package Quantity | 3000 |
| Peak Reverse Voltage | 40 V |
Stock: 1888
Distributors
pcbx
pcbxUnit Price$0.34675
Ext.Price$0.34675
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34675 | $0.34675 |
| 10 | $0.30882 | $3.08820 |
| 50 | $0.27504 | $13.75200 |
| 100 | $0.23922 | $23.92200 |
| 500 | $0.20807 | $104.03500 |
| 1000 | $0.20032 | $200.32000 |
| 3000 | $0.19286 | $578.58000 |
| 5000 | $0.18238 | $911.90000 |
