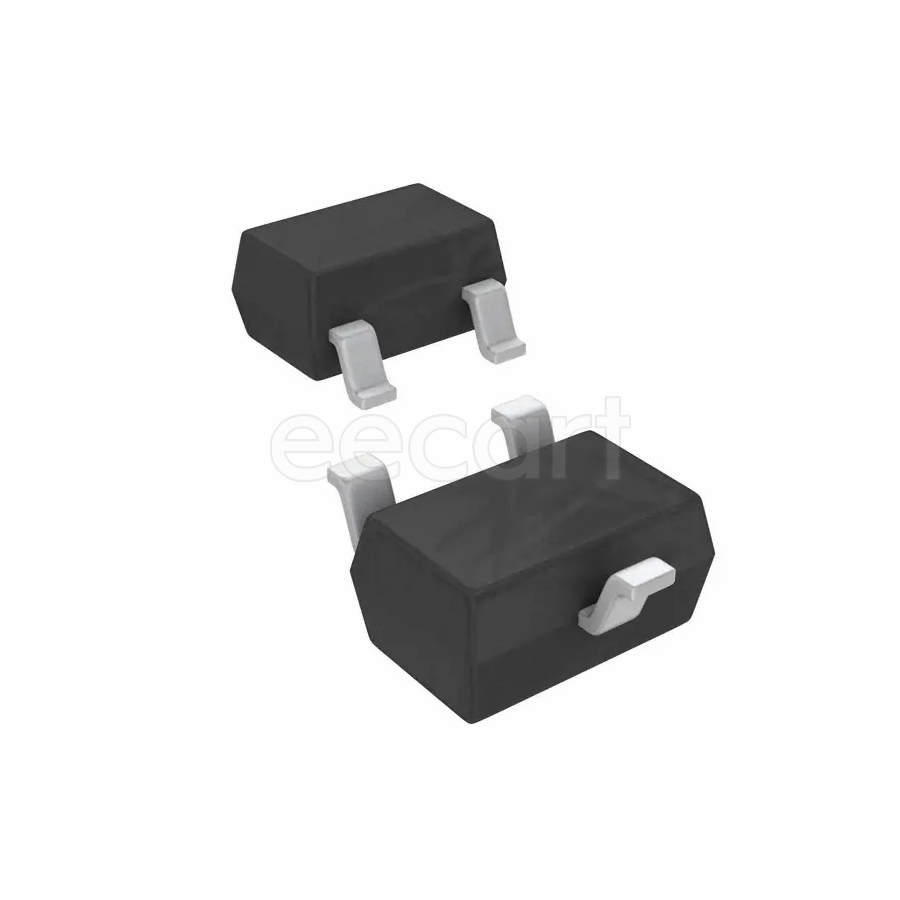

BAS7004WH6327XTSA1
Manufacturer:
Infineon
Mfr.Part #:
BAS7004WH6327XTSA1
Datasheet:
Description:
Schottky Diodes PG-SOT323-3 SMD/SMT Dual Forward Current:70 mA Forward Voltage:1 V Max Repetitive Reverse Voltage (Vrrm):70 V Max Forward Surge Current (Ifsm):100 mA
| Parameter | Value |
|---|---|
| Capacitance | 2 pF |
| Length | 2 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 800 µm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Schottky |
| Forward Current | 70 mA |
| Forward Voltage | 1 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Reverse Recovery Time | 100 ps |
| Average Rectified Current | 70 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 70 V |
| Element Configuration | Dual |
| Forward Surge Current (Ifsm) | 100 mA |
| Reverse Voltage | 70 V |
| Peak Non-Repetitive Surge Current | 100 mA |
| Reverse Current | 100 nA |
| Recovery Time | 100 ps |
| Schedule B | 8541100070 |
| Package Quantity | 3000 |
Stock: 18787
Distributors
pcbx
pcbxUnit Price$0.20690
Ext.Price$0.20690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20690 | $0.20690 |
| 10 | $0.15645 | $1.56450 |
| 50 | $0.11738 | $5.86900 |
| 100 | $0.08806 | $8.80600 |
| 500 | $0.05942 | $29.71000 |
| 1000 | $0.04693 | $46.93000 |
| 3000 | $0.04129 | $123.87000 |
| 5000 | $0.03449 | $172.45000 |
| 10000 | $0.02881 | $288.10000 |
