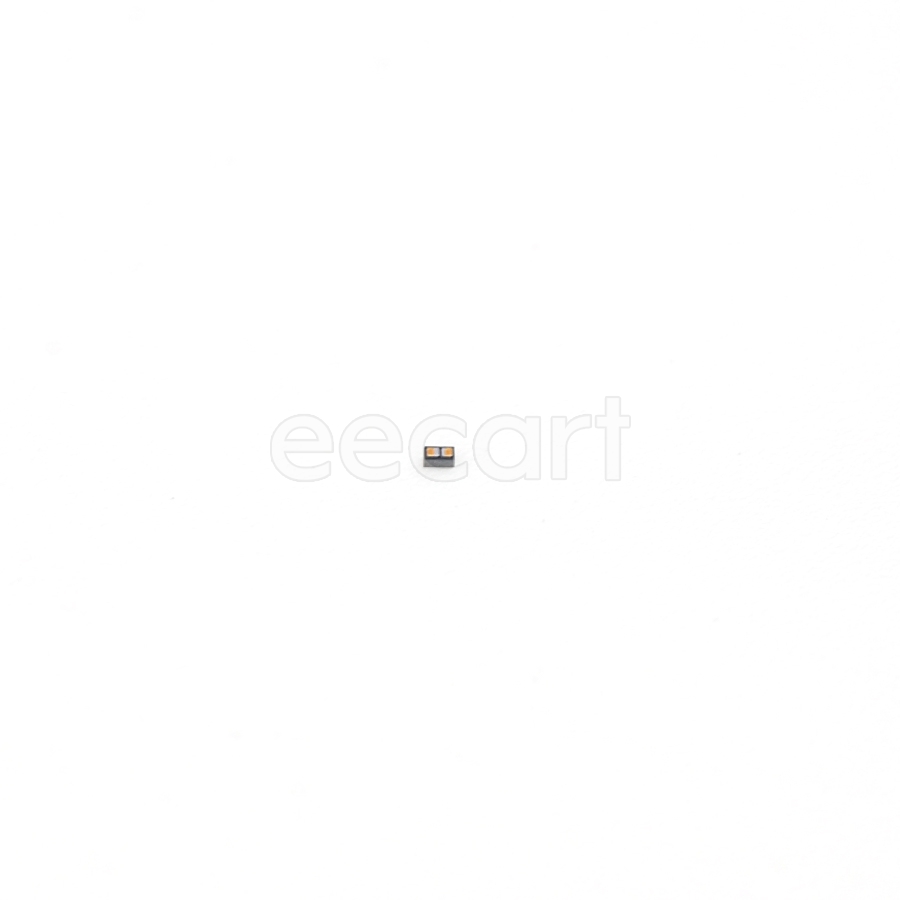

BAT30F4
Manufacturer:
STMicroelectronics
Mfr.Part #:
BAT30F4
Datasheet:
Description:
Schottky Diodes 0201(0603 Metric) SMD/SMT Single Forward Current:300 mA Forward Voltage:310 mV Max Repetitive Reverse Voltage (Vrrm):30 V Max Forward Surge Current (Ifsm):4 A
| Parameter | Value |
|---|---|
| Capacitance | 10 pF |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Metric) | 0603 |
| Number of Pins | 2 |
| Height | 320 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Manufacturer Package Identifier | BAT30F4 |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Type | Schottky |
| Forward Current | 300 mA |
| Forward Voltage | 310 mV |
| Average Rectified Current | 300 mA |
| Max Reverse Voltage (DC) | 30 V |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 4 A |
| Reverse Voltage | 30 V |
| Max Junction Temperature (Tj) | 150 °C |
| Peak Non-Repetitive Surge Current | 4 A |
| Reverse Current | 50 µA |
Stock: 22256
Distributors
pcbx
pcbxUnit Price$0.11883
Ext.Price$0.11883
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11883 | $0.11883 |
| 10 | $0.06130 | $0.61300 |
| 50 | $0.05575 | $2.78750 |
| 100 | $0.05070 | $5.07000 |
| 500 | $0.04129 | $20.64500 |
| 1000 | $0.03753 | $37.53000 |
| 3000 | $0.03658 | $109.74000 |
| 5000 | $0.03565 | $178.25000 |
| 10000 | $0.02436 | $243.60000 |
