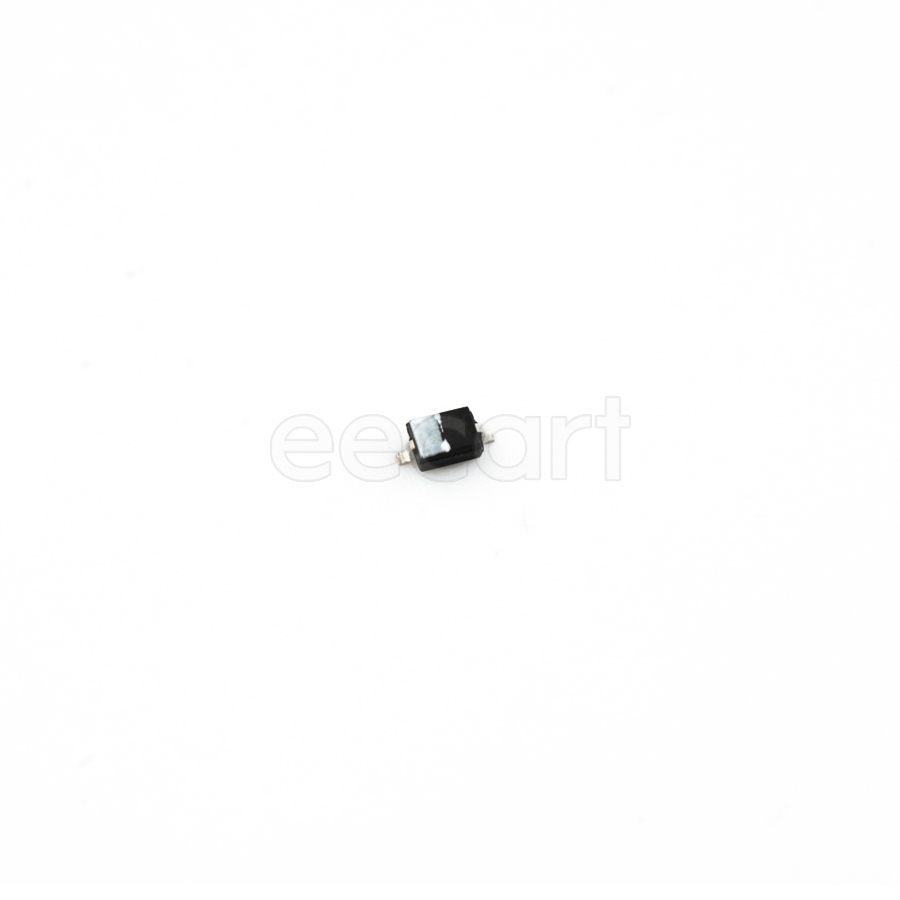

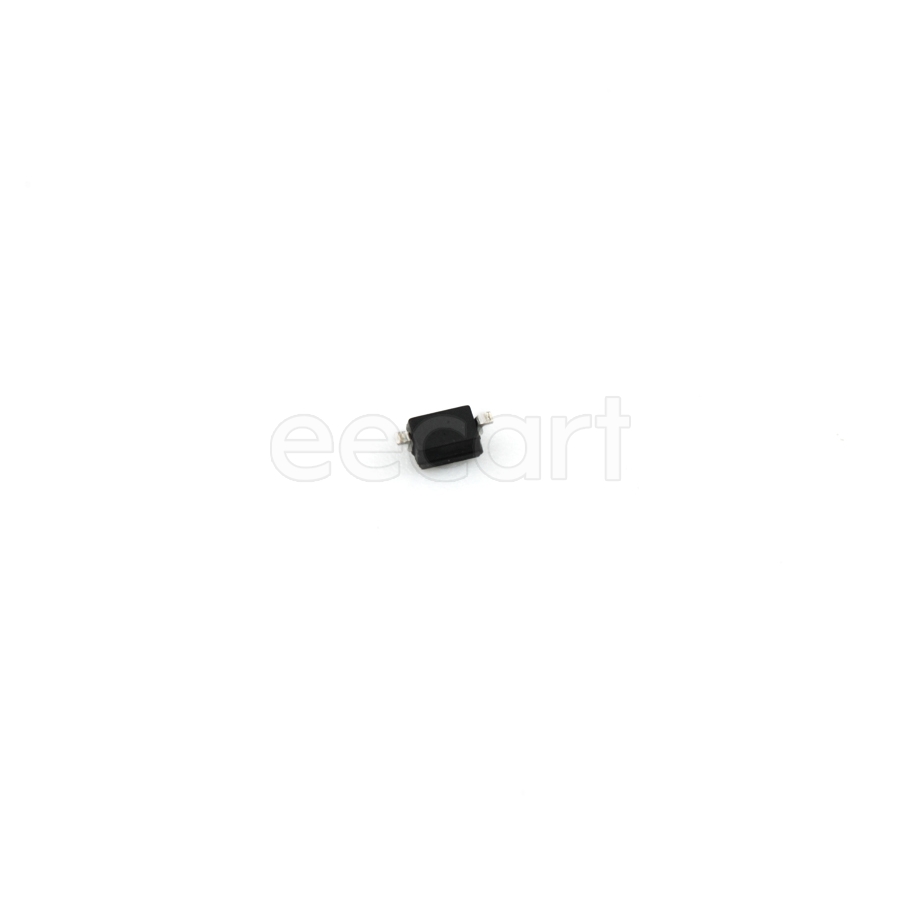

BAT5403WE6327HTSA1
Manufacturer:
Infineon
Mfr.Part #:
BAT5403WE6327HTSA1
Datasheet:
Description:
Schottky Diodes SOD-323-2 SMD/SMT Single Forward Current:200 mA Forward Voltage:800 mV Max Repetitive Reverse Voltage (Vrrm):30 V Max Forward Surge Current (Ifsm):600 mA
| Parameter | Value |
|---|---|
| Capacitance | 10 pF |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Type | Schottky |
| Forward Current | 200 mA |
| Forward Voltage | 800 mV |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Reverse Recovery Time | 5 ns |
| Average Rectified Current | 200 mA |
| Element Configuration | Single |
| Reverse Voltage | 30 V |
| Peak Non-Repetitive Surge Current | 600 mA |
| Reverse Current | 2 µA |
| Schedule B | 8541100070 |
| Package Quantity | 3000 |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Forward Surge Current (Ifsm) | 600 mA |
Stock: 8261
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.06694 | $0.66940 |
| 50 | $0.06206 | $3.10300 |
| 100 | $0.05754 | $5.75400 |
| 500 | $0.04257 | $21.28500 |
| 1000 | $0.04001 | $40.01000 |
| 3000 | $0.02505 | $75.15000 |
| 5000 | $0.02436 | $121.80000 |
