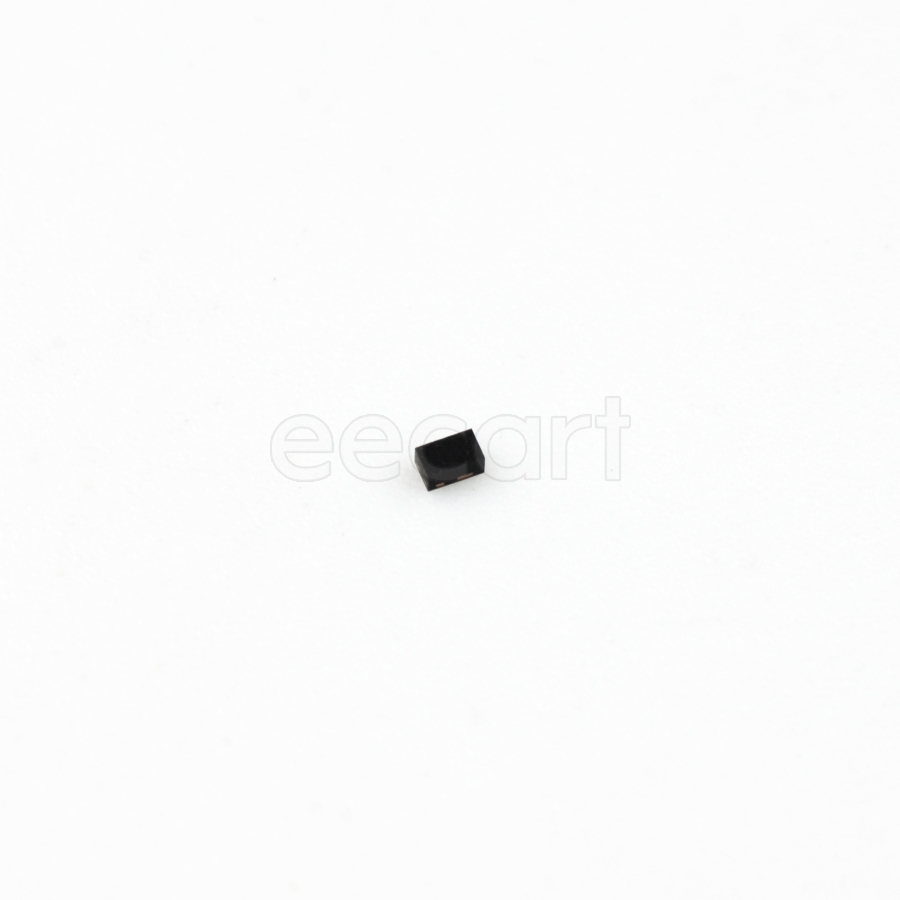

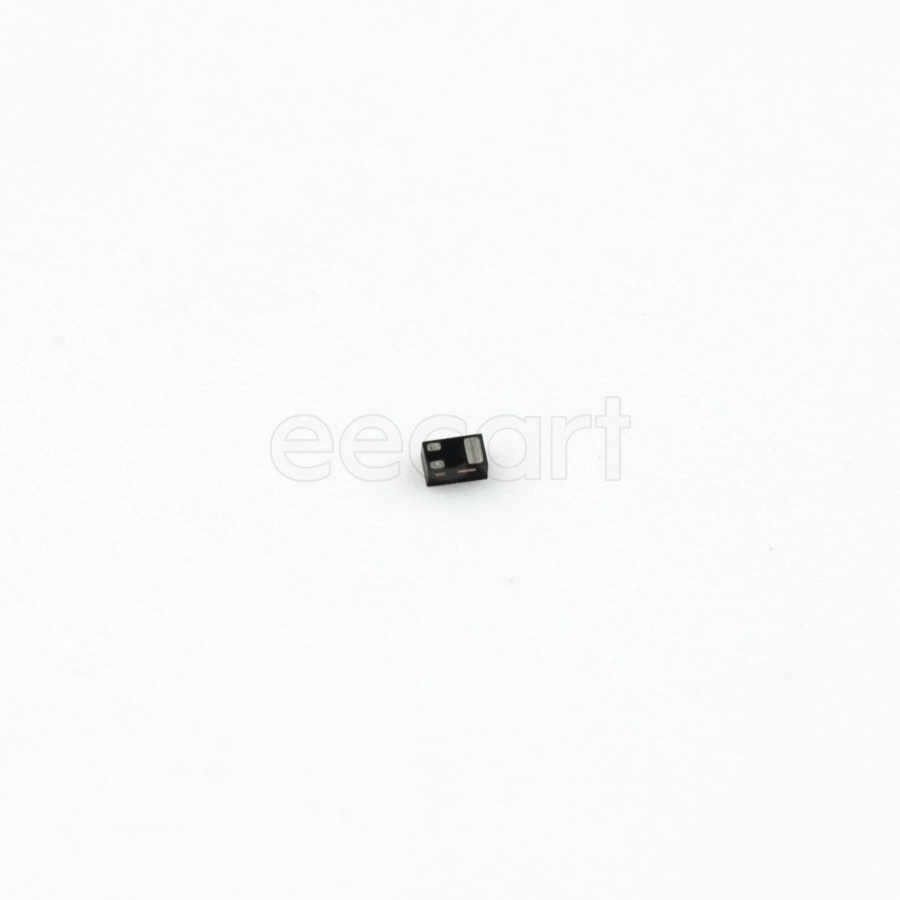

BAT54CM,315
Manufacturer:
Nexperia
Mfr.Part #:
BAT54CM,315
Datasheet:
Description:
Rectifier Diodes SOT-883 SMD/SMT Schottky Diodes & Rectifiers Dual Anode Common Cathode Forward Current:200 mA Forward Voltage:800 mV Reverse Voltage:30 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Type | Schottky Diodes & Rectifiers |
| Forward Current | 200 mA |
| Forward Voltage | 800 mV |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Power Dissipation | 250 mW |
| Average Rectified Current | 200 mA |
| Max Reverse Leakage Current | 2 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Dual Anode Common Cathode |
| Max Surge Current | 600 mA |
| Reverse Voltage | 30 V |
| Peak Non-Repetitive Surge Current | 600 mA |
| Reverse Current | 2 µA |
| Schedule B | 8541100070 |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY (Last Updated: 1 day ago) |
Stock: 210
Distributors
pcbx
pcbxUnit Price$2.29603
Ext.Price$2.29603
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.29603 | $2.29603 |
| 10 | $2.12035 | $21.20350 |
| 25 | $2.05097 | $51.27425 |
| 50 | $1.98386 | $99.19300 |
| 100 | $1.91895 | $191.89500 |
| 300 | $1.89277 | $567.83100 |
| 500 | $1.86696 | $933.48000 |
| 1000 | $1.84552 | $1845.52000 |
