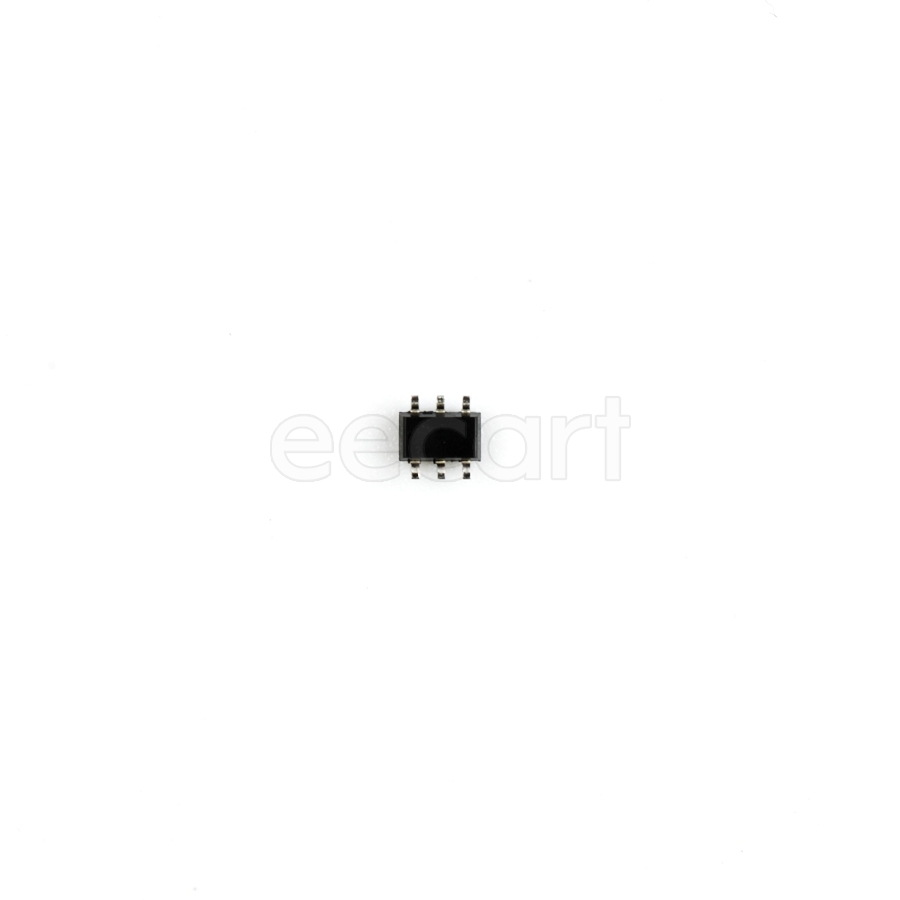

BAT754L,115
Manufacturer:
Nexperia
Mfr.Part #:
BAT754L,115
Datasheet:
Description:
Rectifier Diodes TSSOP-6 SMD/SMT Schottky Diodes Triple Forward Current:200 mA Forward Voltage:750 mV Reverse Voltage:30 V
| Parameter | Value |
|---|---|
| Capacitance | 10 pF |
| Length | 2.2 mm |
| Width | 1.35 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Height | 1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 4.535924 g |
| Contact Plating | Tin |
| Type | Schottky Diodes |
| Output Current | 1.4 A |
| Forward Current | 200 mA |
| Forward Voltage | 750 mV |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Ambient Temperature Range High | 125 °C |
| Average Rectified Current | 200 mA |
| Max Reverse Leakage Current | 2 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Triple |
| Max Surge Current | 600 mA |
| Forward Surge Current (Ifsm) | 600 mA |
| Reverse Voltage | 30 V |
| Max Junction Temperature (Tj) | 125 °C |
| Peak Non-Repetitive Surge Current | 600 mA |
| Reverse Current | 2 µA |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY (Last Updated: 1 day ago) |
Stock: 6
Distributors
pcbx
pcbxUnit Price$0.28915
Ext.Price$0.28915
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28915 | $0.28915 |
| 10 | $0.27503 | $2.75030 |
| 25 | $0.26160 | $6.54000 |
| 50 | $0.24883 | $12.44150 |
| 100 | $0.23598 | $23.59800 |
| 300 | $0.22379 | $67.13700 |
| 500 | $0.21224 | $106.12000 |
| 1000 | $0.20840 | $208.40000 |
| 3000 | $0.20462 | $613.86000 |
| 5000 | $0.19874 | $993.70000 |
