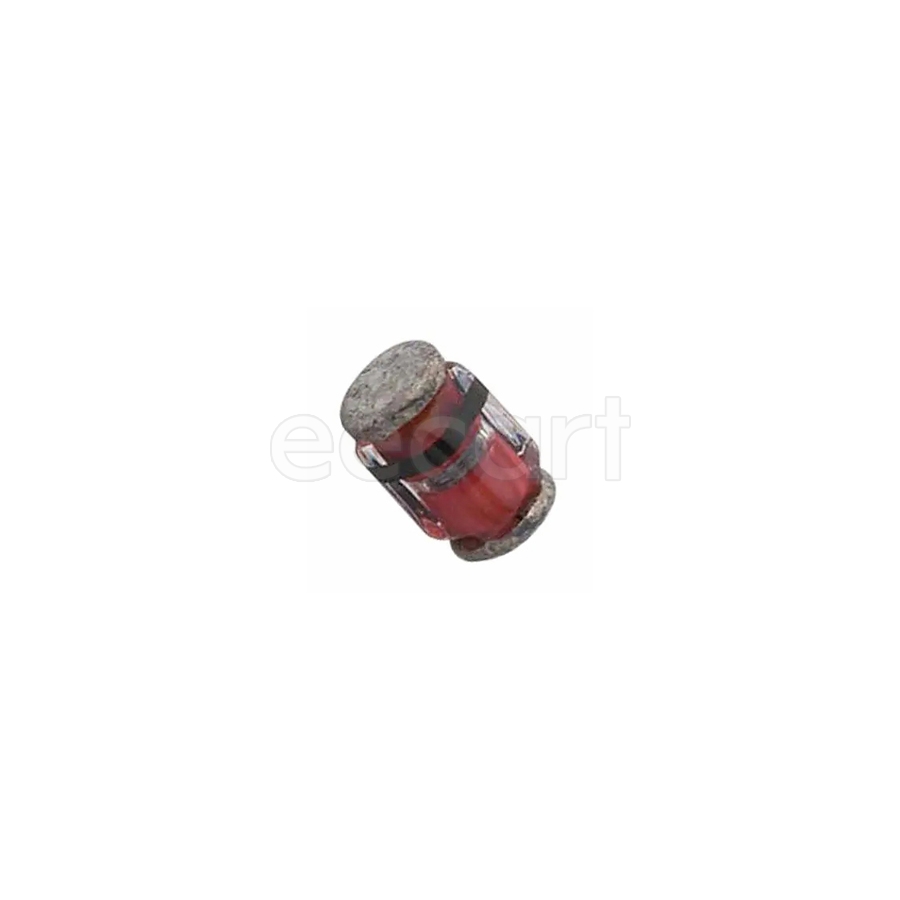

BAV303-TR
Manufacturer:
Vishay
Mfr.Part #:
BAV303-TR
Datasheet:
Description:
Rectifier Diodes MicroMELF SMD/SMT Switching Diode Single Forward Current:250 mA Forward Voltage:1 V Reverse Voltage:200 V
| Parameter | Value |
|---|---|
| Capacitance | 1.5 pF |
| Length | 2 mm |
| Width | 1.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 1.2 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Silver |
| Type | Switching Diode |
| Current Rating | 250 mA |
| Forward Current | 250 mA |
| Forward Voltage | 1 V |
| Reverse Recovery Time | 50 ns |
| Average Rectified Current | 250 mA |
| Max Reverse Leakage Current | 100 nA |
| Zener Voltage | 250 V |
| Max Repetitive Reverse Voltage (Vrrm) | 250 V |
| Element Configuration | Single |
| Max Surge Current | 1 A |
| Forward Surge Current (Ifsm) | 1 A |
| Reverse Voltage | 200 V |
| Max Junction Temperature (Tj) | 175 °C |
| Peak Non-Repetitive Surge Current | 1 A |
| Reverse Current | 100 nA |
| Recovery Time | 50 ns |
| Schedule B | 8541100070 |
Stock: 8109
Distributors
pcbx
pcbxUnit Price$0.09404
Ext.Price$0.09404
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09404 | $0.09404 |
| 10 | $0.06574 | $0.65740 |
| 50 | $0.05846 | $2.92300 |
| 100 | $0.05198 | $5.19800 |
| 500 | $0.03941 | $19.70500 |
| 1000 | $0.03505 | $35.05000 |
| 3000 | $0.02963 | $88.89000 |
| 5000 | $0.02505 | $125.25000 |
| 10000 | $0.01941 | $194.10000 |
