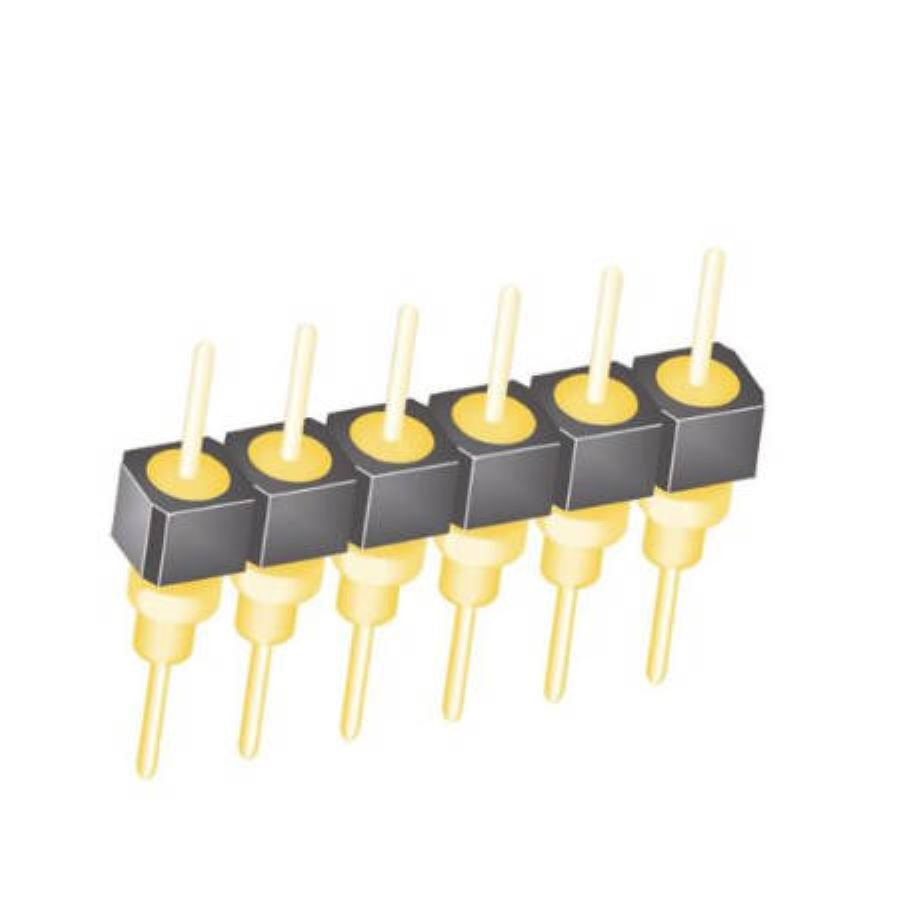

BBS-106-G-A
Manufacturer:
Samtec
Mfr.Part #:
BBS-106-G-A
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Housing Color | Black |
| Contact Mating Length | 3.175 mm |
| Mating Post Length | 3.18 mm |
| Termination Post Length | 3.18 mm |
Stock: 117
Distributors
pcbx
pcbxUnit Price$2.00224
Ext.Price$2.00224
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.00224 | $2.00224 |
| 10 | $1.78241 | $17.82410 |
| 25 | $1.58672 | $39.66800 |
| 50 | $1.41251 | $70.62550 |
| 100 | $1.25743 | $125.74300 |
| 300 | $1.11938 | $335.81400 |
| 500 | $0.99648 | $498.24000 |
| 1000 | $0.88708 | $887.08000 |
| 3000 | $0.78969 | $2369.07000 |
| 5000 | $0.70299 | $3514.95000 |
| 10000 | $0.62581 | $6258.10000 |
