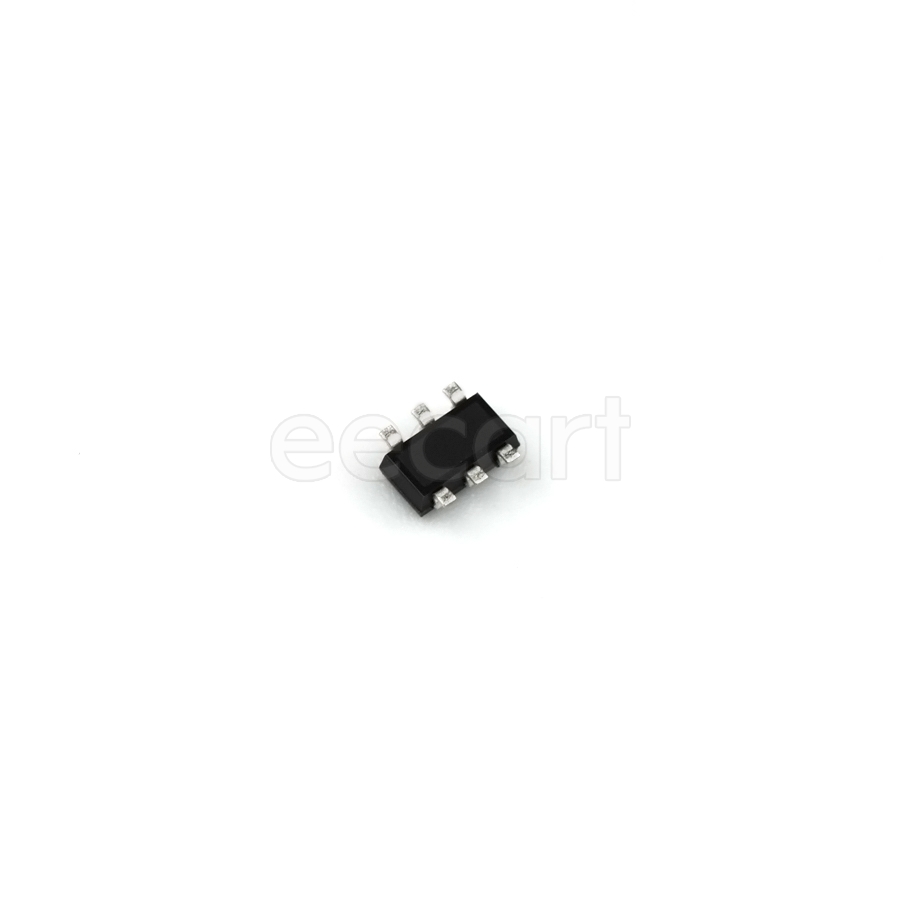

BCR321UE6327
Manufacturer:
Infineon
Mfr.Part #:
BCR321UE6327
Datasheet:
Description:
LED Drivers SC74-6 SMD/SMT 250 mA
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 6 |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 10 kHz |
| Current Rating | 250 mA |
| Min Input Voltage | 1.4 V |
| Output Current | 250 mA |
| Output Voltage | 16 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Supply Voltage | 24 V |
| Min Supply Voltage | 1.4 V |
| Power Dissipation | 1 W |
| Max Output Current | 250 mA |
| Number of Channels | 1 |
| Switching Frequency | 10 kHz |
| Max Input Voltage | 27 V |
| Number of Outputs | 1 |
| Output Current per Channel | 250 mA |
| Schedule B | 8542390000 |
| Package Quantity | 3000 |
| Applications | Lighting, Signage |
| Internal Switch | Yes |
| Type | Linear |
