BCR573E6327HTSA1
Manufacturer:
Infineon
Mfr.Part #:
BCR573E6327HTSA1
Datasheet:
Description:

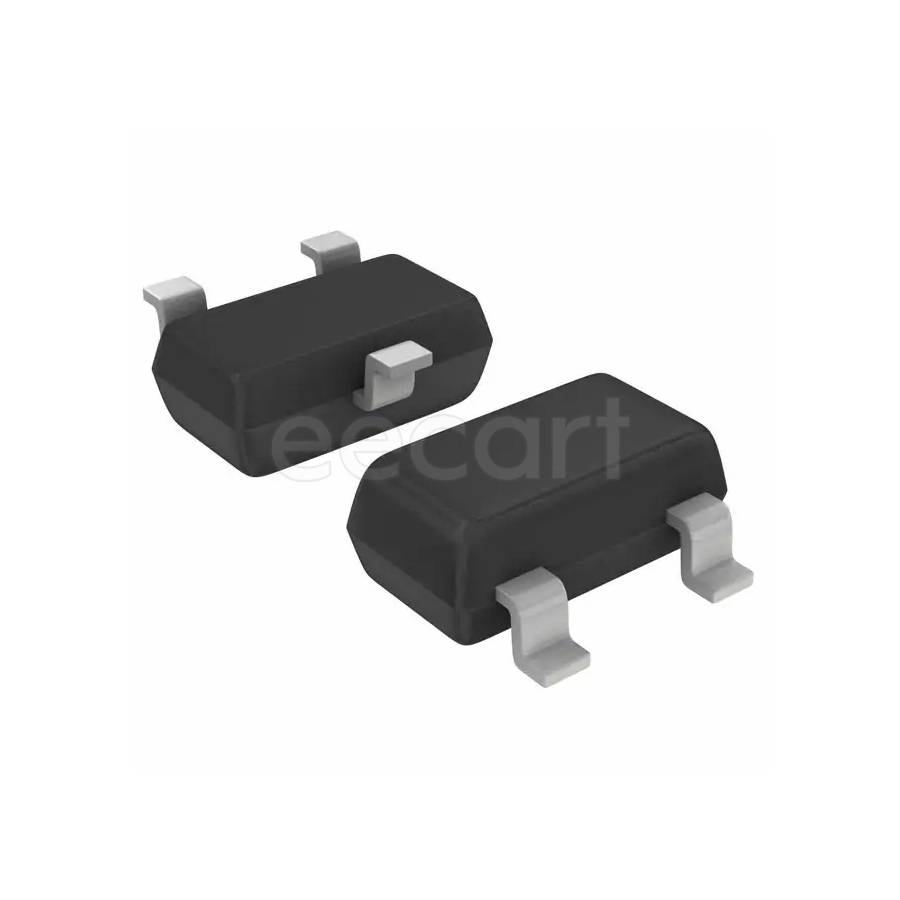

BJTs SOT-3 SMD/SMT PNP 330 mW Collector Base Voltage (VCBO):5 V Collector Emitter Voltage (VCEO):50 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | -50 V |
| Length | 2.9 mm |
| Width | 1.3 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 900 µm |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | PNP |
| Current Rating | -500 mA |
| Lifecycle Status | NRND (Last Updated: 1 year ago) |
| Max Power Dissipation | 330 mW |
| Power Dissipation | 330 mW |
| Max Collector Current | 500 mA |
| Collector Emitter Breakdown Voltage | 50 V |
| Transition Frequency | 150 MHz |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 50 V |
| Max Breakdown Voltage | 50 V |
| Collector Base Voltage (VCBO) | 5 V |
| Collector Emitter Saturation Voltage | 300 mV |
| hFE Min | 70 |
| Schedule B | 8541210080 |
| Package Quantity | 3000 |
| Input Resistance | 1 kΩ |
| Max Cutoff Collector Current | 100 nA |
| Transistor Type | PNP |
