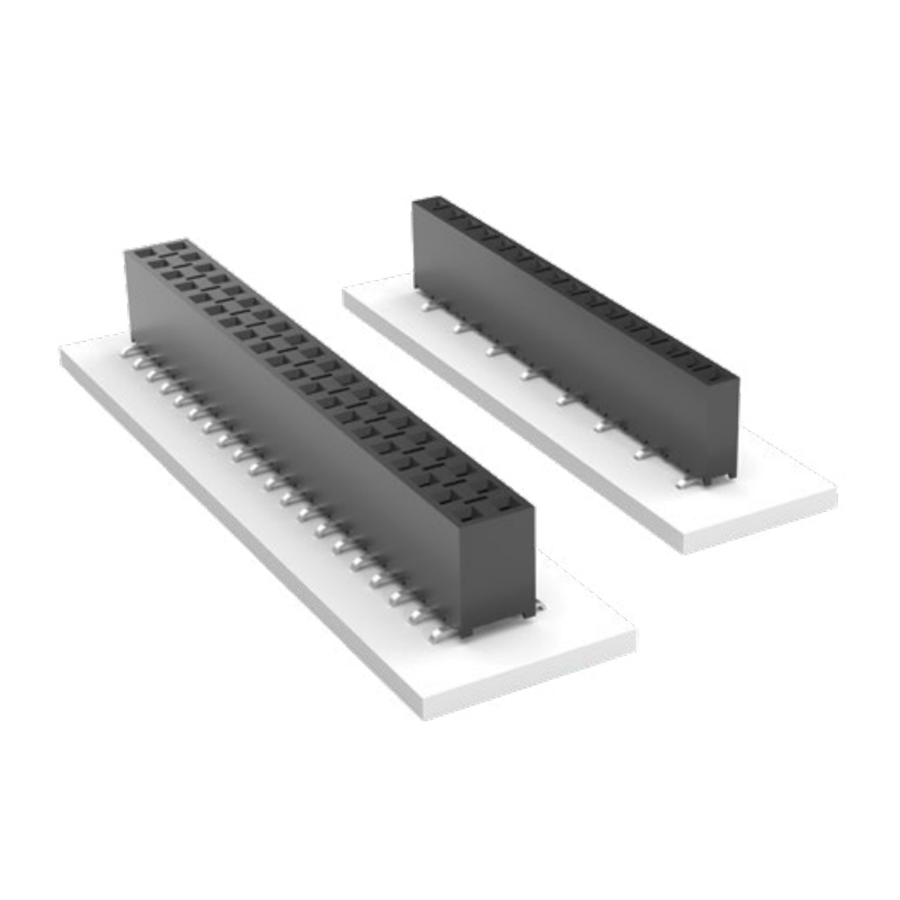

BCS-107-L-D-TE
Manufacturer:
Samtec
Mfr.Part #:
BCS-107-L-D-TE
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 17.78 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 5.9 A |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 14 |
| Connector Type | Receptacle |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 475 V |
| Housing Color | Black |
Stock: 2
Distributors
pcbx
pcbxUnit Price$2.66438
Ext.Price$2.66438
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.66438 | $2.66438 |
| 10 | $2.59805 | $25.98050 |
| 25 | $2.57758 | $64.43950 |
| 50 | $2.55728 | $127.86400 |
| 100 | $2.53713 | $253.71300 |
