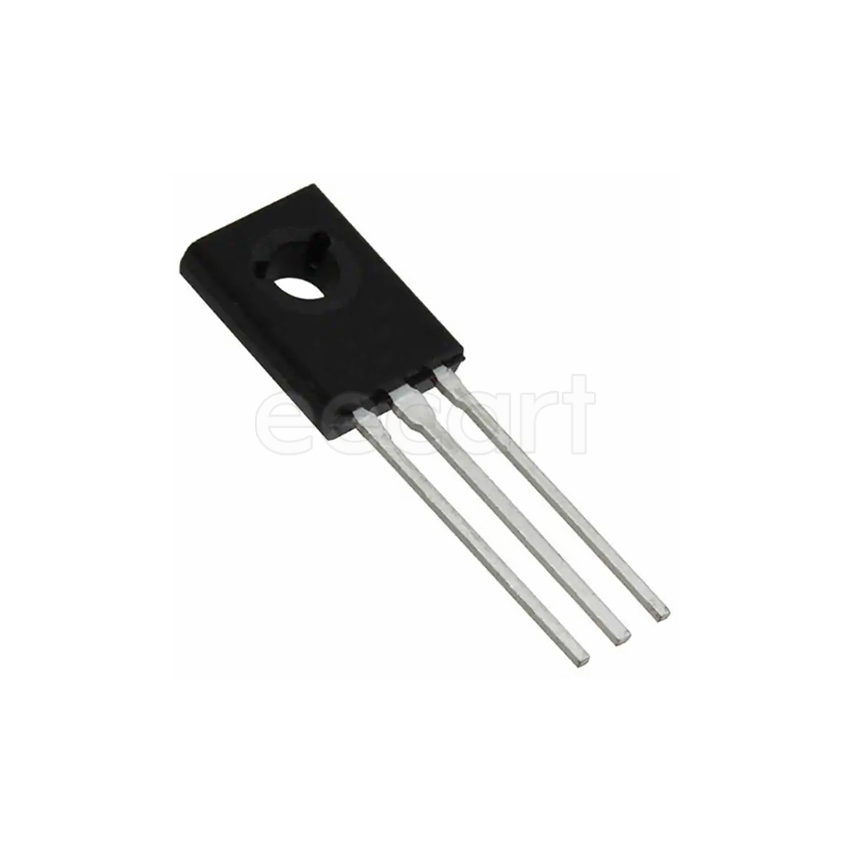

BD140
Manufacturer:
STMicroelectronics
Mfr.Part #:
BD140
Datasheet:
Description:
BJTs SOT-32-3 Through Hole PNP 1.25 W Collector Base Voltage (VCBO):80 V Collector Emitter Voltage (VCEO):80 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | -80 V |
| Length | 7.8 mm |
| Width | 2.7 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 10.8 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | PNP |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Current Rating | -1.5 A |
| Max Power Dissipation | 1.25 W |
| Power Dissipation | 1.25 W |
| Max Collector Current | 3 A |
| Collector Emitter Breakdown Voltage | 80 V |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 80 V |
| Max Breakdown Voltage | 80 V |
| Collector Base Voltage (VCBO) | 80 V |
| Collector Emitter Saturation Voltage | 500 mV |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 40 |
| Max Cutoff Collector Current | 100 nA |
| Transistor Type | PNP |
Stock: 229
Distributors
pcbx
pcbxUnit Price$0.19066
Ext.Price$0.19066
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19066 | $0.19066 |
| 10 | $0.16816 | $1.68160 |
| 50 | $0.14832 | $7.41600 |
| 100 | $0.12694 | $12.69400 |
| 500 | $0.10864 | $54.32000 |
| 1000 | $0.10062 | $100.62000 |
| 3000 | $0.09320 | $279.60000 |
