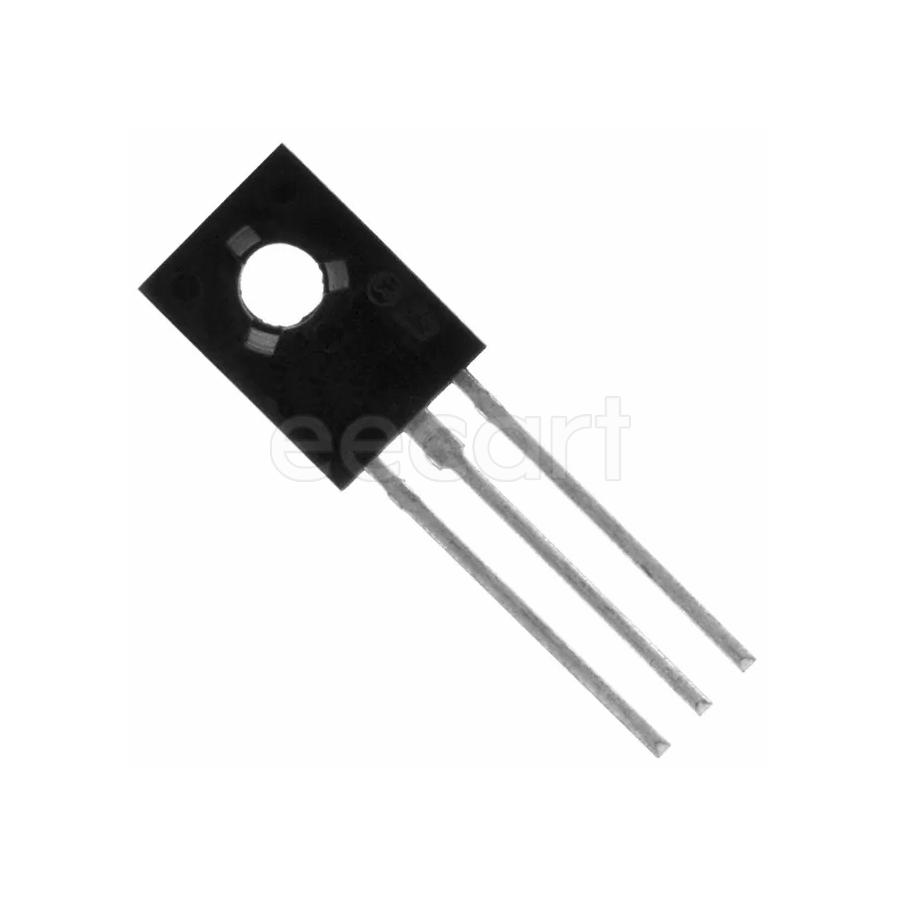

BD681
Manufacturer:
STMicroelectronics
Mfr.Part #:
BD681
Datasheet:
Description:
BJTs SOT-32-3 Through Hole NPN 40 W Collector Base Voltage (VCBO):100 V Collector Emitter Voltage (VCEO):100 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 7.8 mm |
| Width | 2.7 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 10.8 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Current Rating | 4 A |
| Lifecycle Status | Production (Last Updated: 6 months ago) |
| Max Power Dissipation | 40 W |
| Power Dissipation | 40 W |
| Max Collector Current | 4 A |
| Collector Emitter Breakdown Voltage | 100 V |
| Continuous Collector Current | 4 A |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 100 V |
| Collector Base Voltage (VCBO) | 100 V |
| Collector Emitter Saturation Voltage | 2.5 V |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 750 |
| Max Cutoff Collector Current | 500 µA |
| Transistor Type | NPN |
Stock: 62
Distributors
pcbx
pcbxUnit Price$0.35971
Ext.Price$0.35971
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35971 | $0.35971 |
| 10 | $0.30478 | $3.04780 |
| 50 | $0.25824 | $12.91200 |
| 100 | $0.22141 | $22.14100 |
| 500 | $0.18983 | $94.91500 |
| 1000 | $0.18057 | $180.57000 |
| 3000 | $0.17176 | $515.28000 |
| 5000 | $0.16337 | $816.85000 |
