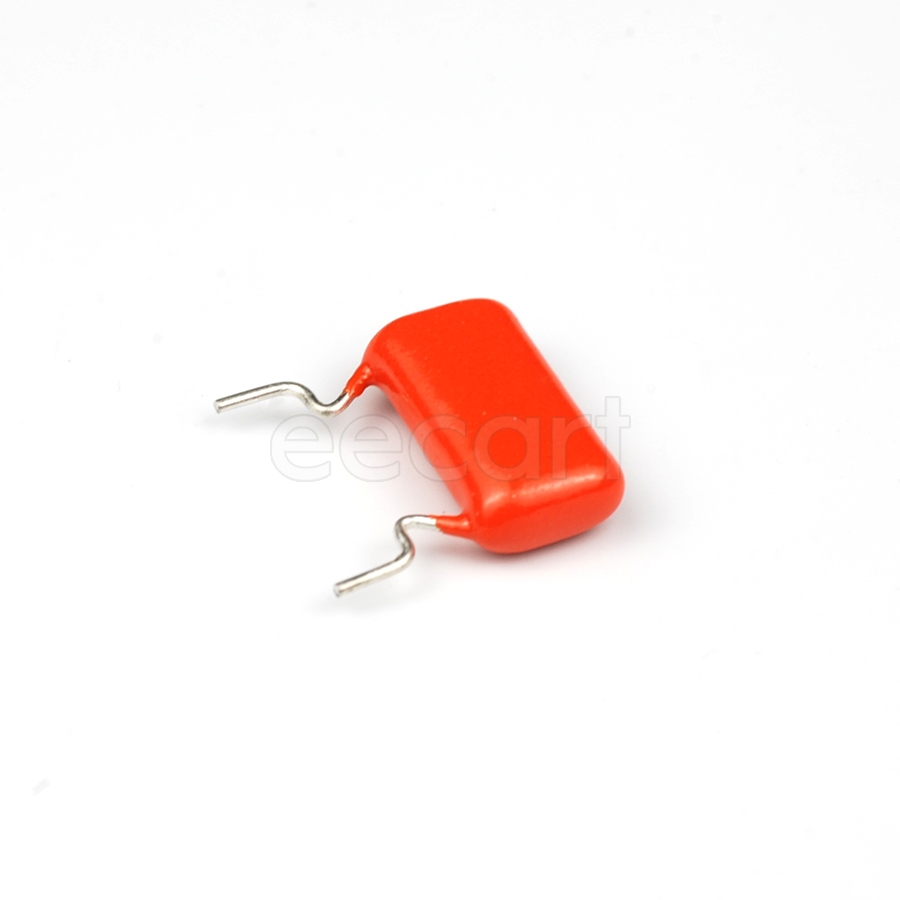

BFC236825474
Manufacturer:
Vishay
Mfr.Part #:
BFC236825474
Datasheet:
Description:
Film Capacitors Through Hole 470 nF 10 % Polyethylene Terephthalate(PET) Voltage Rating (DC):100 V Voltage Rating (AC):63 V
| Parameter | Value |
|---|---|
| Capacitance | 470 nF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 10 % |
| Height - Seated (Max) | 14.5 mm |
| Length | 17.5 mm |
| Width | 5.5118 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 63 V |
| Number of Pins | 2 |
| Height | 14.5 mm |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| Depth | 5.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 15 mm |
| Insulation Resistance | 30 GΩ |
| Voltage | 63 V |
| REACH SVHC | Unknown |
| Dielectric Material | Polyester |
| Contact Plating | Tin |
| Lead Length | 5 mm |
Stock: 1253
Distributors
pcbx
pcbxUnit Price$1.01394
Ext.Price$1.01394
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01394 | $1.01394 |
| 10 | $0.51980 | $5.19800 |
| 25 | $0.51865 | $12.96625 |
| 50 | $0.51751 | $25.87550 |
| 100 | $0.51637 | $51.63700 |
| 300 | $0.51509 | $154.52700 |
| 500 | $0.51381 | $256.90500 |
| 1000 | $0.50868 | $508.68000 |
| 3000 | $0.41891 | $1256.73000 |
