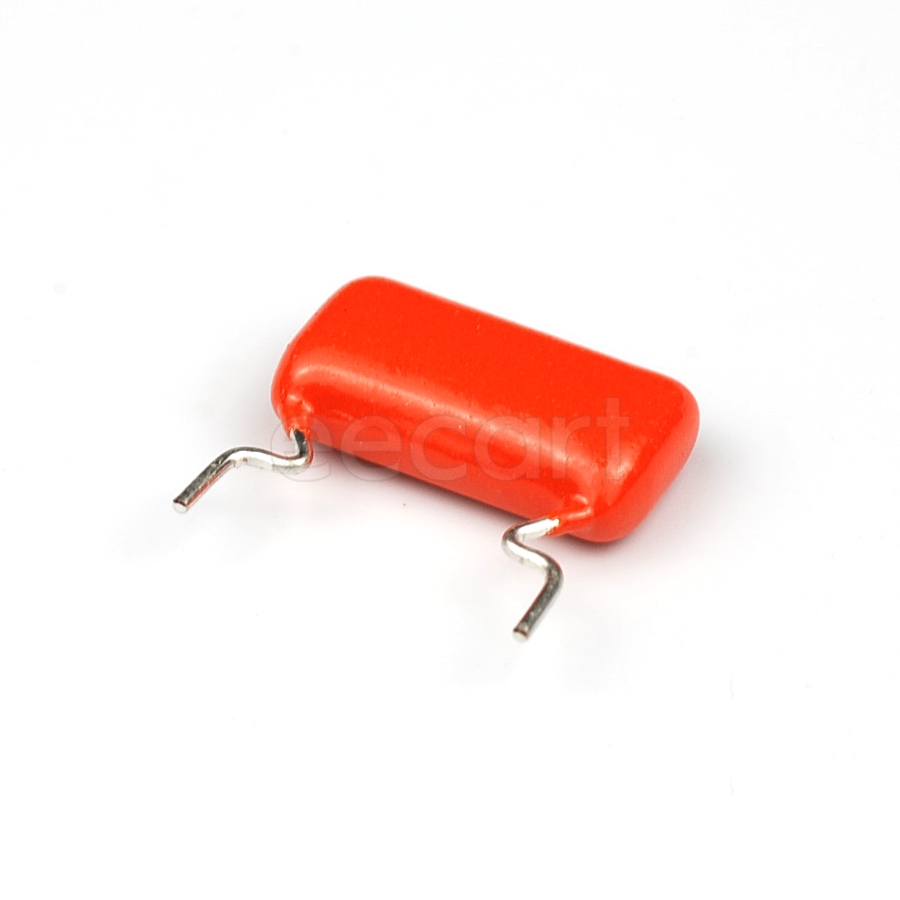

BFC236855472
Manufacturer:
Vishay
Mfr.Part #:
BFC236855472
Datasheet:
Description:
Film Capacitors Through Hole 4.7 nF 10 % Polyethylene Terephthalate(PET) Voltage Rating (DC):400 V Voltage Rating (AC):220 V
| Parameter | Value |
|---|---|
| Capacitance | 4.7 nF |
| Voltage Rating (DC) | 400 V |
| Tolerance | 10 % |
| Height - Seated (Max) | 13.2 mm |
| Length | 12.5 mm |
| Width | 4.0894 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 220 V |
| Number of Pins | 2 |
| Height | 13.2 mm |
| Packaging | Bulk |
| Depth | 4.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| Lead Pitch | 10 mm |
| Voltage | 400 V |
| Dielectric Material | Polyester |
| Contact Plating | Tin |
| Schedule B | 8532250010 |
Stock: 854
Distributors
pcbx
pcbxUnit Price$0.63180
Ext.Price$0.63180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63180 | $0.63180 |
| 10 | $0.34454 | $3.44540 |
| 25 | $0.34050 | $8.51250 |
| 50 | $0.33651 | $16.82550 |
| 100 | $0.33257 | $33.25700 |
| 300 | $0.30585 | $91.75500 |
| 500 | $0.28127 | $140.63500 |
| 1000 | $0.26746 | $267.46000 |
| 3000 | $0.25433 | $762.99000 |
| 5000 | $0.24184 | $1209.20000 |
| 10000 | $0.22997 | $2299.70000 |
