BFC237011155
Manufacturer:
Vishay
Mfr.Part #:
BFC237011155
Datasheet:
Description:

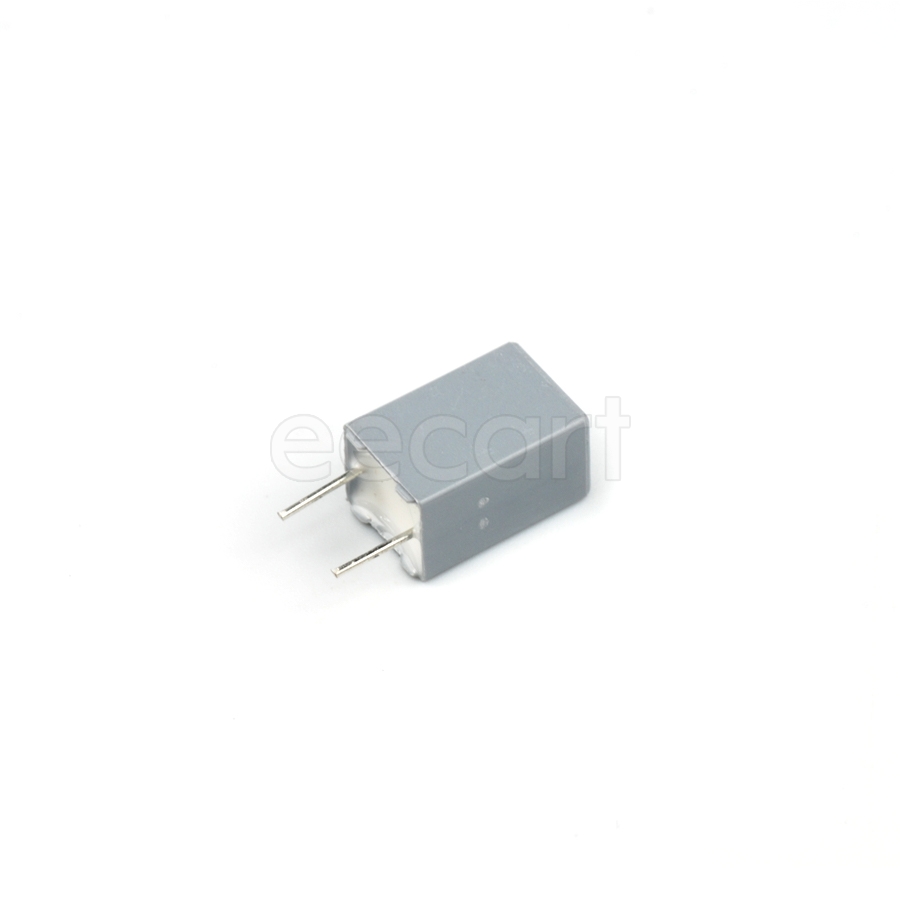

Film Capacitors Through Hole 1.5 µF 10 % Polyethylene Terephthalate(PET) Voltage Rating (DC):50 V Voltage Rating (AC):40 V
| Parameter | Value |
|---|---|
| Capacitance | 1.5 µF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 10 % |
| Height - Seated (Max) | 11 mm |
| Length | 7.2 mm |
| Width | 5.9944 mm |
| Termination | Radial |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 40 V |
| Number of Pins | 2 |
| Height | 11 mm |
| Voltage Rating | 63 V |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5.08 mm |
| REACH SVHC | Unknown |
| Dielectric Material | Polyester |
| Contact Plating | Tin |
| Lead Length | 4 mm |
| Packaging | Bulk |
Stock: 866
Distributors
pcbx
pcbxUnit Price$1.61496
Ext.Price$1.61496
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.61496 | $1.61496 |
| 10 | $1.17040 | $11.70400 |
| 25 | $1.15772 | $28.94300 |
| 50 | $1.14518 | $57.25900 |
| 100 | $1.13278 | $113.27800 |
| 300 | $1.10728 | $332.18400 |
| 500 | $1.08234 | $541.17000 |
| 1000 | $1.03387 | $1033.87000 |
| 3000 | $0.98757 | $2962.71000 |
| 5000 | $0.94335 | $4716.75000 |
| 10000 | $0.90110 | $9011.00000 |
