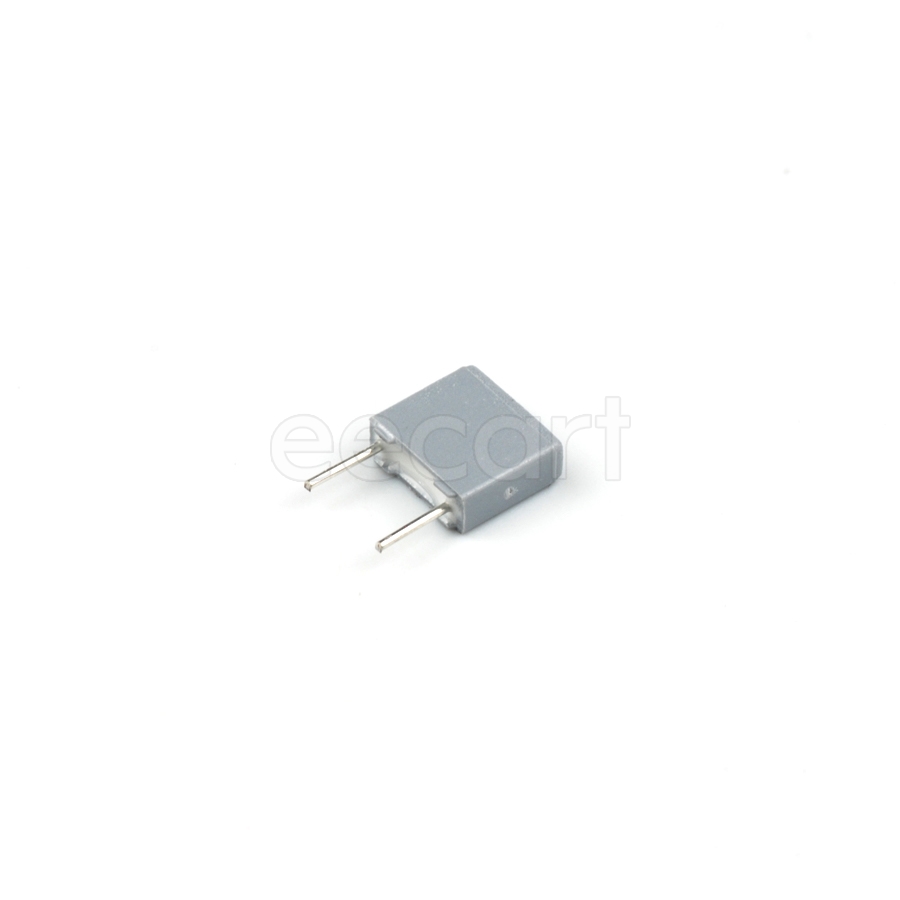

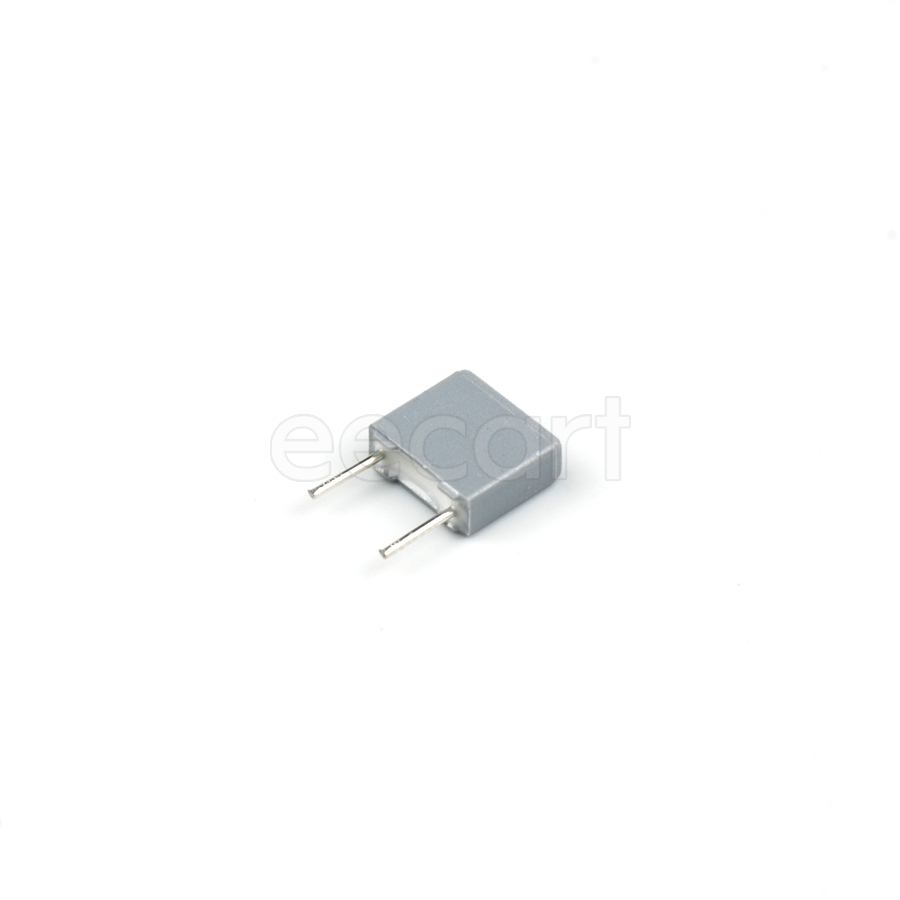

BFC237052222
Manufacturer:
Vishay
Mfr.Part #:
BFC237052222
Datasheet:
Description:
Film Capacitors Through Hole 2.2 nF 5 % Polyethylene Terephthalate(PET) Voltage Rating (DC):400 V Voltage Rating (AC):220 V
| Parameter | Value |
|---|---|
| Capacitance | 2.2 nF |
| Voltage Rating (DC) | 400 V |
| Tolerance | 5 % |
| Height - Seated (Max) | 6.5 mm |
| Length | 7.2 mm |
| Width | 2.5 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 220 V |
| Number of Pins | 2 |
| Height | 6.5 mm |
| Voltage Rating | 400 V |
| Depth | 2.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 5.08 mm |
| REACH SVHC | Unknown |
| Dielectric Material | Polyester |
| Contact Plating | Tin |
| Schedule B | 8532250010 |
| Packaging | Bulk |
Stock: 1879
Distributors
pcbx
pcbxUnit Price$0.53177
Ext.Price$0.53177
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53177 | $0.53177 |
| 10 | $0.28554 | $2.85540 |
| 25 | $0.25822 | $6.45550 |
| 50 | $0.23351 | $11.67550 |
| 100 | $0.21117 | $21.11700 |
| 300 | $0.21074 | $63.22200 |
| 500 | $0.21031 | $105.15500 |
| 1000 | $0.20263 | $202.63000 |
| 3000 | $0.19523 | $585.69000 |
| 5000 | $0.18810 | $940.50000 |
| 10000 | $0.18124 | $1812.40000 |
