BFC237353105
Manufacturer:
Vishay
Mfr.Part #:
BFC237353105
Datasheet:
Description:

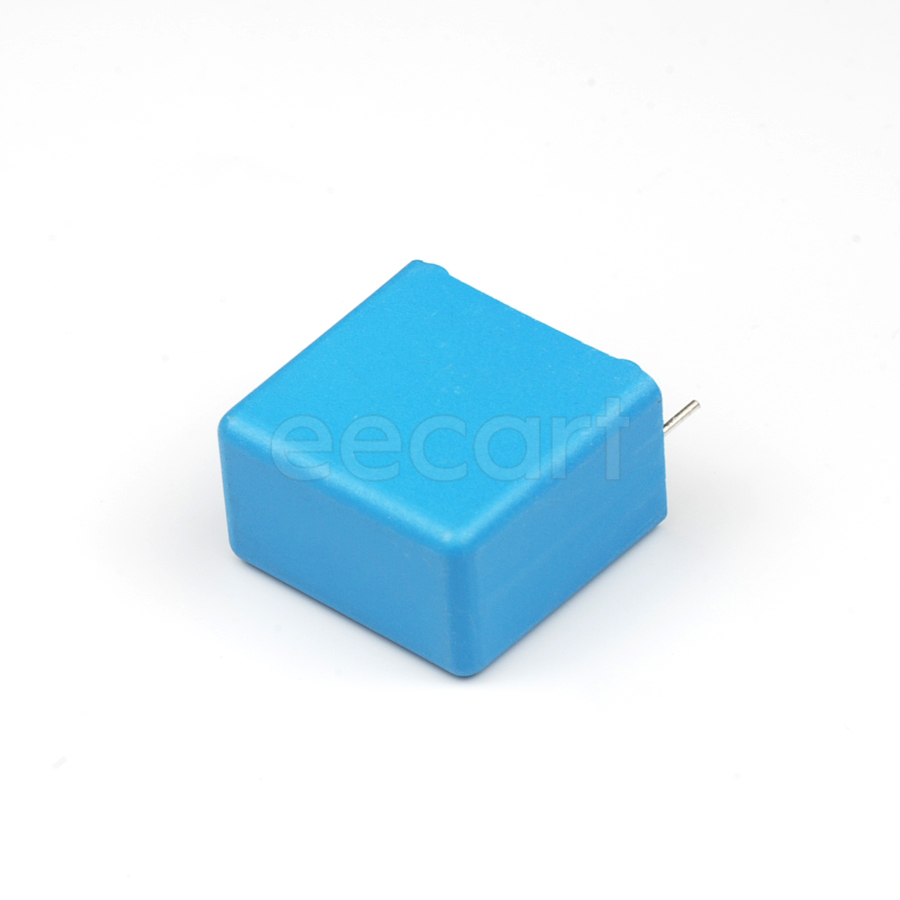

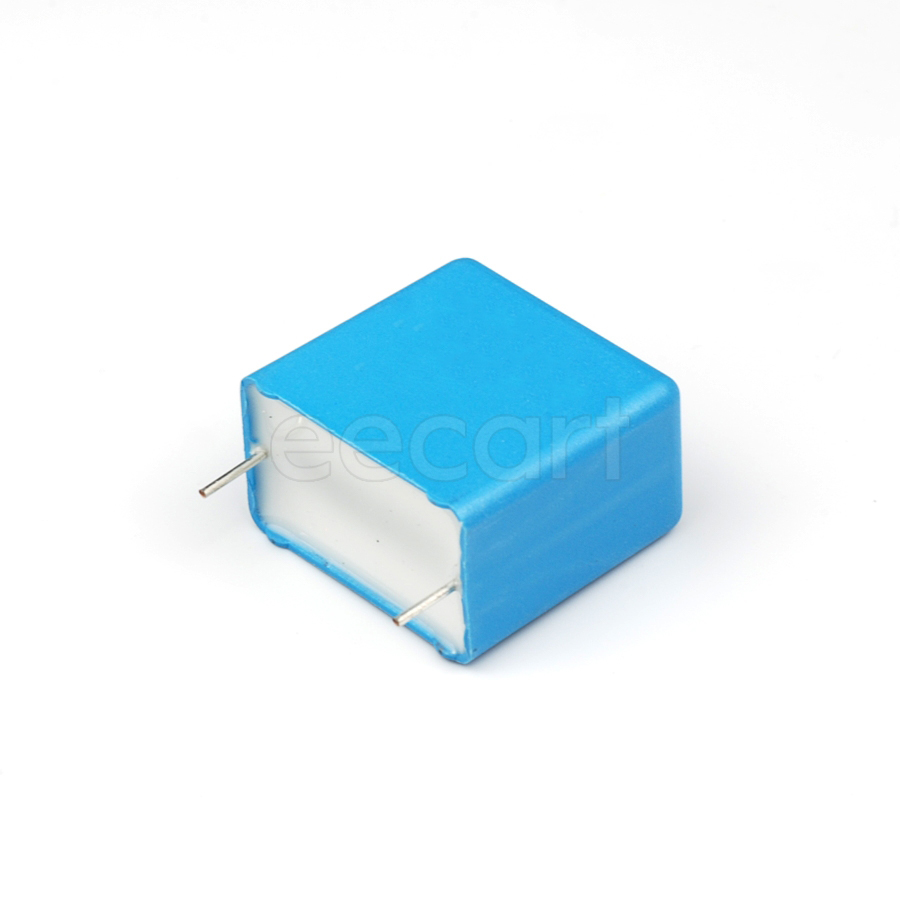

Film Capacitors Through Hole 1 µF 10 % Polyethylene Terephthalate(PET) Voltage Rating (DC):400 V Voltage Rating (AC):220 V
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Voltage Rating (DC) | 400 V |
| Tolerance | 10 % |
| Height - Seated (Max) | 19.51 mm |
| Length | 26 mm |
| Width | 10.0076 mm |
| Termination | Radial |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 220 V |
| Number of Pins | 2 |
| Height | 26 mm |
| Packaging | Bulk |
| Depth | 10 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| Lead Pitch | 22.5 mm |
| Insulation Resistance | 30 GΩ |
| Voltage | 400 V |
| Dielectric Material | Polyester |
| Contact Plating | Tin |
| Lead Length | 5 mm |
| Schedule B | 8532250010 |
Stock: 132
Distributors
pcbx
pcbxUnit Price$1.72696
Ext.Price$1.72696
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.72696 | $1.72696 |
| 10 | $0.93273 | $9.32730 |
| 25 | $0.91114 | $22.77850 |
| 50 | $0.89005 | $44.50250 |
| 100 | $0.86946 | $86.94600 |
| 300 | $0.79451 | $238.35300 |
| 500 | $0.72602 | $363.01000 |
| 1000 | $0.66343 | $663.43000 |
| 3000 | $0.64743 | $1942.29000 |
| 5000 | $0.63180 | $3159.00000 |
