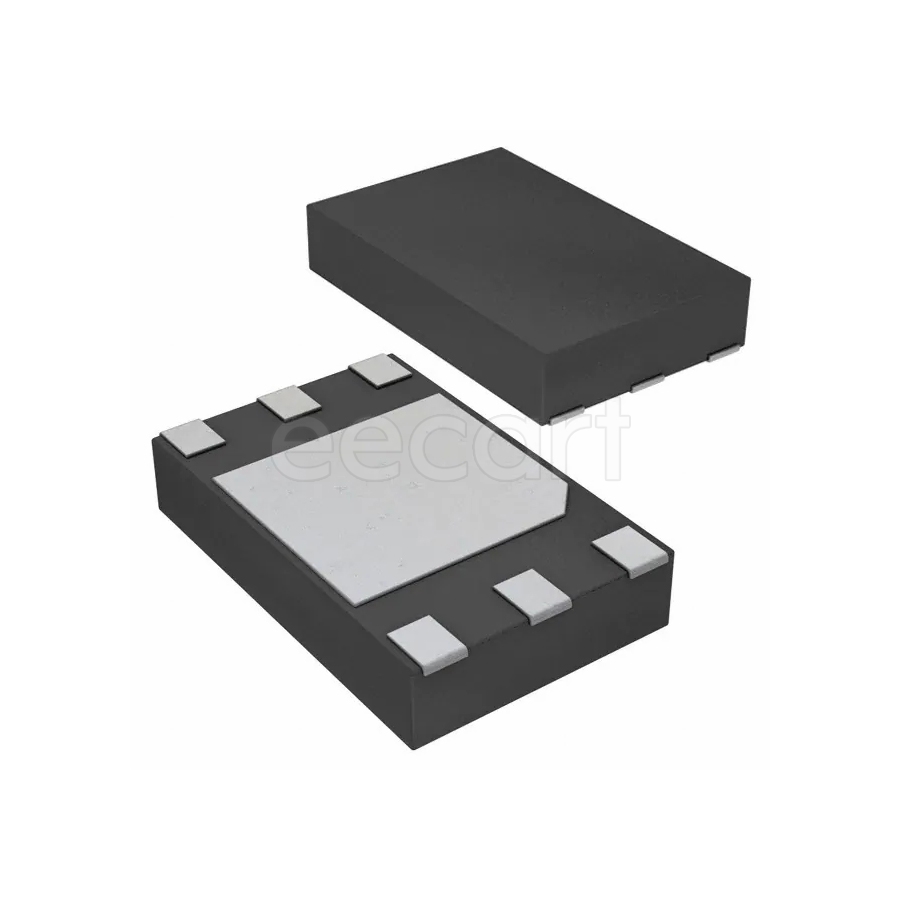

BGA715N7E6327XTSA2
Manufacturer:
Infineon
Mfr.Part #:
BGA715N7E6327XTSA2
Datasheet:
Description:
RF - Amplifiers TSNP-7 BGA 1.55 GHz to 1.615 GHz
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Height | 400 µm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Frequency | 1.55 GHz to 1.615 GHz |
| Current | 3.3 mA |
| Test Frequency | 1.575 GHz |
| Operating Supply Voltage | 1.5 V to 3.3 V |
| Lifecycle Status | NRND (Last Updated: 10 months ago) |
| Max Power Dissipation | 36 mW |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.5 V |
| Ambient Temperature Range High | 85 °C |
| Operating Supply Current | 3.3 mA |
| Gain | 20 dB |
| Noise Figure | 0.7 dB |
| Max Frequency | 1.615 GHz |
| Nominal Supply Current | 3.3 mA |
| Max Junction Temperature (Tj) | 150 °C |
| Schedule B | 8542330000 |
| Package Quantity | 7500 |
| Operating Frequency | 1.55 GHz to 1.615 GHz |
| RF Type | GPS/GNSS |
Stock: 8739
Distributors
pcbx
pcbxUnit Price$0.78835
Ext.Price$0.78835
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78835 | $0.78835 |
| 10 | $0.67948 | $6.79480 |
| 25 | $0.64121 | $16.03025 |
| 50 | $0.61410 | $30.70500 |
| 100 | $0.58815 | $58.81500 |
| 300 | $0.56026 | $168.07800 |
| 500 | $0.53369 | $266.84500 |
| 1000 | $0.51242 | $512.42000 |
| 3000 | $0.48405 | $1452.15000 |
| 5000 | $0.45725 | $2286.25000 |
