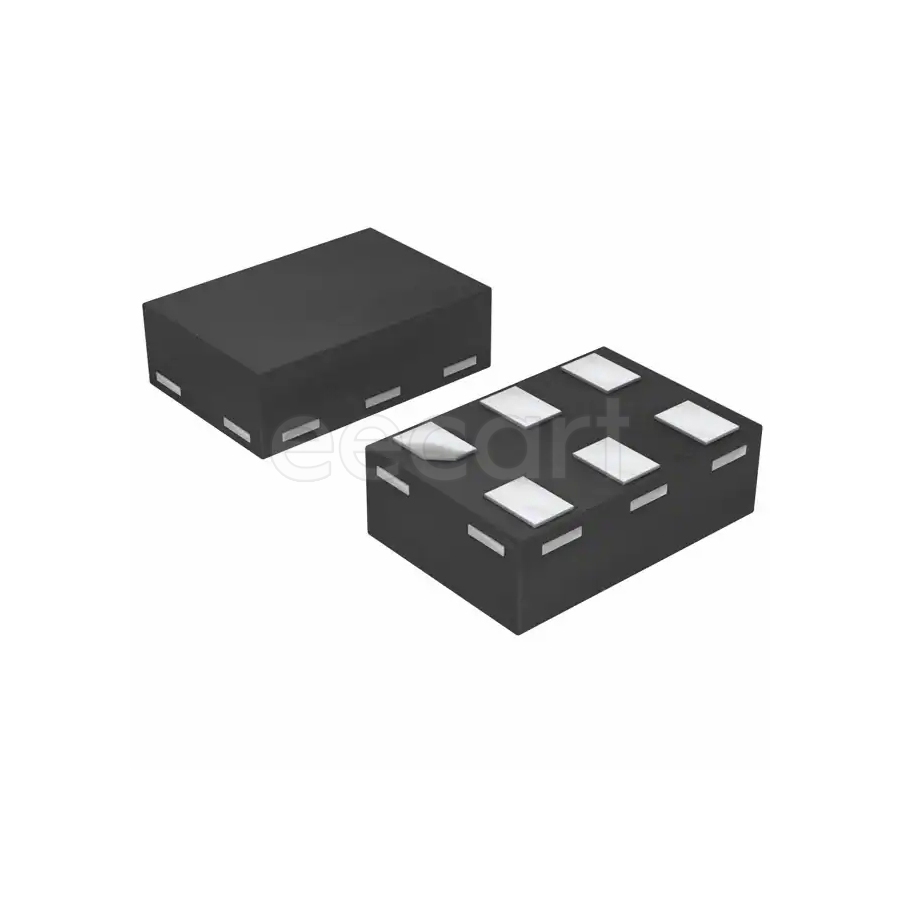

BGU8009,115
Manufacturer:
Nexperia
Mfr.Part #:
BGU8009,115
Datasheet:
Description:
RF - Amplifiers XSON-6 SMD/SMT 1559 MHz to 1610 MHz, 1452 MHz to 1496 MHz
| Parameter | Value |
|---|---|
| Contact Plating | Tin |
| Number of Pins | 6 |
| Frequency | 1.61 GHz |
| Gain | 18 dB |
| Max Frequency | 1.61 GHz |
| Max Operating Temperature | 85 °C |
| Max Power Dissipation | 55 mW |
| Max Supply Voltage | 3.1 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 1.5 V |
| Noise Figure | 0.65 dB |
| Nominal Supply Current | 10 mA |
| Operating Supply Current | 4.4 mA |
| Operating Supply Voltage | 1.8 V |
| P1dB | -7 dBm |
| Schedule B | 8542330000 |
| Test Frequency | 1.61 GHz |
| Packaging | Reel |
| Lead Free | Lead Free |
| Operating Frequency | 1559 MHz to 1610 MHz, 1452 MHz to 1496 MHz |
| RF Type | Galileo, GLONASS, GPS |
| RoHS | Compliant |
