BK/1A5018-10-R
Manufacturer:
Eaton
Mfr.Part #:
BK/1A5018-10-R
Datasheet:
Description:

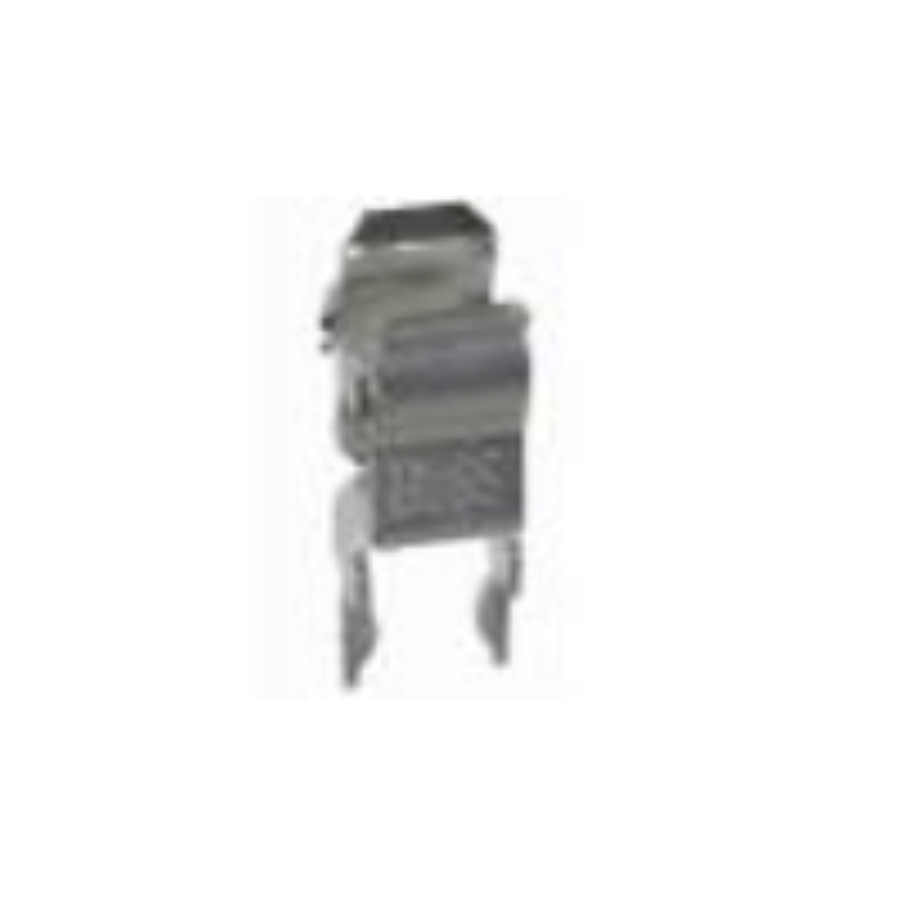

Fuse Holders Through Hole 15 A
| Parameter | Value |
|---|---|
| Length | 5.84 mm |
| Termination | PC Pin |
| Voltage Rating (AC) | 500 V |
| Packaging | Bulk |
| Depth | 4.57 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 907.18474 mg |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Type | With Straight Leads |
| Current Rating | 15 A |
| Number of Circuits | 1 |
| Orientation | Horizontal |
| Body Material | Brass, Bronze |
| Fuse Current | 15 A |
| Size | 5 mm |
| For Use With | 5 mm Dia Fuses |
Stock: 3888
Distributors
pcbx
pcbxUnit Price$0.25194
Ext.Price$0.25194
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25194 | $0.25194 |
| 10 | $0.19020 | $1.90200 |
| 50 | $0.15775 | $7.88750 |
| 100 | $0.14555 | $14.55500 |
| 500 | $0.12073 | $60.36500 |
| 1000 | $0.11135 | $111.35000 |
| 3000 | $0.10129 | $303.87000 |
| 5000 | $0.09214 | $460.70000 |
