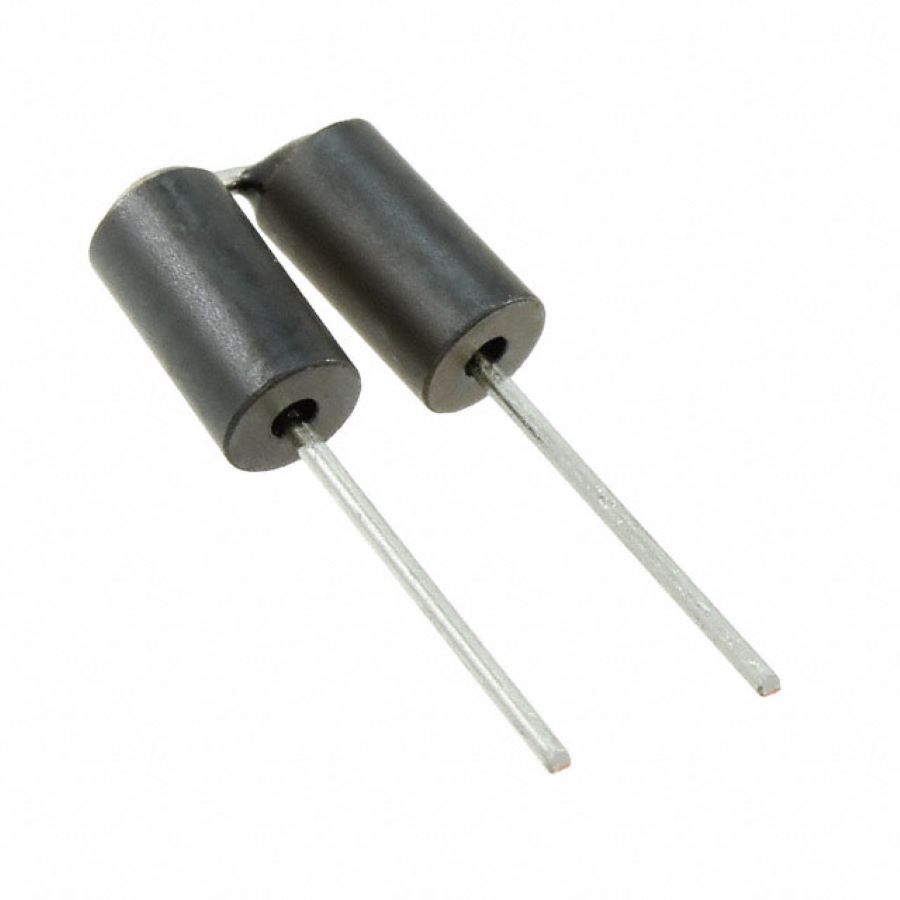

BL02RN2R1M2B
Manufacturer:
Murata
Mfr.Part #:
BL02RN2R1M2B
Datasheet:
Description:
Ferrite Beads and Chips 9.00mmL×7.50mmW×3.40mmH Through Hole 50 Ω 7 A
| Parameter | Value |
|---|---|
| Length | 9 mm |
| Width | 9 mm |
| Termination | Radial |
| Diameter | 3.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 50 Ω |
| Height | 7.5 mm |
| Material | Ferrite |
| Packaging | Bulk |
| Depth | 3.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 650 µm |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Tin |
| Impedance | 50 Ω |
| Lead/Base Style | Radial |
| Frequency | 1 GHz |
| Current Rating | 7 A |
| DC Resistance (DCR) | 20 mΩ |
| Max Current Rating | 7 A |
| Test Frequency | 1 MHz |
| Military Standard | Not |
| Lifecycle Status | Obsolete (Last Updated: 5 days ago) |
| Shielding | Unshielded |
| Number of Lines | 1 |
| Inductance | 1.1 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 7 A |
| Max Frequency | 1 GHz |
| Max DC Current | 7 A |
| Series Resistance | 20 mΩ |
| DC Current | 7 A |
| Schedule B | 8504500000 |
Out of Stock
Distributors
--
--Unit Price$--
Ext.Price$--
| Qty | Unit Price | Ext.Price |
|---|---|---|
No data | ||
