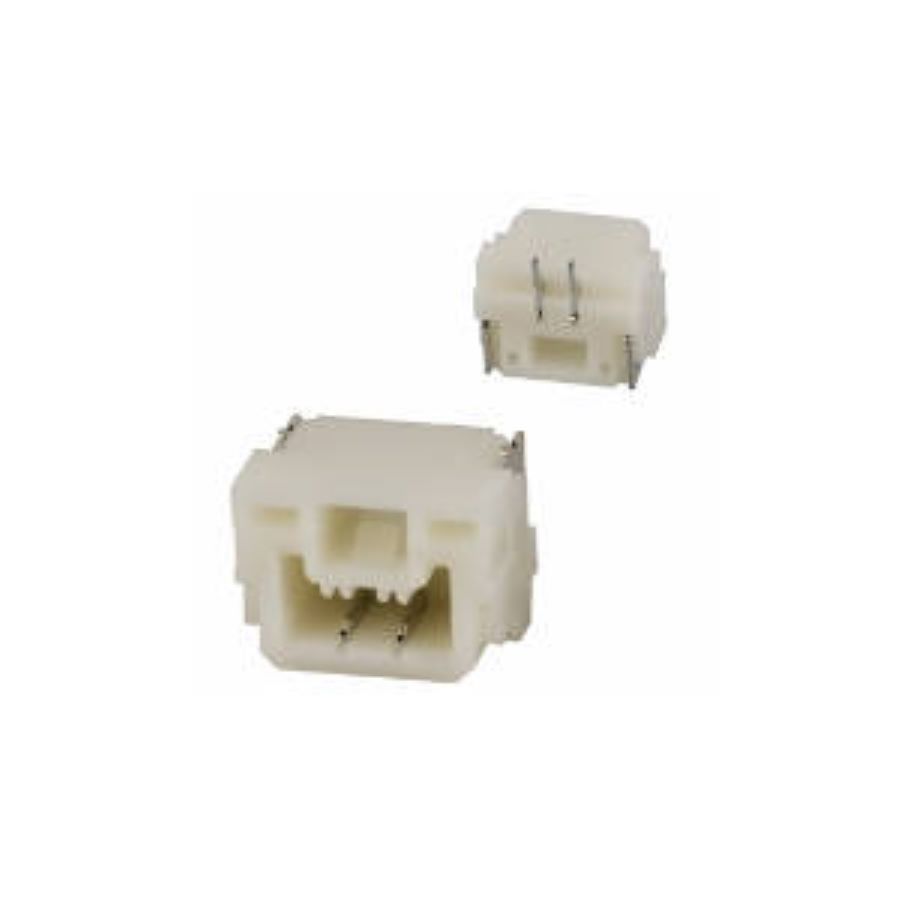

BM02B-GHS-TBT(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
BM02B-GHS-TBT(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:2 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Orientation | Straight |
| Gender | Male Pin |
| Number of Contacts | 2 |
| Connector Type | Header |
| Wire/Cable Gauge | 26 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Housing Color | Natural |
Stock: 17199
Distributors
pcbx
pcbxUnit Price$0.11885
Ext.Price$0.11885
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11885 | $0.11885 |
| 10 | $0.10612 | $1.06120 |
| 50 | $0.09475 | $4.73750 |
| 100 | $0.08308 | $8.30800 |
| 500 | $0.07285 | $36.42500 |
| 1000 | $0.07103 | $71.03000 |
| 3000 | $0.06925 | $207.75000 |
| 5000 | $0.06752 | $337.60000 |
