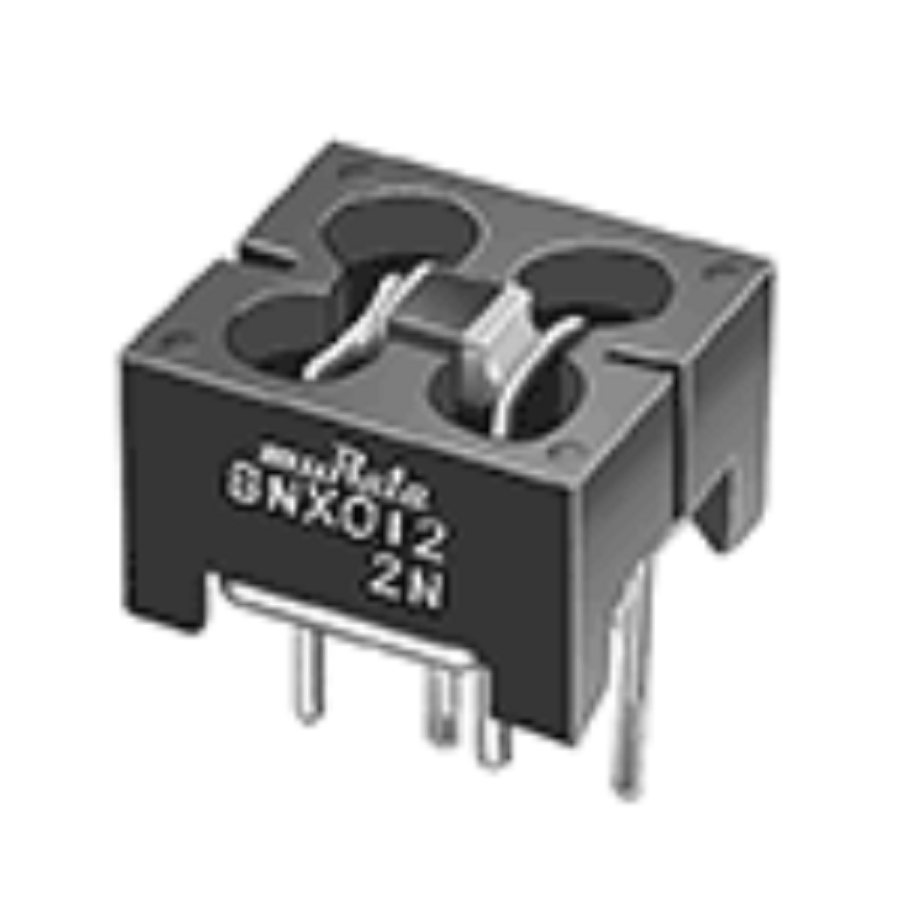

BNX012-01
Manufacturer:
Murata
Mfr.Part #:
BNX012-01
Datasheet:
Description:
EMI / RFI Filters Through Hole LC 5th 40 dB
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 12 mm |
| Width | 11 mm |
| Termination | PC Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 50 V |
| Height | 8 mm |
| Circuit Type | Filter |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 11 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Silver, Tin |
| Impedance | 50 Ω |
| Frequency | 1 MHz |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 15 A |
| Max Voltage Rating (DC) | 50 V |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Unshielded |
| Number of Channels | 2 |
| ESD Protection | No |
| Attenuation Value | 40 dB |
| Chemistry/Technology | LC |
| Filter Order | 5th |
Stock: 3211
Distributors
pcbx
pcbxUnit Price$2.47160
Ext.Price$2.47160
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.47160 | $2.47160 |
| 10 | $2.10313 | $21.03130 |
| 25 | $1.82100 | $45.52500 |
| 50 | $1.80219 | $90.10950 |
| 100 | $1.69618 | $169.61800 |
| 300 | $1.57050 | $471.15000 |
| 500 | $1.50368 | $751.84000 |
| 1000 | $1.43970 | $1439.70000 |
