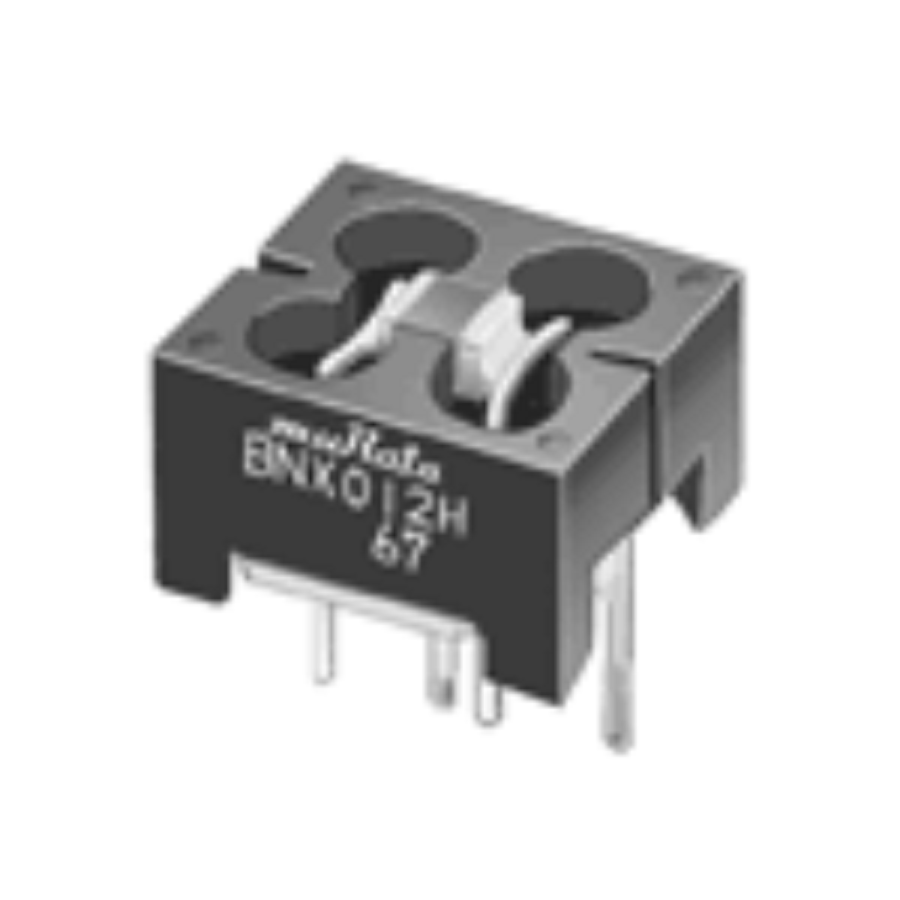

BNX012H01
Manufacturer:
Murata
Mfr.Part #:
BNX012H01
Datasheet:
Description:
EMI / RFI Filters Through Hole LC 5th 1 µF 40 dB
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Voltage Rating (DC) | 50 V |
| Length | 12 mm |
| Width | 10.9982 mm |
| Termination | PC Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 8.5 mm |
| Circuit Type | Filter |
| Packaging | Bulk |
| Voltage Rating | 50 V |
| Depth | 11 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Silver, Tin |
| Frequency | 500.5 MHz |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 15 A |
| Max Voltage Rating (DC) | 50 V |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Number of Channels | 2 |
| ESD Protection | No |
| Attenuation Value | 40 dB |
| Chemistry/Technology | LC |
| Filter Order | 5th |
Stock: 2088
Distributors
pcbx
pcbxUnit Price$3.49837
Ext.Price$3.49837
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.49837 | $3.49837 |
| 10 | $3.01020 | $30.10200 |
| 25 | $2.77852 | $69.46300 |
| 50 | $2.60924 | $130.46200 |
| 100 | $2.34080 | $234.08000 |
| 300 | $2.19631 | $658.89300 |
| 500 | $2.19033 | $1095.16500 |
