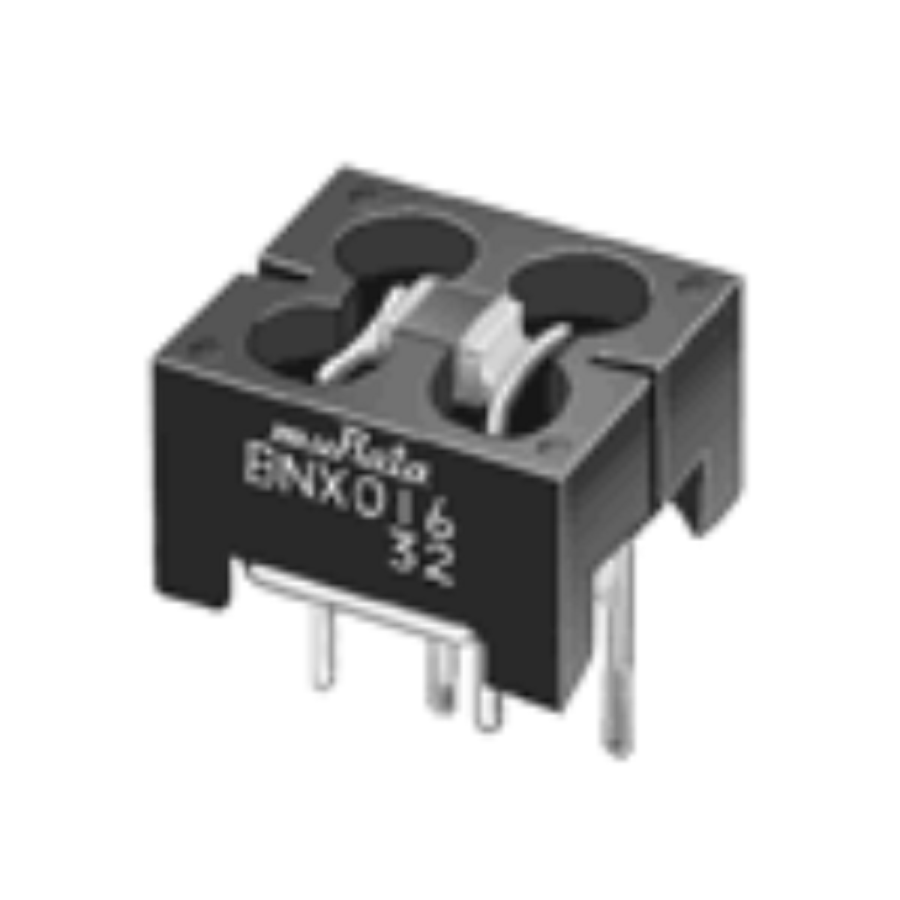

BNX016-01
Manufacturer:
Murata
Mfr.Part #:
BNX016-01
Datasheet:
Description:
EMI / RFI Filters Plugin Through Hole LC 5th 40 dB
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 25 V |
| Length | 12 mm |
| Width | 11 mm |
| Termination | PC Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 25 V |
| Height | 8 mm |
| Circuit Type | Filter |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Depth | 11 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Silver, Tin |
| Impedance | |
| Frequency | 100 kHz |
| Current | 15 A |
| Current Rating | 15 A |
| DC Resistance (DCR) | |
| Max Current Rating | 15 A |
| Max Voltage Rating (DC) | 25 V |
| Shielding | Unshielded |
| Number of Channels | 2 |
| Number of Lines | |
| ESD Protection | No |
| Attenuation Value | 40 dB |
| Chemistry/Technology | LC |
| Filter Order | 5th |
Stock: 2648
Distributors
pcbx
pcbxUnit Price$2.08666
Ext.Price$2.08666
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.08666 | $2.08666 |
| 10 | $1.78944 | $17.89440 |
| 25 | $1.65984 | $41.49600 |
| 50 | $1.53963 | $76.98150 |
| 100 | $1.42813 | $142.81300 |
| 300 | $1.38374 | $415.12200 |
| 500 | $1.34073 | $670.36500 |
| 1000 | $1.30242 | $1302.42000 |
